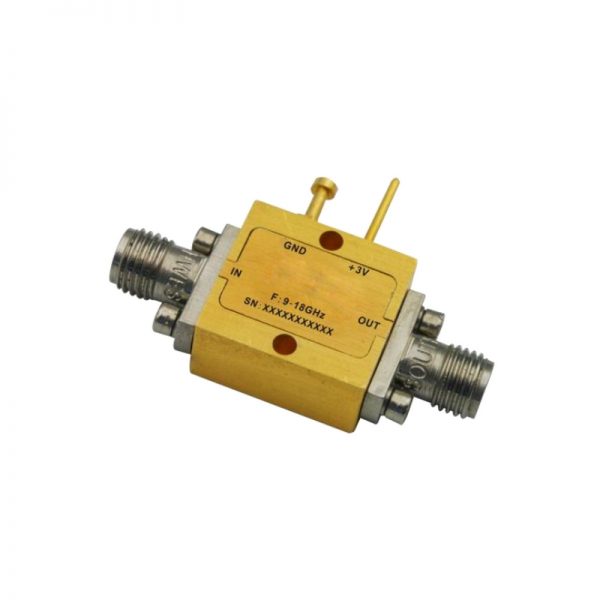

Ultra Wide Band Low Noise Amplifier From 9GHz to 18GHz With a Nominal 20dB Gain NF 2dB SMA Connectors

Ultra Wide Band Low Noise Amplifier From 9GHz to 18GHz With a Nominal 20dB Gain NF 2dB SMA Connectors

0 out of 5

• Gain: 20dB Typical
• Noise Figure: 2.0dB Typical
• P1dB Output Power: 15dBm Typical
• Supply Voltage: +3V @ 65mA
• 50 Ohm Matched Input / Output
• Size:0.63” x0.67” x 0.32”

SKU: OLNA209001800A Categories: Low Noise Amplifier, Passive Devices

Description

Key Specifications

• Gain: 20dB Typical
• Noise Figure: 2.0dB Typical
• P1dB Output Power: 15dBm Typical
• Supply Voltage: +3V @ 65mA
• 50 Ohm Matched Input / Output
• Size:0.63” x0.67” x 0.32”



Data Sheet ( Download Datasheet PDF )

039-OLNA209001800A



Applications

• Wireless Infrastructure
• RF Microwave & VSAT
• 5G communicationFiber Optics
• Test and measurement Instrument

Additional information

Min. Pass Band Frequency (GHz)

9

Max. Pass Band Frequency (GHz)

18

Gain (dB)

20

NF (dB)

2

P1dB (dBm)

15

IP3 (dBm)

26

VSWR

1.5

"Voltage (VDC)"

3

"Current (mA)"

65

Connection Type

SMA
