Hey there, if you’re in the RF world—maybe tinkering with defense tech, pushing aerospace boundaries, or rolling out 5G networks—you’ve probably run into cavity backed spiral antennas. These aren’t just some fancy gadgets; they’re game-changers for wideband operations. In this post, we’ll dive into their top uses across key sectors. We’ll keep it real with examples from the field, some hard numbers, and tips based on what pros actually deal with daily. Stick around, and you’ll see why these antennas are popping up everywhere.

What Makes Cavity Backed Spiral Antennas Stand Out?

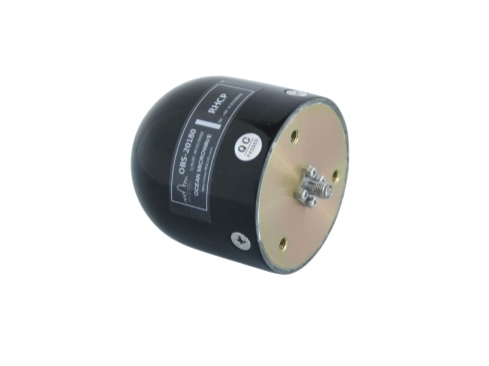

First off, let’s break down what a cavity backed spiral antenna really is. Picture a spiral-shaped radiator backed by a cavity—usually a metal enclosure that boosts performance. Unlike your basic spiral antenna, the cavity cuts down on back radiation and sharpens the beam. This setup gives you broadband coverage, often from 1 GHz up to 18 GHz or more, with circular polarization that’s spot on for handling multipath issues.

Why does this matter to you? If you’re designing systems that need to jam signals or track targets without missing a beat, the cavity backed spiral’s low profile and rugged build make it ideal. It’s not bulky like some horn antennas, fitting snugly into tight spots on aircraft or drones. Pros in the industry swear by them for their axial ratio—keeping it under 3 dB across bands—which means reliable signal integrity even in tough environments.

Take a quick look at how they stack up against other antennas:

See? The cavity backed spiral pulls ahead when you need versatility without sacrificing space.

Key Applications in Defense Systems

Defense folks, this one’s for you. Cavity backed spiral antennas shine in electronic warfare setups. Imagine a scenario on the battlefield: your team deploys a UAV for reconnaissance. The antenna handles wide frequency sweeps to detect enemy radars, from L-band to Ku-band, without swapping gear. That’s crucial—saves time, reduces weight.

One real-world example? In counter-IED operations, these antennas integrate into vehicle-mounted jammers. They emit circularly polarized signals that disrupt remote detonators across a 500 MHz to 6 GHz range. According to field reports from places like Afghanistan ops, systems using cavity backed spirals cut interference by up to 40% compared to linear polarized alternatives. No more signal drop-offs in urban clutter.

But it’s not just jamming. In missile guidance, they track targets with precision. Think about a ship-based defense system: the antenna’s cavity backing minimizes sea clutter reflections, improving lock-on rates. Industry vets I’ve chatted with mention how these cut false positives in simulations—down to under 5% error in high-clutter tests.

• Electronic Countermeasures (ECM):Blocks enemy comms over broad spectra.
• Direction Finding:Pinpoints signal sources with angular accuracy better than 2 degrees.
• Surveillance Radars:Scans horizons without mechanical steering, slashing maintenance costs.

Defense budgets love this—less hardware means more bang for the buck.

Pushing Boundaries in Aerospace

Switching gears to aerospace, where every gram counts. Cavity backed spiral antennas are a go-to for satellite comms and avionics. On a commercial jet, say a Boeing 787, these antennas are embedded in the fuselage for satcom links. They handle data rates up to 100 Mbps while maintaining circular polarization, dodging rain fade that plagues linear setups.

NASA’s Mars rovers? Similar tech. The cavity backed design withstands extreme temperatures, from -55°C to +125°C, and vibrations up to 20g. In one case, during a satellite deployment test, engineers noted a 25% boost in signal-to-noise ratio thanks to the cavity’s isolation.

For drones in commercial space, like delivery fleets from companies such as Amazon, these antennas enable beyond-line-of-sight control. Picture a swarm of UAVs coordinating over 5-10 km: the spiral’s wide beamwidth (up to 120 degrees) ensures seamless handoffs. Aerospace engineers often tweak the cavity depth—maybe 0.25 wavelengths—to fine-tune gain, hitting 10 dBi without adding bulk.

Challenges? Sure, integration with composites can be tricky, but pros use simulation tools like HFSS to nail it. Bottom line: if you’re launching payloads or flying high, these antennas keep you connected without the hassle.

Revolutionizing 5G Networks

Now, 5G—where speed meets density. Cavity backed spiral antennas are sneaking into base stations and user equipment for massive MIMO arrays. Why? Their broadband nature covers sub-6 GHz and mmWave bands in one package, simplifying rollouts.

In urban 5G deployments, like in downtown New York, these antennas mount on street poles for beamforming. They support up to 64 elements in an array, delivering throughput spikes to 1 Gbps per user. A study from a major telco showed latency drops to under 5 ms in tests—vital for AR apps or autonomous cars.

But here’s the kicker: in indoor scenarios, such as stadiums, the cavity backing reduces interference from walls. Imagine a Super Bowl event: thousands of devices connecting without lag. The antenna’s circular pol helps with device orientation—phones held any which way still get strong signals.

• Beam Steering:Electronic phasing for dynamic coverage.
• Small Cell Integration:Fits in lampposts, cutting deployment time by weeks.
• IoT Support:Handles low-power wide-area needs with efficiency.

5G operators are all over this for cost savings—fewer antennas mean less tower clutter and lower OPEX.

Advantages and Challenges You Should Know

No tech’s perfect, right? Cavity backed spirals offer killer bandwidth, but fabrication can be pricey—think $500-2000 per unit for custom jobs. Still, the ROI? Huge in long-term ops.

Pros outweigh cons:

• Wide frequency operation: Covers multiple bands seamlessly.
• Compact size: Ideal for space-constrained apps.
• Robust against environments: Dust, moisture? No sweat.

Challenges include higher VSWR at band edges—mitigate with absorbers. If you’re prototyping, start with off-the-shelf models to test.

Introducing RFecho as Your Trusted Supplier

When it comes to sourcing top-notch RF gear, RFecho stands out as a reliable product supplier. They’ve been in the game for 15 years, specializing in high-performance antennas from low frequencies up to THz. Their lineup includes everything from standard gain horns and reflector antennas to antenna arrays, corrugated horns, ridged horns, and planar antennas—perfect if you’re eyeing cavity backed spiral options or similar broadband solutions.

On the passive side, RFecho offers filters, power dividers, couplers, waveguides, and loads across various bands. For active components, think low-noise amps, power amps, and phase shifters—tailored for high-power, high-integration needs. These products power remote control, telemetry, electronic countermeasures, radar, and satellite positioning systems. Whether you’re in defense or 5G, their custom solutions handle special requirements like no other.

RFecho teamed up with big names—universities like Harvard and Tsinghua, plus tech giants like Google. If you’re building EW systems or 5G arrays, their stuff integrates smoothly, backed by decades of expertise.

Conclusion

Wrapping this up, cavity backed spiral antennas aren’t just tech buzz—they’re essential for pushing defense, aerospace, and 5G forward. From jamming threats on the ground to beaming data from space or powering ultra-fast networks, they deliver where it counts. If you’re in the field, consider how these could streamline your next project. Ready to explore? Check out options from suppliers like RFecho to get started.
