Cavity Band Pass OBP-3175-50

Cavity Band Pass OBP-3175-50

Ocean Microwave band-pass filter (Ocean band-pass filter,abbreviation:OBP) is a filter that allows waves of specific frequency band to pass through while rejecting other frequency bands.
The product name of this Ocean band-pass filter (OBP) is OBP-3175-50,its Center Frequency(F0) is 3175MHz, its Pass Band Bandwidth is 3150~3200MHz, its Pass Band
InsertionLoss is≤2.0dB, and its PassBand VSWR is≤1.3:1.

SKU: OBP-3175-50 Categories: ,

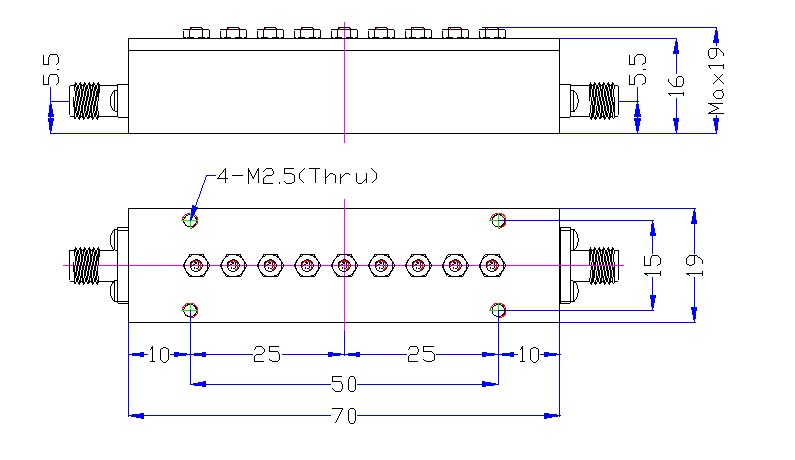

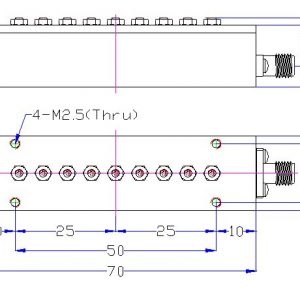

OBP 3175 50 outline Cavity Band Pass OBP-3175-50

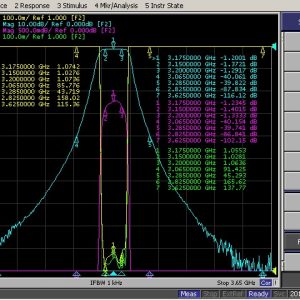

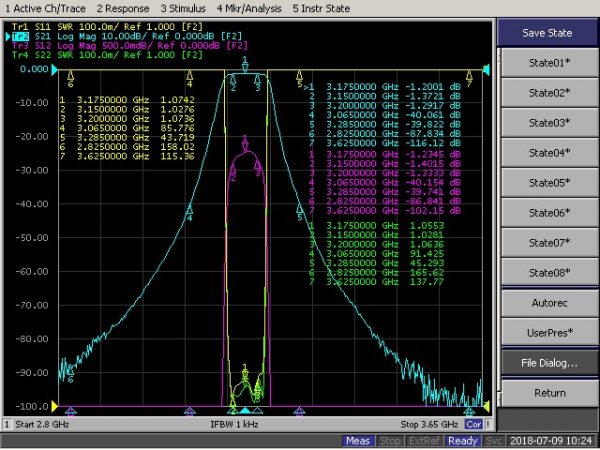

OBP 3175 50 plot1 Cavity Band Pass OBP-3175-50

Additional information

Center Frequency (F0) (MHz)

Min. Pass Band Frequency (MHz)

Max. Pass Band Frequency (MHz)

Pass Band Insertion Loss (dB)

Stop Band Rejection

Impedance (Ω)

Power Handling (W)

Connection Type
