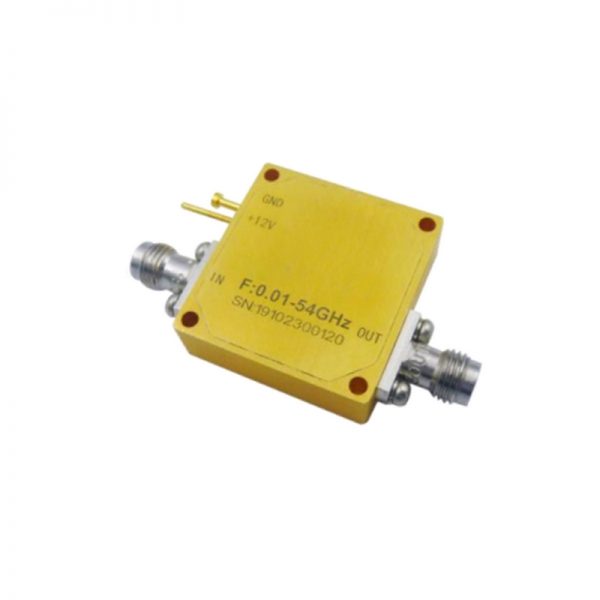

Ultra Wide Band Low Noise Amplifier From 0.01GHz to 54GHz With a Nominal 36dB Gain NF 4dB 2.4mm Connectors

Ultra Wide Band Low Noise Amplifier From 0.01GHz to 54GHz With a Nominal 36dB Gain NF 4dB 2.4mm Connectors

• Gain:36dB Typical
• Noise Figure: 4.0dB Typical
• P1dB Output Power:13dBm Typical
• Supply Voltage: +12V @280mA
• 50 Ohm Matched

SKU: OLNA300015400A Categories: Low Noise Amplifier, Passive Devices

Description

Key Specifications

• Gain:36dB Typical
• Noise Figure: 4.0dB Typical
• P1dB Output Power:13dBm Typical
• Supply Voltage: +12V @280mA
• 50 Ohm Matched



Data Sheet ( Download Datasheet PDF )

124-OLNA300015400A



Applications

• Wireless Infrastructure
• RF Microwave & VSAT
• 5G communicationFiber Optics
• Test and measurement Instrument

Additional information

Min. Pass Band Frequency (GHz)

0.01

Max. Pass Band Frequency (GHz)

54

Gain (dB)

36

NF (dB)

4

P1dB (dBm)

13

IP3 (dBm)

21

VSWR

1.5

"Voltage (VDC)"

'+15V

"Current (mA)"

280

Connection Type

2.4mm
