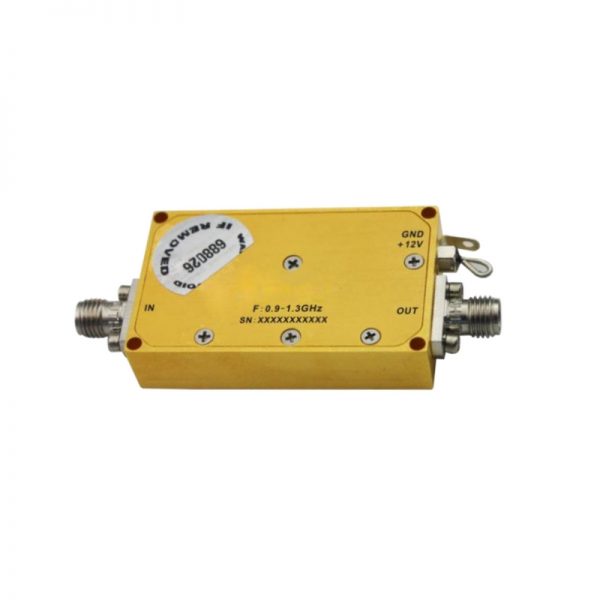

Ultra Wide Band Low Noise Amplifier From 0.9GHz to 1.3GHz With a Nominal 39dB Gain NF 1.2dB SMA Connectors

Ultra Wide Band Low Noise Amplifier From 0.9GHz to 1.3GHz With a Nominal 39dB Gain NF 1.2dB SMA Connectors

0 out of 5

• Gain: 39dBTypical
• Noise Figure:1.2dBTypical
• P1dB Output Power: +26dBmTypical
• Supply Voltage: +12V @ 310mA
• 50 Ohm Matched Input / Output
• Size: 1.77x 1.06” x 0.39”

SKU: OLNA100900130A Categories: Low Noise Amplifier, Passive Devices

Description

Key Specifications

• Gain: 39dBTypical
• Noise Figure:1.2dBTypical
• P1dB Output Power: +26dBmTypical
• Supply Voltage: +12V @ 310mA
• 50 Ohm Matched Input / Output
• Size: 1.77x 1.06” x 0.39”



Data Sheet ( Download Datasheet PDF )

029-OLNA100900130A



Applications

• Wireless Infrastructure
• RF Microwave & VSAT
• 5G communicationFiber Optics
• Test and measurement Instrument

Additional information

Min. Pass Band Frequency (GHz)

0.9

Max. Pass Band Frequency (GHz)

1.3

Gain (dB)

39

NF (dB)

1.2

P1dB (dBm)

26

IP3 (dBm)

35

VSWR

1.8

"Voltage (VDC)"

12

"Current (mA)"

300

Connection Type

SMA
