What is a Cavity Backed Spiral Antenna and How Does It Work？

Understanding the Basics of Antennas

What is an Antenna?

An antenna is basically a gadget that helps send or pick up waves. Think of it as a connector that links electrical signals to radio waves, making it possible for different systems to communicate with each other without being physically connected. This can be anything from the phone in your pocket to the radar equipment the military uses. At its core, an antenna’s job is to turn energy into radio waves and also to convert radio waves back into electrical energy.

Different Types of Antennas and Their Applications

Antennas come in all shapes and sizes. Each type has its own set of characteristics that make it better suited for certain jobs.

• Horn Antennas: Ideal for high-frequency applications like EMC testing.
• Dipole Antennas: Common in broadcasting and basic communication systems.
• Log Periodic Antennas: Used for wideband frequency coverage.
• Spiral Antennas: Known for circular polarization and wide bandwidth.
• Cavity Backed Spiral Antennas: Optimized for unidirectional radiation and high-performance wideband operations.

RFecho has a range of antennas on offer, from Wideband Horn and Dual Polarized Horn to more specialized types like SGH Log Periodic and GPS antennas. They also have Luneburg Lens and Cavity Backed Spiral Antennas in their lineup. This variety caters to needs, whether it, for commercial purposes or military applications.

What Makes a Cavity Backed Spiral Antenna Unique

The Role of the Cavity in the Design

A spiral antenna, suspended in space, has a unique property. It can broadcast signals in all directions but with a twist; the signal is circularly polarized and split into two beams that shoot out perpendicularly to the antennas surface.. What happens when you place this antenna over a special compartment filled with materials that absorb microwaves or lined with a reflective surface that conducts electricity perfectly? The antenna’s behavior changes dramatically. Of radiating signals, in all directions, it starts to focus its energy into a single beam, which greatly boosts its performance. This is because the compartment helps to eliminate signals that would otherwise bounce off in unwanted directions, creating interference and reducing the antenna’s overall effectiveness.

How the Cavity Enhances Performance

When it comes to keeping polarization purity intact, one effective approach is to fill the cavity with materials that absorb microwaves. This can be done fully or partially. Partial filling is often the way to go since it helps to dampen the currents that might otherwise bounce back and cause problems at the ends of the arms all while still allowing for efficient radiation.

Working Principles of a Cavity Backed Spiral Antenna

Electromagnetic Operation and Radiation Pattern

Cavity backed spiral antennas work in a straightforward way. They use the spiral arms to carry a current that moves in a wave-like pattern. This movement creates a polarized field, kind of like a spinning top. The backing cavity then steps in steering this field so it projects outward in one direction forming a beam. It’s a design, especially useful when you need to send signals over a long distance to a specific point.

Frequency Range and Bandwidth Capabilities

These RFecho’s antennas really stand out when it comes to handling a range of frequencies. Take this for instance;

A lot of work has gone into creating antennas with cavities behind them, which are really good at producing circular polarization signals that stay strong over a huge range of frequencies.

Polarization Characteristics

The way a signal is polarized makes a big difference. Circular polarization, in particular, is important because it lets devices receive signals steadily no matter how they’re positioned. This also turns out to be really helpful in environments where signals can bounce around and get distorted, cutting down on something called multipath fading.

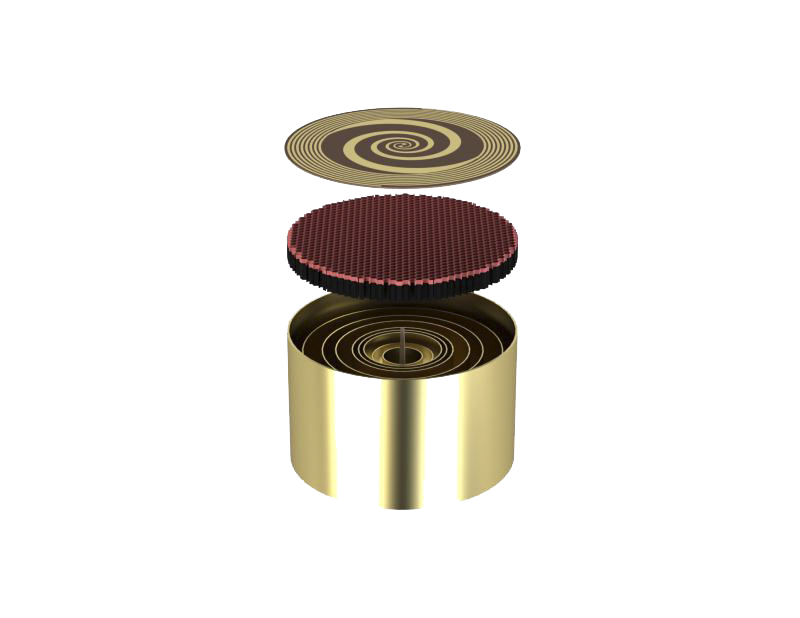

Key Components and Structure of a Cavity Backed Spiral Antenna

The Spiral Element Design

The spiral itself can take on various geometries, such as Archimedean or logarithmic spirals. These designs determine how uniformly current is distributed across the arms—impacting gain and bandwidth.

The Ground Plane and Backing Cavity

The ground plane acts like a mirror for waves, and the cavity makes sure that any radiation heading backwards is either absorbed or sent forward again. This boosts the strength without mixing up the different polarizations so the purity of the polarization is preserved.

Feed Mechanism and Impedance Matching

To get a signal, most systems use something called a balun, which helps keep everything in balance. This balun makes sure that the impedance. Think of it like the resistance. Is just right whether the frequency is high or low. Basically, it stops signals from bouncing forth, so more of the power actually gets through, making the whole thing work more efficiently.

Applications of Cavity Backed Spiral Antennas

Use in Military and Defense Systems

These antennas have found a home in a variety of applications from countermeasures and direction finding to surveillance systems and secure satellite communications, largely because they can withstand the toughest environments.

Devices that rely on control like those used for tracking or monitoring, as well as systems, for disrupting enemy communications, gathering electronic intel, and transferring data, often get a big boost from using a specific design. A spiral configuration backed by a cavity.

Integration in Communication Systems

Imagine you’re on a call and your plane hits turbulence. The signals are going to drop right?. What if it didn’t? Circular polarization is one reason we don’t lose the connection. It doesn’t matter if you’re talking on your phone near a cell tower or communicating with a satellite from an airplane. Long as you’ve got circular polarization the signal will stay strong even if your device is moving around.

These days, with all the advancements in satellites, there’s a growing need for aircraft to be able to communicate directly with a tracking satellite that’s passing overhead, no matter where it is in relation to the plane’s direction of travel.

Relevance in Radar and Sensing Technologies

The fact that these systems can operate across a range of frequencies makes them really useful for modern radar. Technology has come a long way, allowing for high-resolution images to be created. This is vital for monitoring the weather, where small details can make a big difference. But it’s not just weather forecasting where this technology comes in handy its also used in car safety systems like those that help prevent collisions.

FAQ

Q: What is the main purpose of a cavity backed spiral antenna?

A: It’s mainly used to send out polarized signals in one direction across a bunch of frequencies while keeping those pesky back lobes low. The cavity backing sucks up extra radiation to stop it from going the wrong way, so you get a clean signal.

Q: How does the cavity improve antenna performance?

A: The cavity, stuffed with stuff that absorbs radiation, cuts down on stray signals. It can also have a reflective piece to redirect incoming waves, helping the spiral antenna do its job better.

Q: Can a cavity backed spiral antenna be used for wideband applications?

A: Yes. These antennas are awesome for wideband stuff, giving steady circular polarization (CP) signals from just under 1 GHz all the way up to 26 GHz in the Ka band.

Q: Is it suitable for compact or portable devices?

A: At lower frequencies, it’s a bit big, so it’s better for larger gear. But when you go above 6 GHz, the wavelengths get small enough to make it work for smaller, portable devices.

Q: How does it differ from other types of antennas, like patch or dipole?

A: Patch and dipole antennas are kind of picky, working well only for certain polarizations and smaller frequency ranges. The cavity backed spiral antenna, though, handles a wider range of frequencies and can switch up polarization more easily.
