A Background to Microwave Cavity Filters

What is a Microwave Cavity Filter

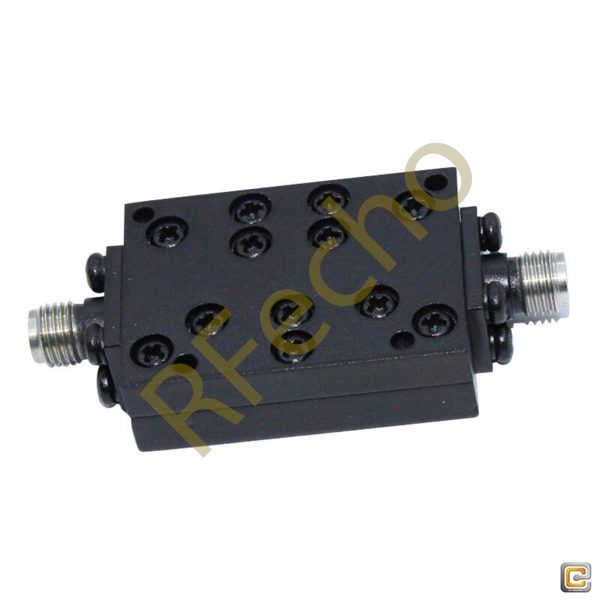

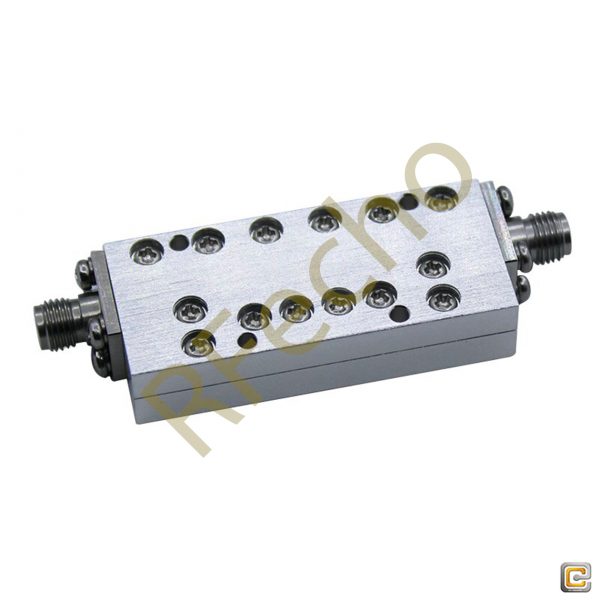

A microwave cavity filter is a high-performance RF device that selectively permits or prevents specific ranges of frequencies within the microwave frequency range to pass through. The filters utilize resonant cavities to ensure precise frequency control and superior performance features compared to other filters. Cavity bandpass filters are one of the products in a wide variety of RFecho‘s coaxial RF filters. The fundamental principle of cavity filters is that they can create standing wave patterns in enclosed metal cavities, thus enabling very selective filtering of frequencies with minimal insertion loss.

How Do RFecho Cavity Filters Work

RFecho cavity filters work by utilizing resonant electromagnetic modes in precisely machined metal cavities. After inserting the RF energy into the cavity, only that frequency that matches the resonant characteristic of the cavity structure can pass through efficiently, and all undesired frequencies will be absorbed or reflected. This band-pass filter model with SMA connectors, N Male connectors, or N Female connectors operates within a range of 0.01 GHz to 67 GHz. The coupling between cavities and the precise dimension of every resonant chamber determine the bandwidth, center frequency, and selectivity characteristics of the filter.

Common Applications in RF Systems

Microwave cavity filters find wide applications in RF applications of all kinds. RF/microwave and millimeter-wave bandpass cavity filter modules and additional RF parts for radio, antenna, general use, other radio frequency component connections, manufacturing, test and measurement labs, military/defense, etc. These applications utilize the high-performance aspects cavity filters provide, particularly in harsh environments where signal integrity and frequency selectivity are of the highest concern.

Key Performance Specifications

Frequency Range and Bandwidth

The range of frequency is among the most significant specifications when selecting a microwave cavity filter. RFecho’s extensive family of products covers operating frequencies from 0.01 GHz to 67 GHz, providing solutions from HF communications to millimeter-wave systems. Bandwidth specifications determine how wide or narrow the passband will be, which directly affects the filter’s selectivity and the range of passing frequencies through the device.

Insertion Loss and Return Loss

Insertion loss measures the reduction in signal power during transmission through the filter, and return loss measures how well the filter is matched to the system impedance. Extremely low insertion loss, sometimes <1 dB in the passband for high-quality cavity filters, equates to minimal signal degradation. Return loss specifications, usually >20 dB, equate to a good impedance match and minimal signal reflection.

Power Handling Capabilities

Power handling capacity specifies the maximum RF power level that can be safely handled by the filter without damaging or degrading its performance. Microwave Cavity filters generally offer superior power handling compared to other filter technologies due to their rugged design and good heat-sinking characteristics. This makes them suitable for high-power applications in RF amplifier chains and transmitter systems.

Isolation and Selectivity

Isolation requirements define how effectively the filter rejects unwanted frequencies outside the passband. Selectivity is an indication of how steeply the filter rolls off from the passband to the stopband. Well-designed cavity filters can achieve isolation levels in excess of 60 dB, with very effective interference and spurious signal protection.

Design and Construction Considerations

Material Quality and Durability

The choice of material significantly affects the filter’s performance and longevity. High-quality cavity filters utilize precision-machined aluminum or brass housings with silver or gold plating to minimize losses and ensure long-term stability. The dielectric materials utilized in tuning elements must have stable properties across temperature and aging cycles.

Size, Shape, and Mounting Options

Physical size plays a significant role in system integration. Cavity filters are available today in a variety of form factors, from small surface-mount styles to larger rack-mountable housings. We also stock a large selection of other RF filter products that will ship from our warehouse the same day. Mounting styles vary from flange mounting, chassis mounting, and PCB mounting to accommodate different installation requirements.

Temperature Stability of the Filter

Temperature variations can affect the performance of RF filters by altering the cavity dimensions and the dielectric characteristics. High-performance cavity filters incorporate techniques of temperature compensation and use materials with low temperature coefficients so that consistent performance is maintained over operating temperature ranges. This is particularly important for outdoor mounting and aerospace applications.

System Compatibility Considerations

Matching to Existing RF Components

Filters must be integrated successfully by taking due care to ensure connector compatibility and impedance matching. Most RF systems are 50-ohm impedance, and cavity filters must maintain this characteristic impedance to prevent reflection and standing waves. RFecho is a professional producer of high-quality RF antennas with particular attention to horn antennas. The products are linearly polarized and made of materials like Al or Cu, and with an impedance of 50 ohms.

Connector Types and Port Configuration

The selection of connectors significantly impacts both mechanical and electrical performance. This SMA connector, N-Male connector, or N-Female connector band-pass filter design provides flexibility to meet various system specifications. SMA connectors offer the benefit of compact size for use in space-limited applications. N-type connectors are utilized for better power handling and lower VSWR in high-performance systems.

Tuning Options for Custom Requirements

Most systems require special frequency responses not provided by standard catalog items. Complex cavity filter designs incorporate frequency tuning mechanisms for adjustment during manufacturing or field installation. The tuning facilities offer optimization for the specific system requirements and compensation for component tolerances.

Compliance and Reliability Standards

Industry Certifications and Testing

High-quality cavity filters must meet various industry standards and certifications depending on their fields of application. For military and space applications, they must meet MIL-STD specifications, while commercial applications may demand FCC or CE certification. Rigorous test procedures guarantee the verification of performance specifications, environmental tolerance, and long-term reliability.

Long-Term Reliability of RFecho Filters

RFecho’s commitment to quality ensures that their cavity filters offer predictable performance over extended operating lifetimes. Rigorous quality control processes, environmental testing, and burn-in procedures screen out any possible reliability risks before them being able to impact customers. This reliability focus reduces maintenance cost and system downtime in vital systems.

Cost vs. Performance Trade-offs

Evaluating Price Against Specifications

When selecting cavity filters, engineers must balance performance requirements against cost. While high-performance filters command premium prices, their increased specifications generally make them a good value for demanding applications. Insertion loss, selectivity, power handling, and temperature stability directly impact system performance and must be traded off against cost.

Total Cost of Ownership Over Time

The true cost of a filter extends beyond its initial purchase price. Complexity of installation, maintenance requirements, frequency of replacement, and contribution to system performance are some of the elements that are part of ownership cost. Higher quality cavity filters can have a greater initial price but sometimes provide greater value over time through reduced maintenance and improved performance.

Choosing the Right RFecho Model

Comparing the Different RFecho Series Models

RFecho offers several series of products to fulfill different application requirements and performance levels. Product Categories: – Isolated DC-DC Power Converters (13) – Active Device, Power Amplifier, Routing (1) – RF Adapters (130) – RF Connectors (205) – RF Cables (667) – RF Filters (388) – Active Device (729) They offer a huge RF filter product line with 388 models, having a solution for nearly any microwave filtering requirement.

Customization Services Offered by RFecho

For applications requiring tailored performance specifications, RFecho provides full customization services. Some of the services include custom frequency response, special connectorizations, environmental hardening, and integration with other RF components. Our engineering team works with customers to develop optimized solutions that meet precise system requirements at low cost.

FAQ

Q: What are the frequency ranges that RFecho cavity filters support?

A: RFecho coaxial RF filters ranging from 0.01 GHz to 67 GHz provide a complete series for most microwave applications.

Q: What are the types of connectors available?

A: SMA connectors, N Male connectors, or N Female connectors are the standard types we provide, and other custom connector types can be delivered as needed.

Q: How quickly can I receive RFecho filter products?

A: We also stock a broad range of other RF filter products that will ship the same day from our warehouse.

Q: What do you use these filters for?

A: RF/microwave and millimeter-wave bandpass cavity filter devices and other RF devices for radio, antenna, other radio frequency component interconnects in general use, production, test, and measurement laboratories, military/defense, etc.
