What is an Antenna?

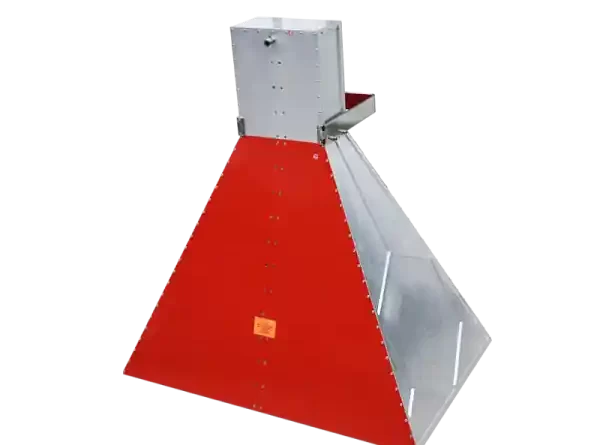

1 OBH-1025-2-600x600

What is an Antenna?

Antennas play a role in our modern connected world but often go unnoticed as the unsung heroes behind the technology we use every day. Like our cell phones and Wi-Fi routers! They help with sending and receiving energy for smooth wireless connectivity in our daily lives. This blog post aims to delve into the facets of antennas and their vital significance in our everyday experiences.

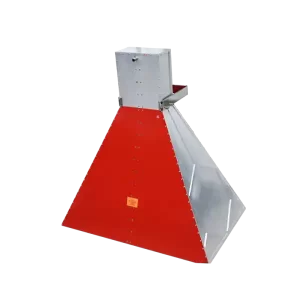

1 OBH-1025-2-600x600

Definition of Antenna

An antenna plays a role in connecting guided electromagnetic waves with the open space around us by acting as a link between them. It is typically made of metal. Is created to transmit or receive radio waves. An antenna can be likened to a converter that changes electrical signals into electromagnetic waves and back again. Without an antenna, the transmission of signals carrying information such as data, voice communication, and video would not be possible through the air.

The Basics of Antenna Functionality

The fundamental principle behind how an antenna works involves the flow of charges within its structure. When an antenna is supplied with a current it produces electromagnetic waves that travel outward. Conversely, if electromagnetic waves interact with an antenna it creates a current that can be interpreted by a receiver. This two-way feature is essential for the operation of communication systems allowing for the transmission and reception of wireless signals seamlessly.

Antennas as Transitional Structures

An antenna serves as a connection point between a transmission line or guiding tool and the surrounding atmosphere. It helps to transmit or receive energy through channels like coaxial cables or wave guides. The antenna then releases this energy into space. Gathers energy from space as it essentially acts as a mediator for electromagnetic waves. It plays a role in wireless systems by converting electromagnetic energy effectively for transmission or reception purposes.

Types of Antennas

OBHM-128-600x600

There are different kinds of antennas out there for specific uses and frequency ranges. You can categorize these designs. Each one has its special features that make it good for what it’s meant to be used for. Let’s explore some of the types.

Cavity Backed Spiral Antennas

They are frequency-independent antennas known for their wide band and circularly polarized operation. They are used in both commercial and military applications for direction finding. Spiral antennas consist of N-arm angular-defined wires or transmission lines. They radiate a bi-directional circularly polarized beam when isolated in free space. To achieve a unidirectional pattern, they are backed with a cavity, often containing an electromagnetic absorber or a perfect electromagnetic conductor (PEC) reflector. If using a PEC reflector, the distance between the antenna and the conductor is important to retain its CP performance. A partially filled cavity with microwave-absorbing material is often preferred to suppress reflected currents without disturbing the active region.

Conical Horn Antennas

They are aperture antennas featuring a hollow pipe with a flared opening. The type, direction, and amount of taper affects their performance. These antennas are used as feeds for reflectors and lenses, as probes for sampling power, or as receiving and transmitting antennas.

Dual Polarized Horn Antennas

They are also known as Quad-Ridged Horn Antennas, feature high gain and symmetric beams with dual linear polarization. They are made from a single piece of copper with ridges crossing at 90 degrees. Their cross-polarization isolation is typically lower than -30 dB. They are used as radar cross-section (RCS) antenna arrays and as feed antennas for Compact Antenna Test Ranges (CATR) or satellite reflector antennas. RFecho offers Dual Polarized Horn Antennas with frequencies ranging from 1GHz to 44GHz, gains from 8-20dBi, and N-type, 2.92mm, or SMA connectors.

Multi Octave Horn Antennas

They are wide band horn antennas designed to operate over a broad range of frequencies, covering multiple octaves. The Broadband Dual Ridged Horn Antenna is an example of a Multi Octave Horn Antenna due to its wide band operation.

SGH (Standard Gain Horn) Antennas

They are designed for specific frequencies. Millimeter SGH Antennas cover frequencies from 26.5GHz to 325GHz, with gains from 10dBi to 25dBi. Standard Gain Horn Antennas with Curve Edge from RFecho are manufactured using precision CNC integrated sections, which ensures accurate and reliable performance, with cross-polarization less than -40dB.

Stacked Logarithmic Periodic Antennas

They are widely used in wireless communication and RF applications, known for their wide band characteristics and uniform radiation pattern. They consist of paired metal elements arranged in a logarithmic periodic manner, allowing them to perform across multiple frequency ranges. They are used in wireless communications, television, and radio broadcasting, and in radar, UAV, and aerospace industries. Stacked Logarithmic Periodic Antennas use a stacked configuration to enhance performance.

Antenna Performance Parameters

To grasp the performance of an antenna effectively involves grasping essential factors that measure how well an antenna transmits or captures electromagnetic energy, such as radiation features like gain and directivity along with efficiency levels impedance and polarization.

Radiation Characteristics

The way an antenna emits energy into space is defined by its radiation pattern which can differ significantly depending on the antenna’s design and affect. The radiation pattern indicates how strong the signal is sent out in different directions from the antenna.

Impedance and Polarization

Matching the impedance of the antenna to that of the transmission line is essential for optimal power transfer efficiency because of the impedance represents antenna’s  resistance to current flow.

Understanding polarization involves assessing the alignment of the electric field aspect of a wave and its significance in maximizing signal transmission or reception and influencing the effectiveness of wireless connections.

Field Regions

The area around an antenna is usually split into three zones. The reactive nears r field is where energy is stored or radiated; the radiating, near field acts as a transition zone; and the far field where the radiated pattern becomes more consistent.

Antenna Applications

Antennas play a role in various applications where specific antenna features are essential for optimal functioning purposes; these applications vary from basic communication needs to intricate radar and satellite systems.

Wireless Communications

Antennas play a role in various wireless communication technologies such as cell phones and Wi-Fi by facilitating data transmission wirelessly without the need for physical connections; their design significantly impacts system performance.

Radar Systems

Radar systems depend on antennas to send and receive radio waves for spotting and monitoring objects efficiently; these systems commonly use high-gain antennas to ensure range and accuracy.

Satellite Communications

Satellite communication heavily relies upon antennas to facilitate data exchange among satellites and ground stations as well as inter-satellite communication channels; these antennas typically necessitate strong focus and signal amplification while being available in different forms and dimensions.

Other Applications

Antennas play a role in various fields such as radio and TV broadcasting and GPS navigation systems as well as in scientific research projects among others due to their versatility which makes them widespread in today’s world.

Understanding Antenna Bandwidth

Bandwidth plays a role in determining the frequency range an antenna can work across effectively. Various applications might call for bandwidth specifications with some antennas being engineered to cover broader frequency spectrums than others. There are two bandwidth types to take into account. The pattern bandwidth is influenced by factors, like gain levels and beam direction while impedance bandwidth is linked to input impedance and radiation efficiency.

RFecho: Your Reliable Antenna Supplier

If you need a supplier for top-notch antennas that work well in various situations and focus on quality and innovation, RFecho would be a good choice for you.

High-Performance Antennas from Low to THz Frequencies

RFecho focuses primarily on creating and enhancing high-performance antennas that cater to a range of frequencies spanning from the lower end up to THZ levels of frequency bands. Whether you work in frequency communication sectors or are involved in high frequency research areas, RFecho offers sophisticated antenna solutions to meet your needs.

Diverse Range of Antenna Types

RFecho offers a variety of antennas such as standard gain horns and reflector antennas along with compact antenna test range (CATR) feeds and antenna arrays among others to cater to the diverse needs of customers including customized solutions tailored to individual requirements.

This examination of antennas aims to enhance your comprehension of their function in wireless technology and how they support communication, navigation, and sensing in today’s society. Their varying designs and operational features place them at the core of engineering as a multifaceted field.
