GPS Antenna Buying Guide：What General Users Need to Understand

Understanding the Role of a GPS Antenna

What a GPS Antenna Does in a Navigation System

Your navigation gadget hooks up with satellites spinning around Earth using a GPS antenna. This little piece snags the radio signals those satellites blast out, then sends them to the receiver to pinpoint where you’re at. These antennas do their job well ‘cause they’re made to grab just the right frequencies for satellite navigation, giving you dead-on time and location details.

How Satellite Systems Like GPS, Galileo, and GLONASS Work with Antennas

Satellite navigation involves more than just GPS. These days, many systems can handle networks like the European one called GALILEO and the Russian system GLONASS. The way it works is that satellite positioning systems. Think GPS, GALILEO, and GLONASS. Transmit signals on different frequencies. By combining these systems, they can provide a more reliable signal and give more accurate readings.

To talk to satellite systems, your device needs an antenna that can pick up a bunch of different frequencies. For stuff like GPS, Galileo, and GLONASS, which all work together, the antenna’s gotta handle a wide range—from about 1.164 GHz to 1.610 GHz. That’s a 446 MHz spread, which is a pretty big deal.

Key Specifications to Consider When Buying a GPS Antenna

Frequency Range Compatibility

Coverage for GPS L1, L2, and L5 Bands

When picking out a GPS or GNSS antenna, the first thing to look at is its frequency range. For a basic GPS to work properly

• L1 Band: 1.575 GHz – used in most consumer devices.
• L2 Band: 1.227 GHz – often used in dual-frequency applications.
• L5 Band: 1.176 GHz – offers higher accuracy but requires compatible hardware.

Gain and Signal Strength Requirements

Why High Gain Matters in Spotty Signal Areas

In big cities with tons of skyscrapers or out in the sticks where hills and valleys go on forever, getting a decent signal is tough. All that terrain and concrete either blocks the signal or makes it super weak, so connecting can be a pain. That’s why high gain is a game-changer. It cranks up the signal strength, cutting through all the noise and barriers to give you a steady, reliable link.

When you’re trying to catch a satellite signal, your antenna’s gotta be sharp enough to snag the data. Pretty much, it needs enough gain to grab what the satellite’s sending your way.

Polarization and Directionality

Benefits of RHCP (Right-Hand Circular Polarization)

When satellites send out signals, they use a type of polarization called Right circular Polarization. This means the signal is essentially spinning in a direction. To get the possible reception, an antenna that matches this polarization is really important. It’s designed to align with the signal’s natural spin, which helps improve the overall quality of the signal that’s received.

Choosing Between Omnidirectional and Unidirectional Antennas

• Omnidirectionalantennas pick up signals from all directions — ideal for mobile or handheld devices.
• Unidirectionalantennas focus on one direction — useful for fixed installations with known satellite paths.

Types of GPS Antennas Available for General Use

Passive vs Active GPS Antennas

Differences in Power Requirements and Signal Amplification

• Passive antennasdon’t amplify signals; they rely entirely on receiver sensitivity.
• Active antennas, like those offered by RFecho atRFecho’s GPS Antenna lineup, include LNAs for enhanced performance.

Microstrip and Patch Antennas

Compact Designs for Portable Devices and Embedded Applications

Microstrip patch designs have become a staple in the industry. It’s easy to see why. Their flat profile makes them a perfect fit for smartphones or embedded modules in drones, where space is at a premium.

The goal here is to create an antenna that’s not powerful but also relatively small. To achieve this, a micro strip antenna is paired with a noise amplifier, resulting in a device thats both compact and high gain.

Matching the Right GPS GNSS Antenna to Your Application

Automotive and Marine Navigation Solutions

Durability and Mounting Considerations for Vehicles and Boats

When it comes to vehicles, like cars or boats, size really isn’t the important factor. What matters more is that they’re built to last, able to withstand handling and harsh conditions. In words, being tough and rugged is what really counts.

• Waterproof housing
• Vibration resistance
• Secure mounting options like magnetic bases or screw mounts

In lots of cases, things like radar systems and other similar technologies need certain characteristics to work properly.

Mobile Devices and Handheld Equipment

Importance of Compact Size and Lightweight Design

When it comes to devices, there’s a tricky balance to strike; they require antennas that are just as compact but without sacrificing any performance.

For a device that’s meant to be on the go, the antenna needs to be compact. Both in terms of its size and its overall shape.

Evaluating Build Quality and Environmental Resistance

Weatherproofing for Outdoor Use

When it comes to antennas, they need to be able to handle all sorts of rough conditions like rain, direct sunlight, and dust. To ensure they can hold up, look for ones with enclosures that have an IP rating.

Vibration Resistance for Vehicle Integration

When it comes to cars, those that spend a lot of time off road or in harsh marine environments, the ability to withstand vibrations is crucial for making sure things keep running smoothly over time. This is because constant shaking and jolting can really take a toll on a vehicles components, so being able to resist those stresses is key to long term reliability.

Integration with GNSS Systems Beyond GPS

Advantages of Using a gps gnss antenna Supporting Multiple Constellations

Having an antenna that can hook up to satellite systems is a total lifesaver for keeping things running smooth. If some satellites get blocked by buildings or hills, no sweat—the antenna just switches to another one it can still see. That way, you don’t get stuck with downtime, and everything keeps chugging along.

Better Accuracy with Multi-Frequency Pickup

Grabbing frequencies from different systems all at once helps a device figure out its spot super accurately. This is a big deal for things like surveying, where you gotta be dead-on, or for self-driving cars that need to know their exact location to cruise safely.

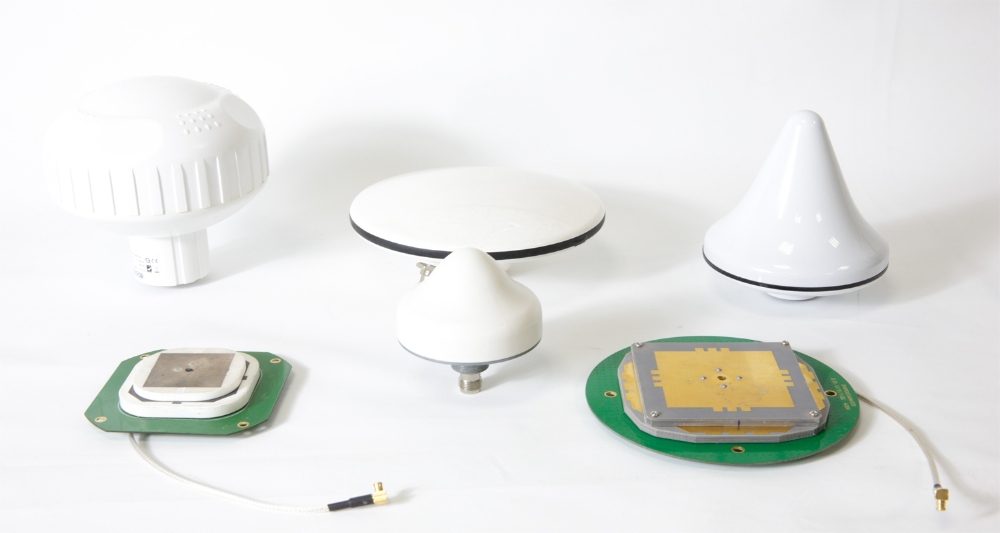

Popular Products from RFecho’s GPS Antenna Lineup

Overview of Aerial for GPS Options Offered by RFecho

RFecho offers a range of aerials for GPS, each one suited to a task. Some are designed to be built into devices, while others are tough enough to withstand the elements outdoors.

Active Compact Models with Built-in LNA Technology

At RFecho, we specialize in crafting top notch antennas that deliver performance. Our team has developed a line of active antennas that pack a punch, combining microstrip patches with built-in low noise amplifiers. These clever designs are perfectly suited for situations where space is at a premium, but outstanding performance is still a must.

Wideband Circularly Polarized Antennas for GNSS Compatibility

These antennas are designed with circular polarization, which makes them a good fit for various global navigation satellite systems, including GALILEO, GLONASS, and GPS. This compatibility is crucial for creating systems that won’t become outdated soon.

FAQ

Q: What’s up with GPS aerials versus GPS antennas?

A: They’re basically the same thing, just called different names depending on where you are. In Europe, they’re all about “aerial,” but most other places stick with “antenna.”

Q: Can I just plug a GPS GNSS antenna into my phone or tablet?

A: Only if your device is set up for it, like if it’s got an SMA or MCX plug or works with a USB receiver. Most phones and tablets? Yeah, they’re not built for hooking up antennas like that.

Q: Why pick an active antenna over a passive one for my setup?

A: If you’re in a spot with crummy signals—like a city full of buildings or out in the mountains—an active antenna’s your best bet. It’s got a little booster inside to juice up the signal so it comes through clearer.

Q: How do I know if my antenna’s good for stuff like GLONASS or Galileo?

A: Peek at the specs and see if it covers 1164 MHz to 1610 MHz. That’s the range you need to grab signals from all those different satellite systems.

Q: What should I check for when getting a GPS antenna for outdoor adventures?

A: Go for one that’s waterproof, can handle getting knocked around, has a few ways to stick it somewhere, and doesn’t mind crazy hot or cold weather. That’ll keep it working no matter how wild it gets outside.
