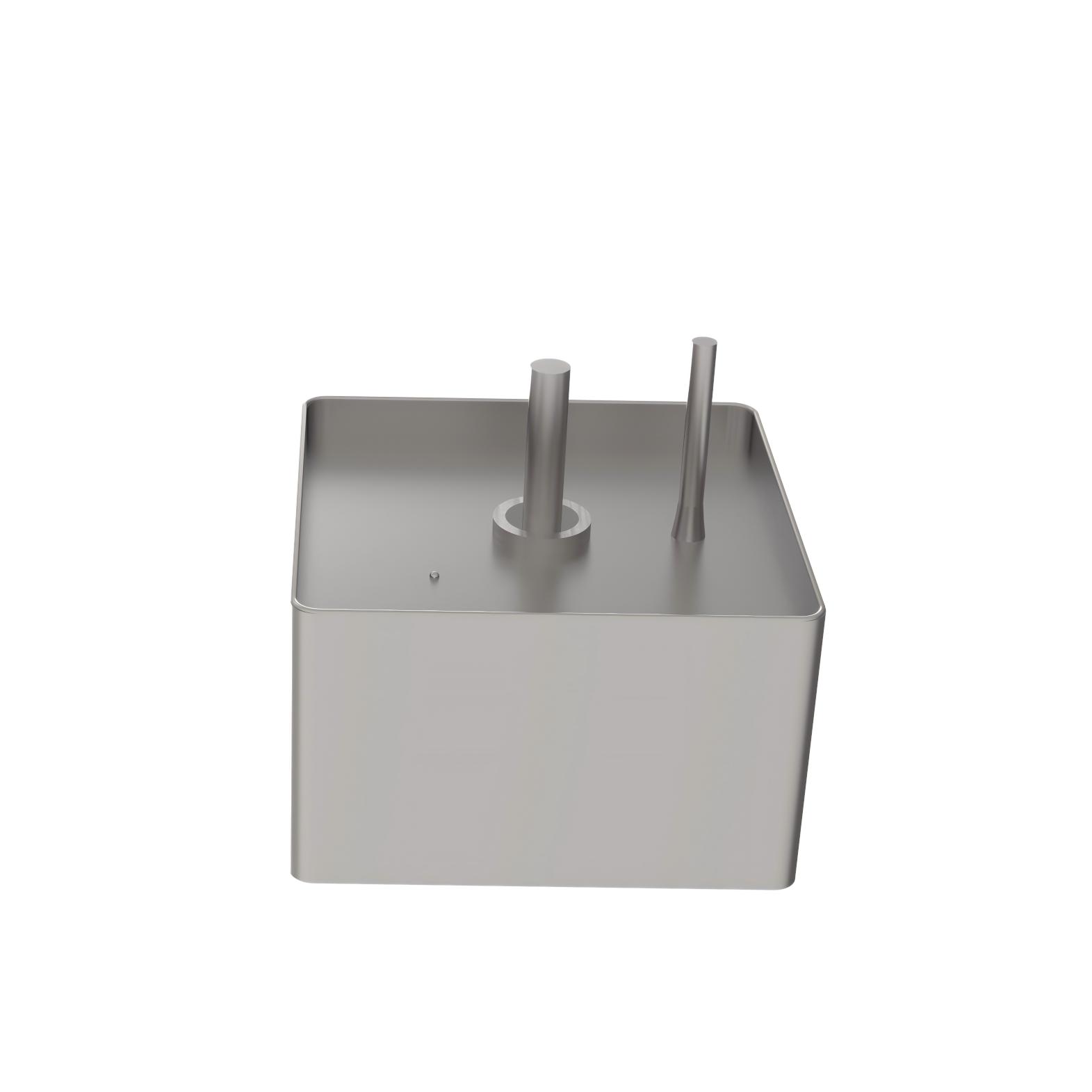

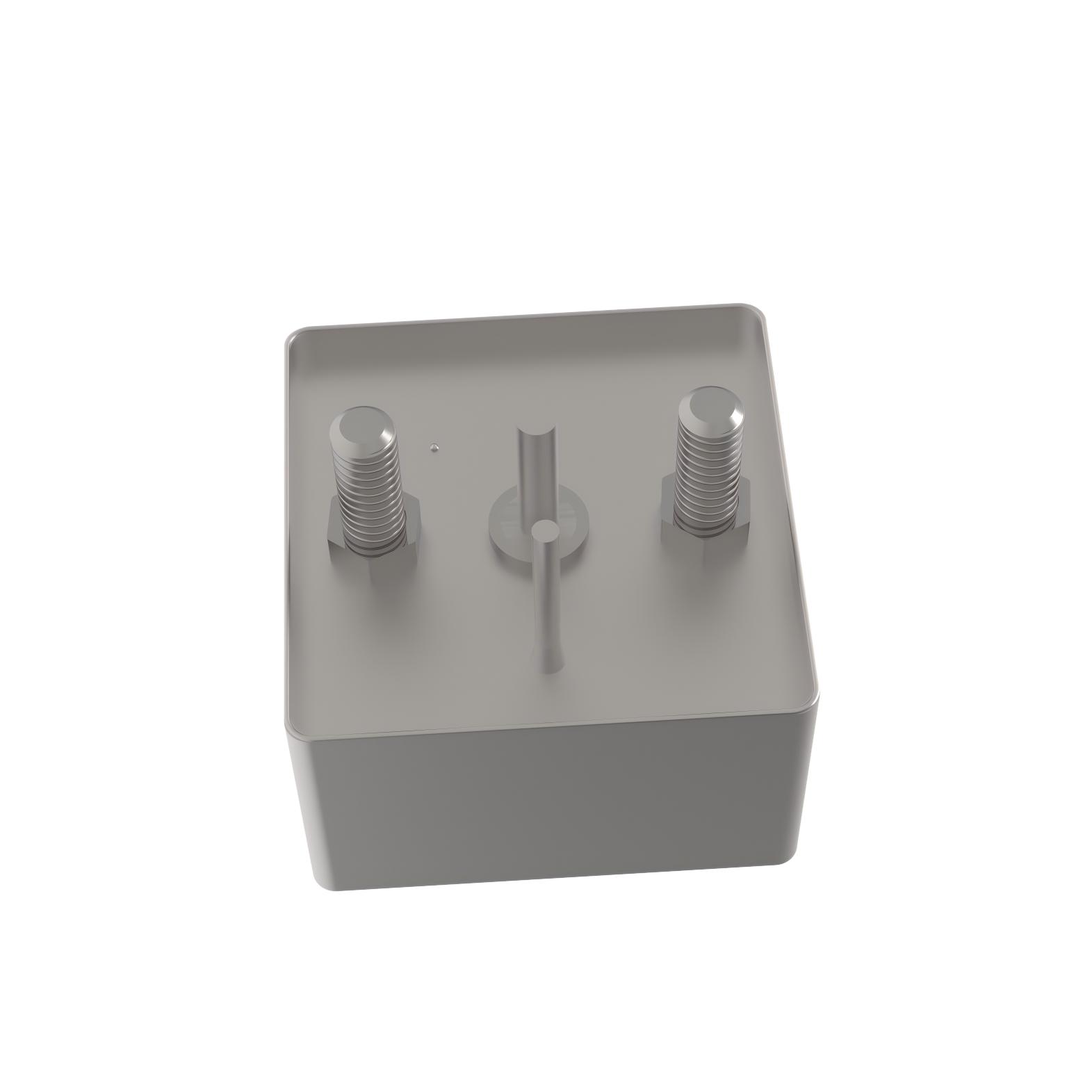

CAK36S Square High-Temperature (150degC) High-Energy Hybrid Tantalum Capacitor

Filterable Table

SKU	Rated Voltage (Ur)(V)	Category Voltage (Uc)(V)	Surge Voltage (Us)(V)	Capacitance (CR)(uf)	Case Type	Dimensions
CAK36S-10-45000-K-SE1-F	10	6	11	45000	F	L/W: 36+/-0.5 mm; H: 8+/-0.5 mm; D1: 10.16+/-0.38 mm
CAK36S-10-45000-K-SE1-G	10	6	11	45000	G	L/W: 36+/-0.5 mm; H: 8+/-0.5 mm; D1: 10.16+/-0.38 mm
CAK36S-10-60000-K-SE2-F	10	6	11	60000	F	L/W: 36+/-0.5 mm; H: 10+/-0.5 mm; D1: 10.16+/-0.38 mm
CAK36S-10-60000-K-SE2-G	10	6	11	60000	G	L/W: 36+/-0.5 mm; H: 10+/-0.5 mm; D1: 10.16+/-0.38 mm
CAK36S-10-90000-K-SE3-F	10	6	11	90000	F	L/W: 36+/-0.5 mm; H: 12+/-0.5 mm; D1: 10.16+/-0.38 mm
CAK36S-10-90000-K-SE3-G	10	6	11	90000	G	L/W: 36+/-0.5 mm; H: 12+/-0.5 mm; D1: 10.16+/-0.38 mm
CAK36S-10-135000-K-SE4-F	10	6	11	135000	F	L/W: 36+/-0.5 mm; H: 16+/-0.5 mm; D1: 10.16+/-0.38 mm
CAK36S-10-135000-K-SE4-G	10	6	11	135000	G	L/W: 36+/-0.5 mm; H: 16+/-0.5 mm; D1: 10.16+/-0.38 mm
CAK36S-10-180000-K-SE5-F	10	6	11	180000	F	L/W: 36+/-0.5 mm; H: 18+/-0.5 mm; D1: 10.16+/-0.38 mm
CAK36S-10-180000-K-SE5-G	10	6	11	180000	G	L/W: 36+/-0.5 mm; H: 18+/-0.5 mm; D1: 10.16+/-0.38 mm
CAK36S-10-180000-K-SE6-F	10	6	11	180000	F	L/W: 36+/-0.5 mm; H: 20+/-0.5 mm; D1: 10.16+/-0.38 mm
CAK36S-10-180000-K-SE6-G	10	6	11	180000	G	L/W: 36+/-0.5 mm; H: 20+/-0.5 mm; D1: 10.16+/-0.38 mm
CAK36S-10-225000-K-SE7-F	10	6	11	225000	F	L/W: 36+/-0.5 mm; H: 24+/-0.5 mm; D1: 10.16+/-0.38 mm
CAK36S-10-225000-K-SE7-G	10	6	11	225000	G	L/W: 36+/-0.5 mm; H: 24+/-0.5 mm; D1: 10.16+/-0.38 mm
CAK36S-16-9000-K-SC1-F	16	9.6	17.6	9000	F	L/W: 20+/-0.5 mm; H: 8+/-0.5 mm; D1: 6+/-0.38 mm
CAK36S-16-9000-K-SC1-G	16	9.6	17.6	9000	G	L/W: 20+/-0.5 mm; H: 8+/-0.5 mm; D1: 6+/-0.38 mm
CAK36S-16-11000-K-SC2-F	16	9.6	17.6	11000	F	L/W: 20+/-0.5 mm; H: 10+/-0.5 mm; D1: 6+/-0.38 mm
CAK36S-16-11000-K-SC2-G	16	9.6	17.6	11000	G	L/W: 20+/-0.5 mm; H: 10+/-0.5 mm; D1: 6+/-0.38 mm
CAK36S-16-18000-K-SC3-F	16	9.6	17.6	18000	F	L/W: 20+/-0.5 mm; H: 12+/-0.5 mm; D1: 6+/-0.38 mm
CAK36S-16-18000-K-SC3-G	16	9.6	17.6	18000	G	L/W: 20+/-0.5 mm; H: 12+/-0.5 mm; D1: 6+/-0.38 mm
CAK36S-16-27000-K-SC4-F	16	9.6	17.6	27000	F	L/W: 20+/-0.5 mm; H: 16+/-0.5 mm; D1: 6+/-0.38 mm
CAK36S-16-27000-K-SC4-G	16	9.6	17.6	27000	G	L/W: 20+/-0.5 mm; H: 16+/-0.5 mm; D1: 6+/-0.38 mm
CAK36S-16-33000-K-SC5-F	16	9.6	17.6	33000	F	L/W: 20+/-0.5 mm; H: 18+/-0.5 mm; D1: 6+/-0.38 mm
CAK36S-16-33000-K-SC5-G	16	9.6	17.6	33000	G	L/W: 20+/-0.5 mm; H: 18+/-0.5 mm; D1: 6+/-0.38 mm
CAK36S-16-36000-K-SC6-F	16	9.6	17.6	36000	F	L/W: 20+/-0.5 mm; H: 20+/-0.5 mm; D1: 6+/-0.38 mm
CAK36S-16-36000-K-SC6-G	16	9.6	17.6	36000	G	L/W: 20+/-0.5 mm; H: 20+/-0.5 mm; D1: 6+/-0.38 mm
CAK36S-16-35000-K-SE1-F	16	9.6	17.6	35000	F	L/W: 36+/-0.5 mm; H: 8+/-0.5 mm; D1: 10.16+/-0.38 mm
CAK36S-16-35000-K-SE1-G	16	9.6	17.6	35000	G	L/W: 36+/-0.5 mm; H: 8+/-0.5 mm; D1: 10.16+/-0.38 mm
CAK36S-16-45000-K-SE2-F	16	9.6	17.6	45000	F	L/W: 36+/-0.5 mm; H: 10+/-0.5 mm; D1: 10.16+/-0.38 mm
CAK36S-16-45000-K-SE2-G	16	9.6	17.6	45000	G	L/W: 36+/-0.5 mm; H: 10+/-0.5 mm; D1: 10.16+/-0.38 mm
CAK36S-16-70000-K-SE3-F	16	9.6	17.6	70000	F	L/W: 36+/-0.5 mm; H: 12+/-0.5 mm; D1: 10.16+/-0.38 mm
CAK36S-16-70000-K-SE3-G	16	9.6	17.6	70000	G	L/W: 36+/-0.5 mm; H: 12+/-0.5 mm; D1: 10.16+/-0.38 mm
CAK36S-16-105000-K-SE4-F	16	9.6	17.6	105000	F	L/W: 36+/-0.5 mm; H: 16+/-0.5 mm; D1: 10.16+/-0.38 mm
CAK36S-16-105000-K-SE4-G	16	9.6	17.6	105000	G	L/W: 36+/-0.5 mm; H: 16+/-0.5 mm; D1: 10.16+/-0.38 mm
CAK36S-16-135000-K-SE5-F	16	9.6	17.6	135000	F	L/W: 36+/-0.5 mm; H: 18+/-0.5 mm; D1: 10.16+/-0.38 mm
CAK36S-16-135000-K-SE5-G	16	9.6	17.6	135000	G	L/W: 36+/-0.5 mm; H: 18+/-0.5 mm; D1: 10.16+/-0.38 mm
CAK36S-16-140000-K-SE6-F	16	9.6	17.6	140000	F	L/W: 36+/-0.5 mm; H: 20+/-0.5 mm; D1: 10.16+/-0.38 mm
CAK36S-16-140000-K-SE6-G	16	9.6	17.6	140000	G	L/W: 36+/-0.5 mm; H: 20+/-0.5 mm; D1: 10.16+/-0.38 mm
CAK36S-16-175000-K-SE7-F	16	9.6	17.6	175000	F	L/W: 36+/-0.5 mm; H: 24+/-0.5 mm; D1: 10.16+/-0.38 mm
CAK36S-16-175000-K-SE7-G	16	9.6	17.6	175000	G	L/W: 36+/-0.5 mm; H: 24+/-0.5 mm; D1: 10.16+/-0.38 mm
CAK36S-25-2000-K-SC1-F	25	15	27.5	2000	F	L/W: 20+/-0.5 mm; H: 8+/-0.5 mm; D1: 6+/-0.38 mm
CAK36S-25-2000-K-SC1-G	25	15	27.5	2000	G	L/W: 20+/-0.5 mm; H: 8+/-0.5 mm; D1: 6+/-0.38 mm
CAK36S-25-2000-K-SC2-F	25	15	27.5	2000	F	L/W: 20+/-0.5 mm; H: 10+/-0.5 mm; D1: 6+/-0.38 mm
CAK36S-25-2000-K-SC2-G	25	15	27.5	2000	G	L/W: 20+/-0.5 mm; H: 10+/-0.5 mm; D1: 6+/-0.38 mm
CAK36S-25-2000-K-SC3-F	25	15	27.5	2000	F	L/W: 20+/-0.5 mm; H: 12+/-0.5 mm; D1: 6+/-0.38 mm
CAK36S-25-2000-K-SC3-G	25	15	27.5	2000	G	L/W: 20+/-0.5 mm; H: 12+/-0.5 mm; D1: 6+/-0.38 mm
CAK36S-25-2000-K-SC4-F	25	15	27.5	2000	F	L/W: 20+/-0.5 mm; H: 16+/-0.5 mm; D1: 6+/-0.38 mm
CAK36S-25-2000-K-SC4-G	25	15	27.5	2000	G	L/W: 20+/-0.5 mm; H: 16+/-0.5 mm; D1: 6+/-0.38 mm
CAK36S-25-2000-K-SC5-F	25	15	27.5	2000	F	L/W: 20+/-0.5 mm; H: 18+/-0.5 mm; D1: 6+/-0.38 mm
CAK36S-25-2000-K-SC5-G	25	15	27.5	2000	G	L/W: 20+/-0.5 mm; H: 18+/-0.5 mm; D1: 6+/-0.38 mm
CAK36S-25-2000-K-SC6-F	25	15	27.5	2000	F	L/W: 20+/-0.5 mm; H: 20+/-0.5 mm; D1: 6+/-0.38 mm
CAK36S-25-2000-K-SC6-G	25	15	27.5	2000	G	L/W: 20+/-0.5 mm; H: 20+/-0.5 mm; D1: 6+/-0.38 mm
CAK36S-25-10000-K-SE1-F	25	15	27.5	10000	F	L/W: 36+/-0.5 mm; H: 8+/-0.5 mm; D1: 10.16+/-0.38 mm
CAK36S-25-10000-K-SE1-G	25	15	27.5	10000	G	L/W: 36+/-0.5 mm; H: 8+/-0.5 mm; D1: 10.16+/-0.38 mm
CAK36S-25-10000-K-SE2-F	25	15	27.5	10000	F	L/W: 36+/-0.5 mm; H: 10+/-0.5 mm; D1: 10.16+/-0.38 mm
CAK36S-25-10000-K-SE2-G	25	15	27.5	10000	G	L/W: 36+/-0.5 mm; H: 10+/-0.5 mm; D1: 10.16+/-0.38 mm
CAK36S-25-10000-K-SE3-F	25	15	27.5	10000	F	L/W: 36+/-0.5 mm; H: 12+/-0.5 mm; D1: 10.16+/-0.38 mm
CAK36S-25-10000-K-SE3-G	25	15	27.5	10000	G	L/W: 36+/-0.5 mm; H: 12+/-0.5 mm; D1: 10.16+/-0.38 mm
CAK36S-25-10000-K-SE4-F	25	15	27.5	10000	F	L/W: 36+/-0.5 mm; H: 16+/-0.5 mm; D1: 10.16+/-0.38 mm
CAK36S-25-10000-K-SE4-G	25	15	27.5	10000	G	L/W: 36+/-0.5 mm; H: 16+/-0.5 mm; D1: 10.16+/-0.38 mm
CAK36S-25-10000-K-SE5-F	25	15	27.5	10000	F	L/W: 36+/-0.5 mm; H: 18+/-0.5 mm; D1: 10.16+/-0.38 mm
CAK36S-25-10000-K-SE5-G	25	15	27.5	10000	G	L/W: 36+/-0.5 mm; H: 18+/-0.5 mm; D1: 10.16+/-0.38 mm
CAK36S-25-10000-K-SE6-F	25	15	27.5	10000	F	L/W: 36+/-0.5 mm; H: 20+/-0.5 mm; D1: 10.16+/-0.38 mm
CAK36S-25-10000-K-SE6-G	25	15	27.5	10000	G	L/W: 36+/-0.5 mm; H: 20+/-0.5 mm; D1: 10.16+/-0.38 mm
CAK36S-25-10000-K-SE7-F	25	15	27.5	10000	F	L/W: 36+/-0.5 mm; H: 24+/-0.5 mm; D1: 10.16+/-0.38 mm
CAK36S-25-10000-K-SE7-G	25	15	27.5	10000	G	L/W: 36+/-0.5 mm; H: 24+/-0.5 mm; D1: 10.16+/-0.38 mm
CAK36S-35-2000-K-SC1-F	35	21	38.5	2000	F	L/W: 20+/-0.5 mm; H: 8+/-0.5 mm; D1: 6+/-0.38 mm
CAK36S-35-2000-K-SC1-G	35	21	38.5	2000	G	L/W: 20+/-0.5 mm; H: 8+/-0.5 mm; D1: 6+/-0.38 mm
CAK36S-35-2000-K-SC2-F	35	21	38.5	2000	F	L/W: 20+/-0.5 mm; H: 10+/-0.5 mm; D1: 6+/-0.38 mm
CAK36S-35-2000-K-SC2-G	35	21	38.5	2000	G	L/W: 20+/-0.5 mm; H: 10+/-0.5 mm; D1: 6+/-0.38 mm
CAK36S-35-2000-K-SC3-F	35	21	38.5	2000	F	L/W: 20+/-0.5 mm; H: 12+/-0.5 mm; D1: 6+/-0.38 mm
CAK36S-35-2000-K-SC3-G	35	21	38.5	2000	G	L/W: 20+/-0.5 mm; H: 12+/-0.5 mm; D1: 6+/-0.38 mm
CAK36S-35-2000-K-SC4-F	35	21	38.5	2000	F	L/W: 20+/-0.5 mm; H: 16+/-0.5 mm; D1: 6+/-0.38 mm
CAK36S-35-2000-K-SC4-G	35	21	38.5	2000	G	L/W: 20+/-0.5 mm; H: 16+/-0.5 mm; D1: 6+/-0.38 mm
CAK36S-35-2000-K-SC5-F	35	21	38.5	2000	F	L/W: 20+/-0.5 mm; H: 18+/-0.5 mm; D1: 6+/-0.38 mm
CAK36S-35-2000-K-SC5-G	35	21	38.5	2000	G	L/W: 20+/-0.5 mm; H: 18+/-0.5 mm; D1: 6+/-0.38 mm
CAK36S-35-2000-K-SC6-F	35	21	38.5	2000	F	L/W: 20+/-0.5 mm; H: 20+/-0.5 mm; D1: 6+/-0.38 mm
CAK36S-35-2000-K-SC6-G	35	21	38.5	2000	G	L/W: 20+/-0.5 mm; H: 20+/-0.5 mm; D1: 6+/-0.38 mm
CAK36S-35-10000-K-SE1-F	35	21	38.5	10000	F	L/W: 36+/-0.5 mm; H: 8+/-0.5 mm; D1: 10.16+/-0.38 mm
CAK36S-35-10000-K-SE1-G	35	21	38.5	10000	G	L/W: 36+/-0.5 mm; H: 8+/-0.5 mm; D1: 10.16+/-0.38 mm
CAK36S-35-10000-K-SE2-F	35	21	38.5	10000	F	L/W: 36+/-0.5 mm; H: 10+/-0.5 mm; D1: 10.16+/-0.38 mm
CAK36S-35-10000-K-SE2-G	35	21	38.5	10000	G	L/W: 36+/-0.5 mm; H: 10+/-0.5 mm; D1: 10.16+/-0.38 mm
CAK36S-35-10000-K-SE3-F	35	21	38.5	10000	F	L/W: 36+/-0.5 mm; H: 12+/-0.5 mm; D1: 10.16+/-0.38 mm
CAK36S-35-10000-K-SE3-G	35	21	38.5	10000	G	L/W: 36+/-0.5 mm; H: 12+/-0.5 mm; D1: 10.16+/-0.38 mm
CAK36S-35-10000-K-SE4-F	35	21	38.5	10000	F	L/W: 36+/-0.5 mm; H: 16+/-0.5 mm; D1: 10.16+/-0.38 mm
CAK36S-35-10000-K-SE4-G	35	21	38.5	10000	G	L/W: 36+/-0.5 mm; H: 16+/-0.5 mm; D1: 10.16+/-0.38 mm
CAK36S-35-10000-K-SE5-F	35	21	38.5	10000	F	L/W: 36+/-0.5 mm; H: 18+/-0.5 mm; D1: 10.16+/-0.38 mm
CAK36S-35-10000-K-SE5-G	35	21	38.5	10000	G	L/W: 36+/-0.5 mm; H: 18+/-0.5 mm; D1: 10.16+/-0.38 mm
CAK36S-35-10000-K-SE6-F	35	21	38.5	10000	F	L/W: 36+/-0.5 mm; H: 20+/-0.5 mm; D1: 10.16+/-0.38 mm
CAK36S-35-10000-K-SE6-G	35	21	38.5	10000	G	L/W: 36+/-0.5 mm; H: 20+/-0.5 mm; D1: 10.16+/-0.38 mm
CAK36S-35-10000-K-SE7-F	35	21	38.5	10000	F	L/W: 36+/-0.5 mm; H: 24+/-0.5 mm; D1: 10.16+/-0.38 mm
CAK36S-35-10000-K-SE7-G	35	21	38.5	10000	G	L/W: 36+/-0.5 mm; H: 24+/-0.5 mm; D1: 10.16+/-0.38 mm
CAK36S-50-2000-K-SC1-F	50	30	55	2000	F	L/W: 20+/-0.5 mm; H: 8+/-0.5 mm; D1: 6+/-0.38 mm
CAK36S-50-2000-K-SC1-G	50	30	55	2000	G	L/W: 20+/-0.5 mm; H: 8+/-0.5 mm; D1: 6+/-0.38 mm
CAK36S-50-2000-K-SC2-F	50	30	55	2000	F	L/W: 20+/-0.5 mm; H: 10+/-0.5 mm; D1: 6+/-0.38 mm
CAK36S-50-2000-K-SC2-G	50	30	55	2000	G	L/W: 20+/-0.5 mm; H: 10+/-0.5 mm; D1: 6+/-0.38 mm
CAK36S-50-2000-K-SC3-F	50	30	55	2000	F	L/W: 20+/-0.5 mm; H: 12+/-0.5 mm; D1: 6+/-0.38 mm
CAK36S-50-2000-K-SC3-G	50	30	55	2000	G	L/W: 20+/-0.5 mm; H: 12+/-0.5 mm; D1: 6+/-0.38 mm
CAK36S-50-2000-K-SC4-F	50	30	55	2000	F	L/W: 20+/-0.5 mm; H: 16+/-0.5 mm; D1: 6+/-0.38 mm
CAK36S-50-2000-K-SC4-G	50	30	55	2000	G	L/W: 20+/-0.5 mm; H: 16+/-0.5 mm; D1: 6+/-0.38 mm
CAK36S-50-2000-K-SC5-F	50	30	55	2000	F	L/W: 20+/-0.5 mm; H: 18+/-0.5 mm; D1: 6+/-0.38 mm
CAK36S-50-2000-K-SC5-G	50	30	55	2000	G	L/W: 20+/-0.5 mm; H: 18+/-0.5 mm; D1: 6+/-0.38 mm
CAK36S-50-2000-K-SC6-F	50	30	55	2000	F	L/W: 20+/-0.5 mm; H: 20+/-0.5 mm; D1: 6+/-0.38 mm
CAK36S-50-2000-K-SC6-G	50	30	55	2000	G	L/W: 20+/-0.5 mm; H: 20+/-0.5 mm; D1: 6+/-0.38 mm
CAK36S-50-10000-K-SE1-F	50	30	55	10000	F	L/W: 36+/-0.5 mm; H: 8+/-0.5 mm; D1: 10.16+/-0.38 mm
CAK36S-50-10000-K-SE1-G	50	30	55	10000	G	L/W: 36+/-0.5 mm; H: 8+/-0.5 mm; D1: 10.16+/-0.38 mm
CAK36S-50-10000-K-SE2-F	50	30	55	10000	F	L/W: 36+/-0.5 mm; H: 10+/-0.5 mm; D1: 10.16+/-0.38 mm
CAK36S-50-10000-K-SE2-G	50	30	55	10000	G	L/W: 36+/-0.5 mm; H: 10+/-0.5 mm; D1: 10.16+/-0.38 mm
CAK36S-50-10000-K-SE3-F	50	30	55	10000	F	L/W: 36+/-0.5 mm; H: 12+/-0.5 mm; D1: 10.16+/-0.38 mm
CAK36S-50-10000-K-SE3-G	50	30	55	10000	G	L/W: 36+/-0.5 mm; H: 12+/-0.5 mm; D1: 10.16+/-0.38 mm
CAK36S-50-10000-K-SE4-F	50	30	55	10000	F	L/W: 36+/-0.5 mm; H: 16+/-0.5 mm; D1: 10.16+/-0.38 mm
CAK36S-50-10000-K-SE4-G	50	30	55	10000	G	L/W: 36+/-0.5 mm; H: 16+/-0.5 mm; D1: 10.16+/-0.38 mm
CAK36S-50-10000-K-SE5-F	50	30	55	10000	F	L/W: 36+/-0.5 mm; H: 18+/-0.5 mm; D1: 10.16+/-0.38 mm
CAK36S-50-10000-K-SE5-G	50	30	55	10000	G	L/W: 36+/-0.5 mm; H: 18+/-0.5 mm; D1: 10.16+/-0.38 mm
CAK36S-50-10000-K-SE6-F	50	30	55	10000	F	L/W: 36+/-0.5 mm; H: 20+/-0.5 mm; D1: 10.16+/-0.38 mm
CAK36S-50-10000-K-SE6-G	50	30	55	10000	G	L/W: 36+/-0.5 mm; H: 20+/-0.5 mm; D1: 10.16+/-0.38 mm
CAK36S-50-10000-K-SE7-F	50	30	55	10000	F	L/W: 36+/-0.5 mm; H: 24+/-0.5 mm; D1: 10.16+/-0.38 mm
CAK36S-50-10000-K-SE7-G	50	30	55	10000	G	L/W: 36+/-0.5 mm; H: 24+/-0.5 mm; D1: 10.16+/-0.38 mm
CAK36S-63-2000-K-SC1-F	63	37.8	69.3	2000	F	L/W: 20+/-0.5 mm; H: 8+/-0.5 mm; D1: 6+/-0.38 mm
CAK36S-63-2000-K-SC1-G	63	37.8	69.3	2000	G	L/W: 20+/-0.5 mm; H: 8+/-0.5 mm; D1: 6+/-0.38 mm
CAK36S-63-2000-K-SC2-F	63	37.8	69.3	2000	F	L/W: 20+/-0.5 mm; H: 10+/-0.5 mm; D1: 6+/-0.38 mm
CAK36S-63-2000-K-SC2-G	63	37.8	69.3	2000	G	L/W: 20+/-0.5 mm; H: 10+/-0.5 mm; D1: 6+/-0.38 mm
CAK36S-63-2000-K-SC3-F	63	37.8	69.3	2000	F	L/W: 20+/-0.5 mm; H: 12+/-0.5 mm; D1: 6+/-0.38 mm
CAK36S-63-2000-K-SC3-G	63	37.8	69.3	2000	G	L/W: 20+/-0.5 mm; H: 12+/-0.5 mm; D1: 6+/-0.38 mm
CAK36S-63-2000-K-SC4-F	63	37.8	69.3	2000	F	L/W: 20+/-0.5 mm; H: 16+/-0.5 mm; D1: 6+/-0.38 mm
CAK36S-63-2000-K-SC4-G	63	37.8	69.3	2000	G	L/W: 20+/-0.5 mm; H: 16+/-0.5 mm; D1: 6+/-0.38 mm
CAK36S-63-2000-K-SC5-F	63	37.8	69.3	2000	F	L/W: 20+/-0.5 mm; H: 18+/-0.5 mm; D1: 6+/-0.38 mm
CAK36S-63-2000-K-SC5-G	63	37.8	69.3	2000	G	L/W: 20+/-0.5 mm; H: 18+/-0.5 mm; D1: 6+/-0.38 mm
CAK36S-63-2000-K-SC6-F	63	37.8	69.3	2000	F	L/W: 20+/-0.5 mm; H: 20+/-0.5 mm; D1: 6+/-0.38 mm
CAK36S-63-2000-K-SC6-G	63	37.8	69.3	2000	G	L/W: 20+/-0.5 mm; H: 20+/-0.5 mm; D1: 6+/-0.38 mm
CAK36S-63-10000-K-SE1-F	63	37.8	69.3	10000	F	L/W: 36+/-0.5 mm; H: 8+/-0.5 mm; D1: 10.16+/-0.38 mm
CAK36S-63-10000-K-SE1-G	63	37.8	69.3	10000	G	L/W: 36+/-0.5 mm; H: 8+/-0.5 mm; D1: 10.16+/-0.38 mm
CAK36S-63-10000-K-SE2-F	63	37.8	69.3	10000	F	L/W: 36+/-0.5 mm; H: 10+/-0.5 mm; D1: 10.16+/-0.38 mm
CAK36S-63-10000-K-SE2-G	63	37.8	69.3	10000	G	L/W: 36+/-0.5 mm; H: 10+/-0.5 mm; D1: 10.16+/-0.38 mm
CAK36S-63-10000-K-SE3-F	63	37.8	69.3	10000	F	L/W: 36+/-0.5 mm; H: 12+/-0.5 mm; D1: 10.16+/-0.38 mm
CAK36S-63-10000-K-SE3-G	63	37.8	69.3	10000	G	L/W: 36+/-0.5 mm; H: 12+/-0.5 mm; D1: 10.16+/-0.38 mm
CAK36S-63-10000-K-SE4-F	63	37.8	69.3	10000	F	L/W: 36+/-0.5 mm; H: 16+/-0.5 mm; D1: 10.16+/-0.38 mm
CAK36S-63-10000-K-SE4-G	63	37.8	69.3	10000	G	L/W: 36+/-0.5 mm; H: 16+/-0.5 mm; D1: 10.16+/-0.38 mm
CAK36S-63-10000-K-SE5-F	63	37.8	69.3	10000	F	L/W: 36+/-0.5 mm; H: 18+/-0.5 mm; D1: 10.16+/-0.38 mm
CAK36S-63-10000-K-SE5-G	63	37.8	69.3	10000	G	L/W: 36+/-0.5 mm; H: 18+/-0.5 mm; D1: 10.16+/-0.38 mm
CAK36S-63-10000-K-SE6-F	63	37.8	69.3	10000	F	L/W: 36+/-0.5 mm; H: 20+/-0.5 mm; D1: 10.16+/-0.38 mm
CAK36S-63-10000-K-SE6-G	63	37.8	69.3	10000	G	L/W: 36+/-0.5 mm; H: 20+/-0.5 mm; D1: 10.16+/-0.38 mm
CAK36S-63-10000-K-SE7-F	63	37.8	69.3	10000	F	L/W: 36+/-0.5 mm; H: 24+/-0.5 mm; D1: 10.16+/-0.38 mm
CAK36S-63-10000-K-SE7-G	63	37.8	69.3	10000	G	L/W: 36+/-0.5 mm; H: 24+/-0.5 mm; D1: 10.16+/-0.38 mm
CAK36S-80-2000-K-SC1-F	80	48	88	2000	F	L/W: 20+/-0.5 mm; H: 8+/-0.5 mm; D1: 6+/-0.38 mm
CAK36S-80-2000-K-SC1-G	80	48	88	2000	G	L/W: 20+/-0.5 mm; H: 8+/-0.5 mm; D1: 6+/-0.38 mm
CAK36S-80-2000-K-SC2-F	80	48	88	2000	F	L/W: 20+/-0.5 mm; H: 10+/-0.5 mm; D1: 6+/-0.38 mm
CAK36S-80-2000-K-SC2-G	80	48	88	2000	G	L/W: 20+/-0.5 mm; H: 10+/-0.5 mm; D1: 6+/-0.38 mm
CAK36S-80-2000-K-SC3-F	80	48	88	2000	F	L/W: 20+/-0.5 mm; H: 12+/-0.5 mm; D1: 6+/-0.38 mm
CAK36S-80-2000-K-SC3-G	80	48	88	2000	G	L/W: 20+/-0.5 mm; H: 12+/-0.5 mm; D1: 6+/-0.38 mm
CAK36S-80-2000-K-SC4-F	80	48	88	2000	F	L/W: 20+/-0.5 mm; H: 16+/-0.5 mm; D1: 6+/-0.38 mm
CAK36S-80-2000-K-SC4-G	80	48	88	2000	G	L/W: 20+/-0.5 mm; H: 16+/-0.5 mm; D1: 6+/-0.38 mm
CAK36S-80-2000-K-SC5-F	80	48	88	2000	F	L/W: 20+/-0.5 mm; H: 18+/-0.5 mm; D1: 6+/-0.38 mm
CAK36S-80-2000-K-SC5-G	80	48	88	2000	G	L/W: 20+/-0.5 mm; H: 18+/-0.5 mm; D1: 6+/-0.38 mm
CAK36S-80-2000-K-SC6-F	80	48	88	2000	F	L/W: 20+/-0.5 mm; H: 20+/-0.5 mm; D1: 6+/-0.38 mm
CAK36S-80-2000-K-SC6-G	80	48	88	2000	G	L/W: 20+/-0.5 mm; H: 20+/-0.5 mm; D1: 6+/-0.38 mm
CAK36S-80-10000-K-SE1-F	80	48	88	10000	F	L/W: 36+/-0.5 mm; H: 8+/-0.5 mm; D1: 10.16+/-0.38 mm
CAK36S-80-10000-K-SE1-G	80	48	88	10000	G	L/W: 36+/-0.5 mm; H: 8+/-0.5 mm; D1: 10.16+/-0.38 mm
CAK36S-80-10000-K-SE2-F	80	48	88	10000	F	L/W: 36+/-0.5 mm; H: 10+/-0.5 mm; D1: 10.16+/-0.38 mm
CAK36S-80-10000-K-SE2-G	80	48	88	10000	G	L/W: 36+/-0.5 mm; H: 10+/-0.5 mm; D1: 10.16+/-0.38 mm
CAK36S-80-10000-K-SE3-F	80	48	88	10000	F	L/W: 36+/-0.5 mm; H: 12+/-0.5 mm; D1: 10.16+/-0.38 mm
CAK36S-80-10000-K-SE3-G	80	48	88	10000	G	L/W: 36+/-0.5 mm; H: 12+/-0.5 mm; D1: 10.16+/-0.38 mm
CAK36S-80-10000-K-SE4-F	80	48	88	10000	F	L/W: 36+/-0.5 mm; H: 16+/-0.5 mm; D1: 10.16+/-0.38 mm
CAK36S-80-10000-K-SE4-G	80	48	88	10000	G	L/W: 36+/-0.5 mm; H: 16+/-0.5 mm; D1: 10.16+/-0.38 mm
CAK36S-80-10000-K-SE5-F	80	48	88	10000	F	L/W: 36+/-0.5 mm; H: 18+/-0.5 mm; D1: 10.16+/-0.38 mm
CAK36S-80-10000-K-SE5-G	80	48	88	10000	G	L/W: 36+/-0.5 mm; H: 18+/-0.5 mm; D1: 10.16+/-0.38 mm
CAK36S-80-10000-K-SE6-F	80	48	88	10000	F	L/W: 36+/-0.5 mm; H: 20+/-0.5 mm; D1: 10.16+/-0.38 mm
CAK36S-80-10000-K-SE6-G	80	48	88	10000	G	L/W: 36+/-0.5 mm; H: 20+/-0.5 mm; D1: 10.16+/-0.38 mm
CAK36S-80-10000-K-SE7-F	80	48	88	10000	F	L/W: 36+/-0.5 mm; H: 24+/-0.5 mm; D1: 10.16+/-0.38 mm
CAK36S-80-10000-K-SE7-G	80	48	88	10000	G	L/W: 36+/-0.5 mm; H: 24+/-0.5 mm; D1: 10.16+/-0.38 mm
CAK36S-100-2000-K-SC1-F	100	60	110	2000	F	L/W: 20+/-0.5 mm; H: 8+/-0.5 mm; D1: 6+/-0.38 mm
CAK36S-100-2000-K-SC1-G	100	60	110	2000	G	L/W: 20+/-0.5 mm; H: 8+/-0.5 mm; D1: 6+/-0.38 mm
CAK36S-100-2000-K-SC2-F	100	60	110	2000	F	L/W: 20+/-0.5 mm; H: 10+/-0.5 mm; D1: 6+/-0.38 mm
CAK36S-100-2000-K-SC2-G	100	60	110	2000	G	L/W: 20+/-0.5 mm; H: 10+/-0.5 mm; D1: 6+/-0.38 mm
CAK36S-100-2000-K-SC3-F	100	60	110	2000	F	L/W: 20+/-0.5 mm; H: 12+/-0.5 mm; D1: 6+/-0.38 mm
CAK36S-100-2000-K-SC3-G	100	60	110	2000	G	L/W: 20+/-0.5 mm; H: 12+/-0.5 mm; D1: 6+/-0.38 mm
CAK36S-100-2000-K-SC4-F	100	60	110	2000	F	L/W: 20+/-0.5 mm; H: 16+/-0.5 mm; D1: 6+/-0.38 mm
CAK36S-100-2000-K-SC4-G	100	60	110	2000	G	L/W: 20+/-0.5 mm; H: 16+/-0.5 mm; D1: 6+/-0.38 mm
CAK36S-100-2000-K-SC5-F	100	60	110	2000	F	L/W: 20+/-0.5 mm; H: 18+/-0.5 mm; D1: 6+/-0.38 mm
CAK36S-100-2000-K-SC5-G	100	60	110	2000	G	L/W: 20+/-0.5 mm; H: 18+/-0.5 mm; D1: 6+/-0.38 mm
CAK36S-100-2000-K-SC6-F	100	60	110	2000	F	L/W: 20+/-0.5 mm; H: 20+/-0.5 mm; D1: 6+/-0.38 mm
CAK36S-100-2000-K-SC6-G	100	60	110	2000	G	L/W: 20+/-0.5 mm; H: 20+/-0.5 mm; D1: 6+/-0.38 mm
CAK36S-100-10000-K-SE1-F	100	60	110	10000	F	L/W: 36+/-0.5 mm; H: 8+/-0.5 mm; D1: 10.16+/-0.38 mm
CAK36S-100-10000-K-SE1-G	100	60	110	10000	G	L/W: 36+/-0.5 mm; H: 8+/-0.5 mm; D1: 10.16+/-0.38 mm
CAK36S-100-10000-K-SE2-F	100	60	110	10000	F	L/W: 36+/-0.5 mm; H: 10+/-0.5 mm; D1: 10.16+/-0.38 mm
CAK36S-100-10000-K-SE2-G	100	60	110	10000	G	L/W: 36+/-0.5 mm; H: 10+/-0.5 mm; D1: 10.16+/-0.38 mm
CAK36S-100-10000-K-SE3-F	100	60	110	10000	F	L/W: 36+/-0.5 mm; H: 12+/-0.5 mm; D1: 10.16+/-0.38 mm
CAK36S-100-10000-K-SE3-G	100	60	110	10000	G	L/W: 36+/-0.5 mm; H: 12+/-0.5 mm; D1: 10.16+/-0.38 mm
CAK36S-100-10000-K-SE4-F	100	60	110	10000	F	L/W: 36+/-0.5 mm; H: 16+/-0.5 mm; D1: 10.16+/-0.38 mm
CAK36S-100-10000-K-SE4-G	100	60	110	10000	G	L/W: 36+/-0.5 mm; H: 16+/-0.5 mm; D1: 10.16+/-0.38 mm
CAK36S-100-10000-K-SE5-F	100	60	110	10000	F	L/W: 36+/-0.5 mm; H: 18+/-0.5 mm; D1: 10.16+/-0.38 mm
CAK36S-100-10000-K-SE5-G	100	60	110	10000	G	L/W: 36+/-0.5 mm; H: 18+/-0.5 mm; D1: 10.16+/-0.38 mm
CAK36S-100-10000-K-SE6-F	100	60	110	10000	F	L/W: 36+/-0.5 mm; H: 20+/-0.5 mm; D1: 10.16+/-0.38 mm
CAK36S-100-10000-K-SE6-G	100	60	110	10000	G	L/W: 36+/-0.5 mm; H: 20+/-0.5 mm; D1: 10.16+/-0.38 mm
CAK36S-100-10000-K-SE7-F	100	60	110	10000	F	L/W: 36+/-0.5 mm; H: 24+/-0.5 mm; D1: 10.16+/-0.38 mm
CAK36S-100-10000-K-SE7-G	100	60	110	10000	G	L/W: 36+/-0.5 mm; H: 24+/-0.5 mm; D1: 10.16+/-0.38 mm
CAK36S-125-2000-K-SC1-F	125	75	137.5	2000	F	L/W: 20+/-0.5 mm; H: 8+/-0.5 mm; D1: 6+/-0.38 mm
CAK36S-125-2000-K-SC1-G	125	75	137.5	2000	G	L/W: 20+/-0.5 mm; H: 8+/-0.5 mm; D1: 6+/-0.38 mm
CAK36S-125-2000-K-SC2-F	125	75	137.5	2000	F	L/W: 20+/-0.5 mm; H: 10+/-0.5 mm; D1: 6+/-0.38 mm
CAK36S-125-2000-K-SC2-G	125	75	137.5	2000	G	L/W: 20+/-0.5 mm; H: 10+/-0.5 mm; D1: 6+/-0.38 mm
CAK36S-125-2000-K-SC3-F	125	75	137.5	2000	F	L/W: 20+/-0.5 mm; H: 12+/-0.5 mm; D1: 6+/-0.38 mm
CAK36S-125-2000-K-SC3-G	125	75	137.5	2000	G	L/W: 20+/-0.5 mm; H: 12+/-0.5 mm; D1: 6+/-0.38 mm
CAK36S-125-2000-K-SC4-F	125	75	137.5	2000	F	L/W: 20+/-0.5 mm; H: 16+/-0.5 mm; D1: 6+/-0.38 mm
CAK36S-125-2000-K-SC4-G	125	75	137.5	2000	G	L/W: 20+/-0.5 mm; H: 16+/-0.5 mm; D1: 6+/-0.38 mm
CAK36S-125-2000-K-SC5-F	125	75	137.5	2000	F	L/W: 20+/-0.5 mm; H: 18+/-0.5 mm; D1: 6+/-0.38 mm
CAK36S-125-2000-K-SC5-G	125	75	137.5	2000	G	L/W: 20+/-0.5 mm; H: 18+/-0.5 mm; D1: 6+/-0.38 mm
CAK36S-125-2000-K-SC6-F	125	75	137.5	2000	F	L/W: 20+/-0.5 mm; H: 20+/-0.5 mm; D1: 6+/-0.38 mm
CAK36S-125-2000-K-SC6-G	125	75	137.5	2000	G	L/W: 20+/-0.5 mm; H: 20+/-0.5 mm; D1: 6+/-0.38 mm
CAK36S-125-10000-K-SE1-F	125	75	137.5	10000	F	L/W: 36+/-0.5 mm; H: 8+/-0.5 mm; D1: 10.16+/-0.38 mm
CAK36S-125-10000-K-SE1-G	125	75	137.5	10000	G	L/W: 36+/-0.5 mm; H: 8+/-0.5 mm; D1: 10.16+/-0.38 mm
CAK36S-125-10000-K-SE2-F	125	75	137.5	10000	F	L/W: 36+/-0.5 mm; H: 10+/-0.5 mm; D1: 10.16+/-0.38 mm
CAK36S-125-10000-K-SE2-G	125	75	137.5	10000	G	L/W: 36+/-0.5 mm; H: 10+/-0.5 mm; D1: 10.16+/-0.38 mm
CAK36S-125-10000-K-SE3-F	125	75	137.5	10000	F	L/W: 36+/-0.5 mm; H: 12+/-0.5 mm; D1: 10.16+/-0.38 mm
CAK36S-125-10000-K-SE3-G	125	75	137.5	10000	G	L/W: 36+/-0.5 mm; H: 12+/-0.5 mm; D1: 10.16+/-0.38 mm
CAK36S-125-10000-K-SE4-F	125	75	137.5	10000	F	L/W: 36+/-0.5 mm; H: 16+/-0.5 mm; D1: 10.16+/-0.38 mm
CAK36S-125-10000-K-SE4-G	125	75	137.5	10000	G	L/W: 36+/-0.5 mm; H: 16+/-0.5 mm; D1: 10.16+/-0.38 mm
CAK36S-125-10000-K-SE5-F	125	75	137.5	10000	F	L/W: 36+/-0.5 mm; H: 18+/-0.5 mm; D1: 10.16+/-0.38 mm
CAK36S-125-10000-K-SE5-G	125	75	137.5	10000	G	L/W: 36+/-0.5 mm; H: 18+/-0.5 mm; D1: 10.16+/-0.38 mm
CAK36S-125-10000-K-SE6-F	125	75	137.5	10000	F	L/W: 36+/-0.5 mm; H: 20+/-0.5 mm; D1: 10.16+/-0.38 mm
CAK36S-125-10000-K-SE6-G	125	75	137.5	10000	G	L/W: 36+/-0.5 mm; H: 20+/-0.5 mm; D1: 10.16+/-0.38 mm
CAK36S-125-10000-K-SE7-F	125	75	137.5	10000	F	L/W: 36+/-0.5 mm; H: 24+/-0.5 mm; D1: 10.16+/-0.38 mm
CAK36S-125-10000-K-SE7-G	125	75	137.5	10000	G	L/W: 36+/-0.5 mm; H: 24+/-0.5 mm; D1: 10.16+/-0.38 mm
