74GHz to 76GHz RF Waveguide Bandpass Filter model OWBP-74007600-12 is E Band Waveguide Bandpass filter with a passband frequency from 74GHz to 76GHz and a rejection frequency 80GHz to 100GHz. Due to the waveguide cut off nature of Microwave Bandpass filter, the low side of this RF filter has rejection range of DC to 70GHz. Our 74GHz to 76GHz RF Waveguide Bandpass Filter provides a nominal insertion loss of 1.5 to 2.5dB across its passband and a typical rejection of 40dB. Since the high end cutoff frequency of Microwave Bandpass filter can be changed by modifying the design, custom designs can be offered under different model numbers. This 74GHz to 76GHz RF Waveguide Bandpass Filter has VSWR 1.5:1 and operating temperature of -40C to -85C. 74GHz to 76GHz Ocean Bandpass filter from RFecho is just one part in a large selection of our RF Components. Our 74GHz to 76GHz RF Waveguide Bandpass filter is ready for shipping worldwide after purchase. RFecho also stocks a wide array of other RF components that ship from our warehouse for all your RF components needs.

SKU: OWBP-74007600-12 Categories: Passive Devices, RF Filter Bandpass, RF Filters

Description

PDF

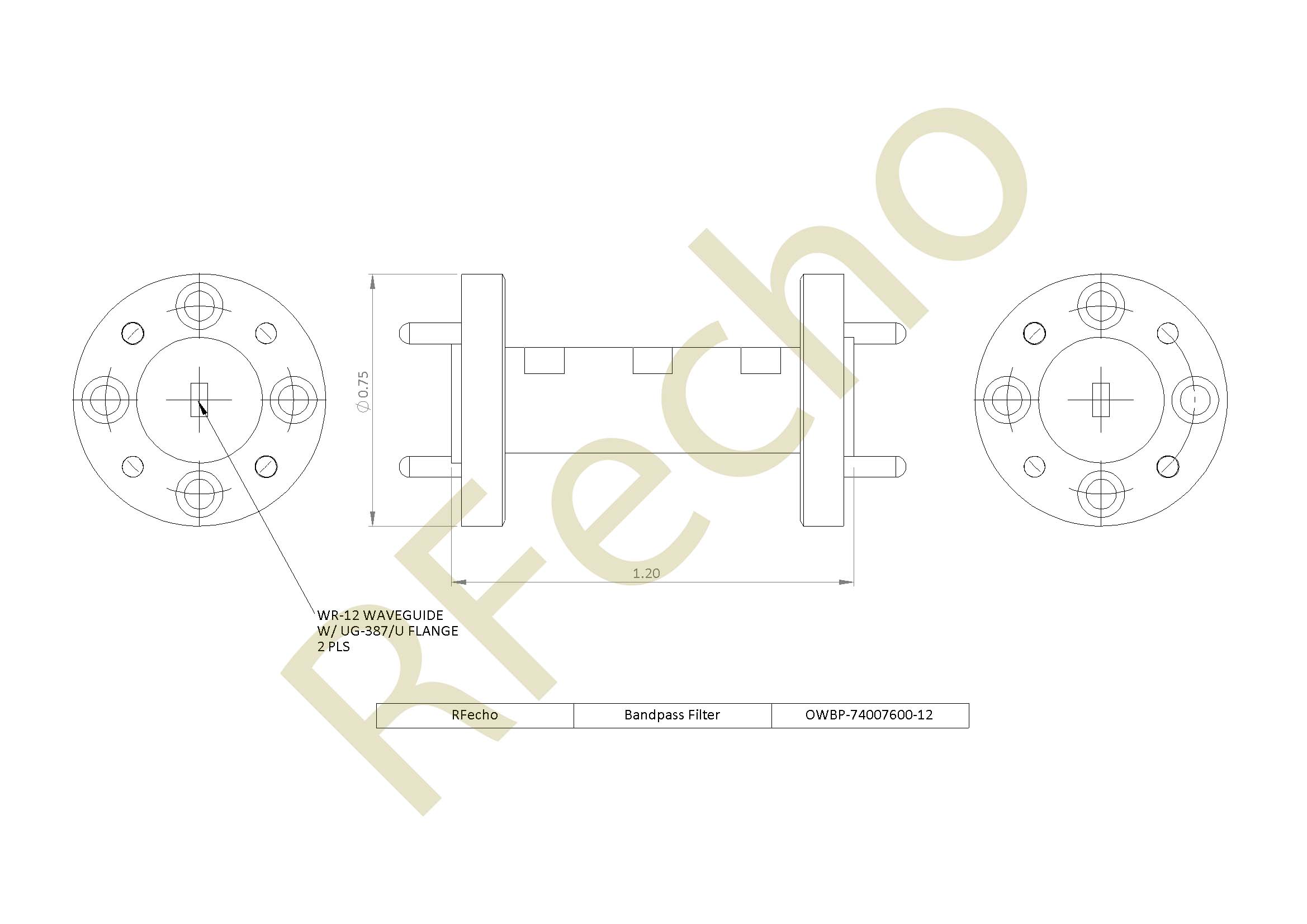

Outline

74GHz to 76GHz RF Waveguide Filter Rejection Frequency 80GHz to 100GHz Microwave Bandpass Filter

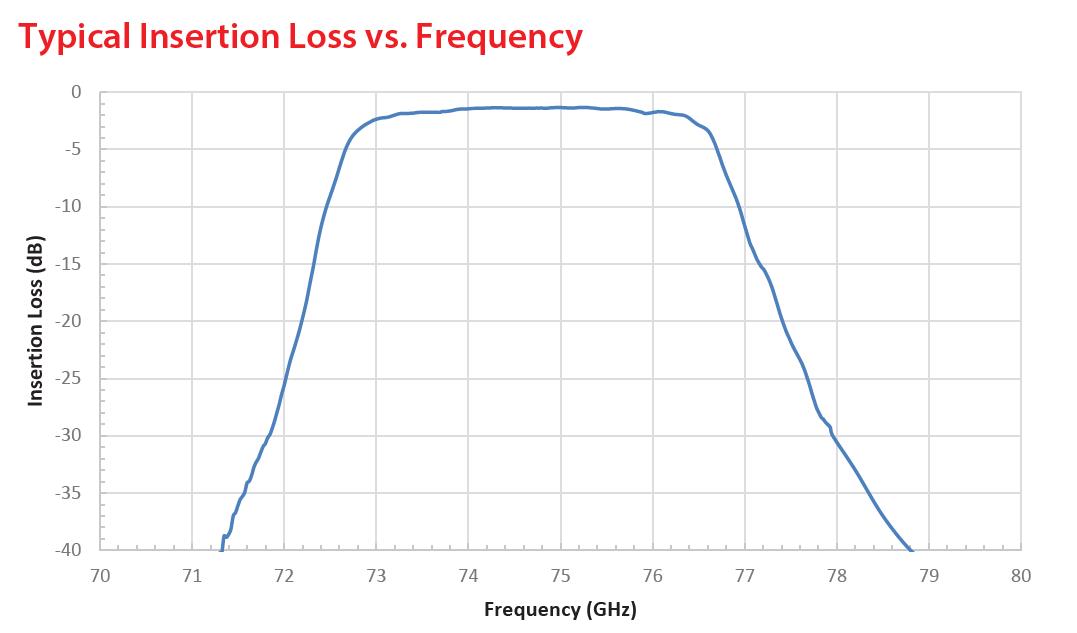

Plot

74GHz to 76GHz RF Waveguide Filter Rejection Frequency 80GHz to 100GHz Microwave Bandpass Filter

Additional information

Filter Type

RF Filter Bandpass

Min Pass Band Freq. (GHz)

74

Max Pass Band Freq. (GHz)

76

Insertion Loss (dB)

1.5-2.5

Rejection (dB)

40

Max Rejection Freq. Lowside

70

Min Rejection Freq. Highside

80

Waveguide Port

WR-12
