Cavity Backed Spiral Antenna, RF Antenna
6 GHz to 18 GHz Cavity Backed Spiral Antenna OBS-60180
Frequency: 6.0GHz-18.0GHz
Gain: 0.6 Typ~3.7Typ
VSWR: 2.5:1 Max
Connection Type: SMA Female
Polarization: LHCP/RHCP
The OBS-60180 is suitable for electronic-warfare, direction-finding, telemetry, and surveillance systems, as well as flush-mounted airborne applications. -

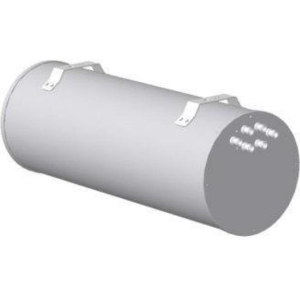

Luneburg Lens Antenna6 Ports Single Beam Lens Antenna—OLLA3AZA16A
6 Ports for multi-channel operation
Single Beam Lens technology
Frequency range: 1710-2690 MHz
+/-45° Dual Polarization
15-17 dBi High Gain
Fixed 0° Electrical Downtilt
DC Ground lightning protection
ASA radome with UV protection
High wind speed resistance up… -
SP16T, Switch6-12 GHz Absorptive SP16T PIN Switch
Frequency Range: 6-12 GHz
Switch Design: Absorptive
Switching Speed: 150ns
Input/ Output Connectors: SMA-Female
Insertion Loss: ≤5.2 dB
Isolation: ≥ 80 dB
VSWR: ≤ 1.8:1 -
SP3T, Switch6-12 GHz Absorptive SP3T PIN Switch
Frequency Range: 6-12 GHz
Switch Design: Absorptive
Switching Speed: 100ns
Input/ Output Connectors: SMA-Female
Insertion Loss: ≤2.6 dB
Isolation: ≥ 80 dB
VSWR: ≤ 1.8:1 -
SP4T, Switch6-12 GHz Absorptive SP4T PIN Switch
Frequency Range: 6-12 GHz
Switch Design: Absorptive
Switching Speed: 100ns
Input/ Output Connectors: SMA-Female
Insertion Loss: ≤2.6 dB
Isolation: ≥ 70 dB
VSWR: ≤ 1.7:1 -
SP4T, Switch6-12 GHz Absorptive SP4T PIN Switch
Frequency Range: 6-12 GHz
Switch Design: Absorptive
Switching Speed: 100ns
Input/ Output Connectors: SMA-Female
Insertion Loss: ≤2.5 dB
Isolation: ≥ 80 dB
VSWR: ≤ 1.7:1 -
SP5T, Switch6-12 GHz Absorptive SP5T PIN Switch
Frequency Range: 6-12 GHz
Switch Design: Absorptive
Switching Speed: 120ns
Input/ Output Connectors: SMA-Female
Insertion Loss: ≤2.8 dB
Isolation: ≥ 65 dB
VSWR: ≤ 1.7:1 -
SP5T, Switch6-12 GHz Absorptive SP5T PIN Switch
Frequency Range: 6-12 GHz
Switch Design: Absorptive
Switching Speed: 100ns
Input/ Output Connectors: SMA-Female
Insertion Loss: ≤2.8 dB
Isolation: ≥ 80 dB
VSWR: ≤ 1.7:1 -
SP6T, Switch6-12 GHz Absorptive SP6T PIN Switch
Frequency Range: 6-12 GHz
Switch Design: Absorptive
Switching Speed: 120ns
Input/ Output Connectors: SMA-Female
Insertion Loss: ≤3.2 dB
Isolation: ≥ 65 dB
VSWR: ≤ 1.7:1 -
SP8T, Switch6-12 GHz Absorptive SP8T PIN Switch
Frequency Range: 6-12 GHz
Switch Design: Absorptive
Switching Speed: 120ns
Input/ Output Connectors: SMA-Female
Insertion Loss: ≤4.0 dB
Isolation: ≥ 80 dB
VSWR: ≤ 1.8:1 -
SP2T, Switch6-12 GHz Absorptive SPDT PIN Switch
Frequency Range: 6-12 GHz
Switch Design: Absorptive
Switching Speed: 100ns
Input/ Output Connectors: SMA-Female
Insertion Loss: ≤2.4 dB
Isolation: ≥ 70 dB
VSWR: ≤ 1.5:1 -
SP2T, Switch6-12 GHz Absorptive SPDT PIN Switch
Frequency Range: 6-12 GHz
Switch Design: Absorptive
Switching Speed: 100ns
Input/ Output Connectors: SMA-Female
Insertion Loss: ≤2.4 dB
Isolation: ≥ 70 dB
VSWR: ≤ 1.5:1 -
SP4T, Switch6-12 GHz Reflective SP4T PIN Switch
Frequency Range: 6-12 GHz
Switch Design: Reflective
Switching Speed: 100ns
Input/ Output Connectors: SMA-Female
Insertion Loss: ≤2.6 dB
Isolation: ≥ 80 dB
VSWR: ≤ 2.0:1 -
SP5T, Switch
6-12 GHz Reflective SP5T PIN Switch
Frequency Range: 6-12 GHz
Switch Design: Reflective
Switching Speed: 120ns
Input/ Output Connectors: SMA-Female
Insertion Loss: ≤2.4 dB
Isolation: ≥ 65 dB
VSWR: ≤ 1.7:1
