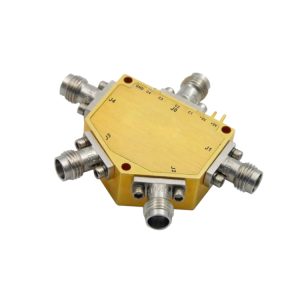

RF switch SP4T
RF switch from RFecho is one of a huge selection of coaxial switch products supplied to radio, Rfecho Coaxial Switch is commonly used in antenna and other types of RF components、 5G communication test, 5G communication fiber Optics, wireless terminal automatic test etc.
RFecho RF switch series DPDT is single pole four throw.
-
SP4T, Switch0.01-15 GHz Absorptive SP4T PIN Switch
Frequency Range: 0.01-15 GHz
Switch Design: Absorptive
Switching Speed: 200ns
Input/ Output Connectors: SMA-Female
Insertion Loss: ≤4.5 dB
Isolation: ≥ 60 dB
VSWR: ≤ 2.0:1 -
SP4T, Switch0.1-20 GHz Absorptive SP4T PIN Switch
Frequency Range: 0.1-20 GHz
Switch Design: Absorptive
Switching Speed: 100ns
Input/ Output Connectors: SMA-Female
Insertion Loss: ≤3.5 dB
Isolation: ≥ 60 dB
VSWR: ≤ 2.0:1 -
SP4T, Switch0.3-20 GHz Absorptive SP4T PIN Switch
Frequency Range: 0.3-20 GHz
Switch Design: Absorptive
Switching Speed: 100ns
Input/ Output Connectors: SMA-Female
Insertion Loss: ≤3.5 dB
Isolation: ≥ 75 dB
VSWR: ≤ 2.0:1 -
SP4T, Switch0.4-12 GHz Absorptive SP4T PIN Switch
Frequency Range: 0.4-12 GHz
Switch Design: Absorptive
Switching Speed: 100ns
Input/ Output Connectors: SMA-Female
Insertion Loss: ≤2.6 dB
Isolation: ≥ 70 dB
VSWR: ≤ 1.7:1 -
SP4T, Switch0.4-5 GHz Absorptive SP4T PIN Switch
Frequency Range: 0.4-5 GHz
Switch Design: Absorptive
Switching Speed: 100ns
Input/ Output Connectors: SMA-Female
Insertion Loss: ≤1.8 dB
Isolation: ≥ 80 dB
VSWR: ≤ 1.5:1 -
SP4T, Switch0.4-8 GHz Absorptive SP4T PIN Switch
Frequency Range: 0.4-8 GHz
Switch Design: Absorptive
Switching Speed: 100ns
Input/ Output Connectors: SMA-Female
Insertion Loss: ≤2.0 dB
Isolation: ≥ 70 dB
VSWR: ≤ 1.7:1 -
SP4T, Switch0.5-18 GHz Absorptive SP4T PIN Switch
Frequency Range: 0.5-18 GHz
Switch Design: Absorptive
Switching Speed: 100ns
Input/ Output Connectors: SMA-Female
Insertion Loss: ≤3.5 dB
Isolation: ≥ 60 dB
VSWR: ≤ 2.0:1 -
SP4T, Switch0.5-18 GHz Absorptive SP4T PIN Switch
Frequency Range: 0.5-18 GHz
Switch Design: Absorptive
Switching Speed: 100ns
Input/ Output Connectors: SMA-Female
Insertion Loss: ≤3.2 dB
Isolation: ≥ 75 dB
VSWR: ≤ 2.0:1 -
SP4T, Switch
0.5-18 GHz Reflective SP4T PIN Switch
Frequency Range: 0.5-18 GHz
Switch Design: Reflective
Switching Speed: 100ns
Input/ Output Connectors: SMA-Female
Insertion Loss: ≤3.3 dB
Isolation: ≥ 80 dB
VSWR: ≤ 2.0:1 -
SP4T, Switch
0.5-20 GHz Absorptive SP4T PIN Switch
Frequency Range: 0.5-20 GHz
Switch Design: Absorptive
Switching Speed: 100ns
Input/ Output Connectors: SMA-Female
Insertion Loss: ≤3.5 dB
Isolation: ≥ 60 dB
VSWR: ≤ 2.0:1 -
SP4T, Switch
0.5-20 GHz Absorptive SP4T PIN Switch
Frequency Range: 0.5-20 GHz
Switch Design: Absorptive
Switching Speed: 100ns
Input/ Output Connectors: SMA-Female
Insertion Loss: ≤3.5 dB
Isolation: ≥ 75 dB
VSWR: ≤ 2.0:1 -
SP4T, Switch0.8-18 GHz Absorptive SP4T PIN Switch
Frequency Range: 0.8-18 GHz
Switch Design: Absorptive
Switching Speed: 100ns
Input/ Output Connectors: SMA-Female
Insertion Loss: ≤3.5 dB
Isolation: ≥ 60 dB
VSWR: ≤ 2.0:1 -
SP4T, Switch
0.8-18 GHz Reflective SP4T PIN Switch
Frequency Range: 0.8-18 GHz
Switch Design: Reflective
Switching Speed: 100ns
Input/ Output Connectors: SMA-Female
Insertion Loss: ≤3.3 dB
Isolation: ≥ 75 dB
VSWR: ≤ 2.0:1 -
SP4T, Switch
0.8-20 GHz Absorptive SP4T PIN Switch
Frequency Range: 0.8-20 GHz
Switch Design: Absorptive
Switching Speed: 100ns
Input/ Output Connectors: SMA-Female
Insertion Loss: ≤3.5 dB
Isolation: ≥ 60 dB
VSWR: ≤ 2.0:1 -
SP4T, Switch
1-18 GHz Absorptive SP4T PIN Switch
Frequency Range: 1-18 GHz
Switch Design: Absorptive
Switching Speed: 100ns
Input/ Output Connectors: SMA-Female
Insertion Loss: ≤3.2 dB
Isolation: ≥ 60 dB
VSWR: ≤ 2.0:1 -
SP4T, Switch1-18 GHz Absorptive SP4T PIN Switch
Frequency Range: 1-18 GHz
Switch Design: Absorptive
Switching Speed: 100ns
Input/ Output Connectors: SMA-Female
Insertion Loss: ≤3.2 dB
Isolation: ≥ 75 dB
VSWR: ≤ 2.0:1
