RF Filter Highpass OWBP-7100-12

RF Filter Highpass OWBP-7100-12

0 out of 5

Model OWBP-7100-12 is an E band waveguide highpass filter with a passband frequency of 71 GHz and higher and a rejection frequency from DC to 67 GHz.

The filter provides a nominal insertion loss of 0.8 dB across its passband with a low ripple and a typical rejection of 40 dB. Since the low end cutoff frequency can be changed by modifying the design, custom designs can be offered under different model numbers.

SKU: OWBP-7100-12 Categories: Passive Devices, RF Filter Highpass, RF Filters

Description

PDF

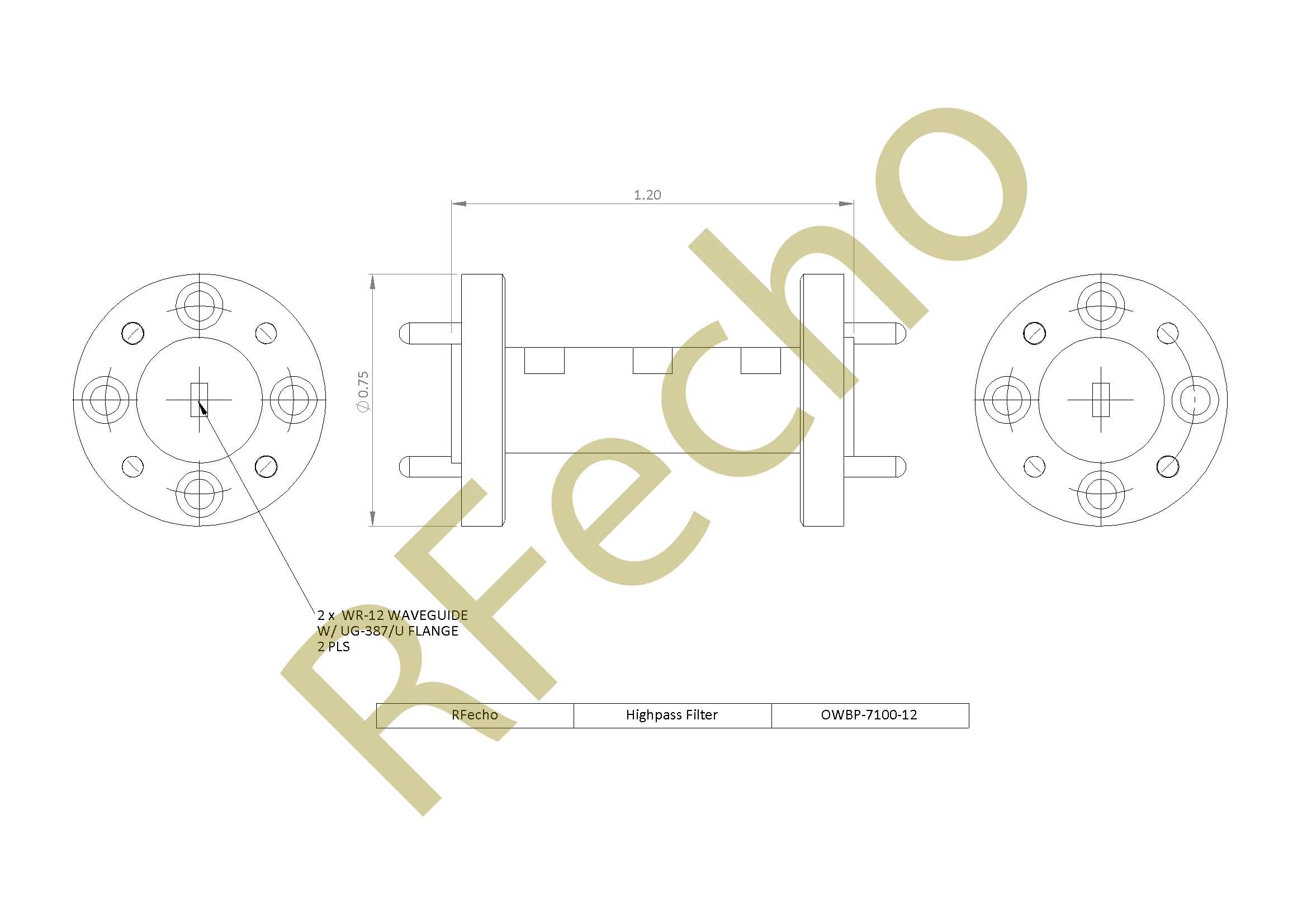

Outline

RF Filter Highpass OWBP-7100-12

Additional information

Filter Type

RF Filter Highpass

Min Pass Band Freq. (GHz)

71

Insertion Loss (dB)

0.8

Rejection (dB)

40

Min Rejection Freq. Highside

67

Waveguide Port

WR-12
