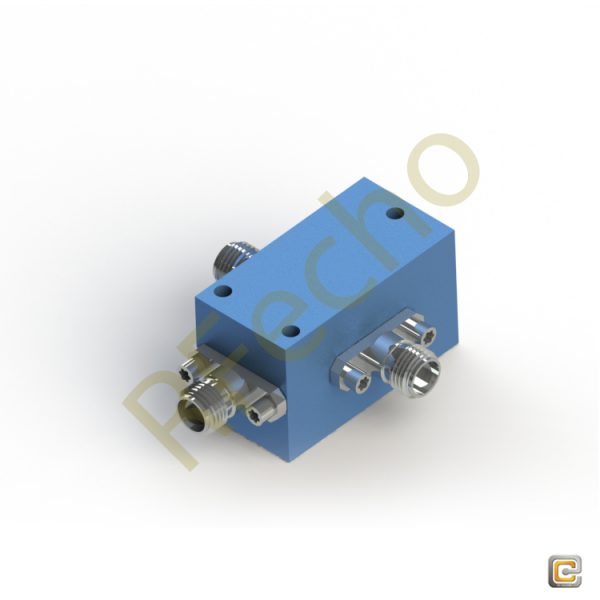

Bias Tee OBT-0160-S

Bias Tee OBT-0160-S

$310

The RFecho BIAS TEES series of products range up to 27GHz. They have good performance in terms of reliability and ease-of-use when compared to cumbersome user-designed bias tees employing off-the-shelf conical inductors.
This series can be designed to inner-only topology andutilize our standard housings for fast turn manufacturing.
They are asuperior option for biasing amplifiers, lasers, and modulators driven withhigh frequency data patterns.

SKU: OBT-0160-S Categories: Bias Tee, Passive Devices

Description

SPEC

Bias Tee



The RFecho BIAS TEES series of products range up to 27GHz.They have good performance in terms of reliability and ease-of-use when compared to cumbersome user-designed bias tees employing off-the-shelf conical inductors.



This series can be designed to inner-only topology and utilize our standard housings for fast turn manufacturing.They are a superior option for biasing amplifiers, lasers, and modulators driven with high frequency data patterns.

Features

Low Insertion Loss

Non-Resonant

Compact Size

Applications

Amplifier

Modulator

  Part No.

Frequency Range

Isolation

Insertion Loss

Current

Power

Voltage

VSWR

OBT-0160-S

10 – 6000 MHz

25 dB Min

1.8 dB Max

4000 mA Max

10 Watt Max

100 Vdc Max

1.50:1 Max





PDF

Additional information

Min Frequency

10MHz

Max Frequency

6.0GHz

Insertion Loss (dB), Max.

1.8

VSWR (Max.)

1.50:1
