Microwave Low Pass Filter model OWBP-20002600-28 is a Ka Band Waveguide low pass filter with a passband frequency from 26GHz to 60GHz and a rejection frequency 90GHz to 140GHz. Due to the waveguide cut off nature of Ka Band Waveguide low pass filter, the low side of this RF filter has rejection range of DC to 20GHz. Our Microwave Low pass filter provides a nominal insertion loss of 1.0 dB across its passband and a typical rejection of 50 dB. Since the high end cutoff frequency of Ka Band waveguide low pass filter can be changed by modifying the design, custom designs can be offered under different model numbers. Microwave low pass filter has passband return Loss of 14 dB.
Ocean low pass filter from RFecho is just one part in a large selection of our RF Components. Our 26GHz to 60GHz Microwave low pass filter is ready for shipping worldwide after purchase. RFecho also stocks a wide array of other RF components that ship from our warehouse for all your RF components needs.

SKU: OWBP-20002600-28 Categories: Passive Devices, RF Filter Lowpass, RF Filters

Description

PDF

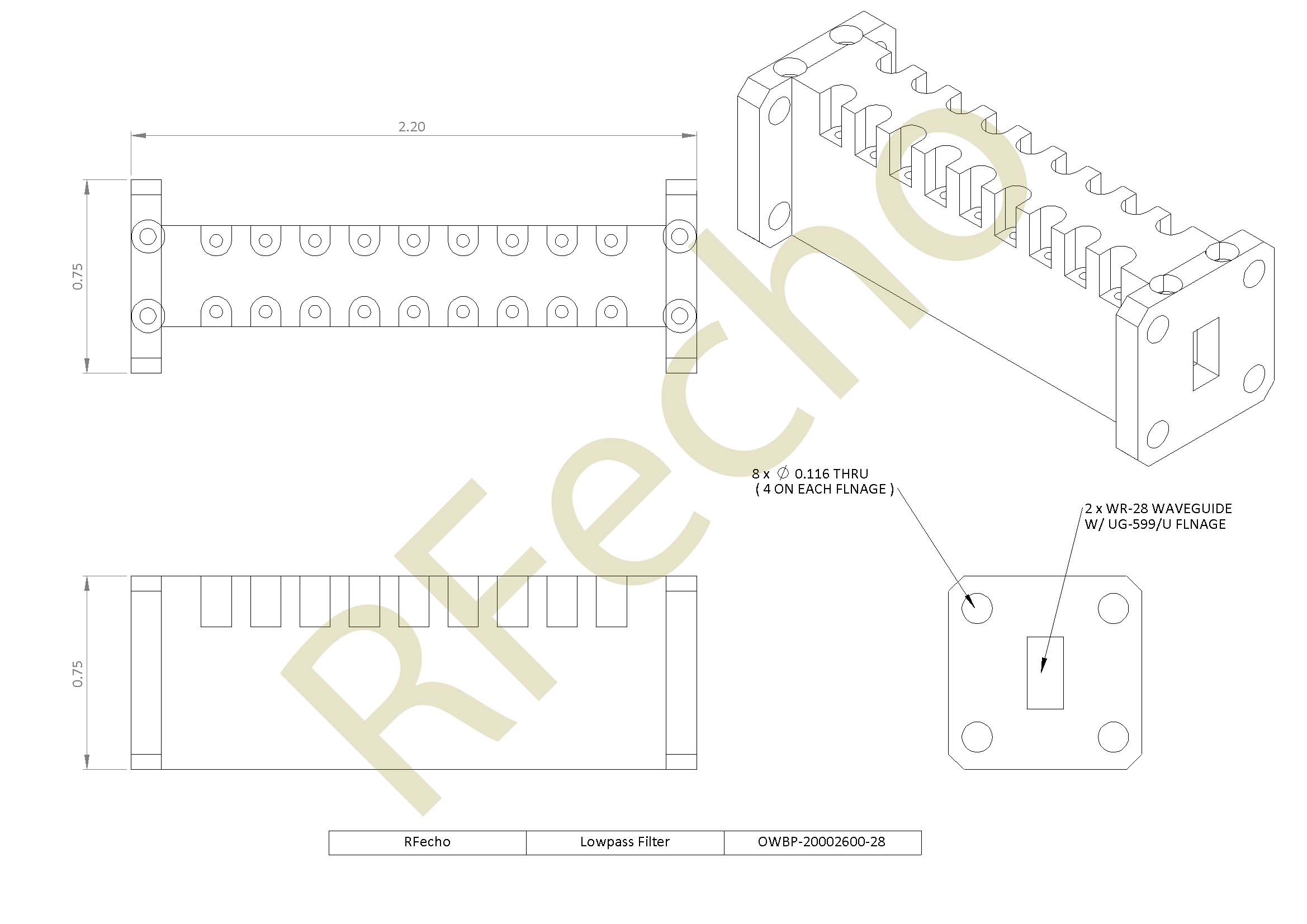

Outline

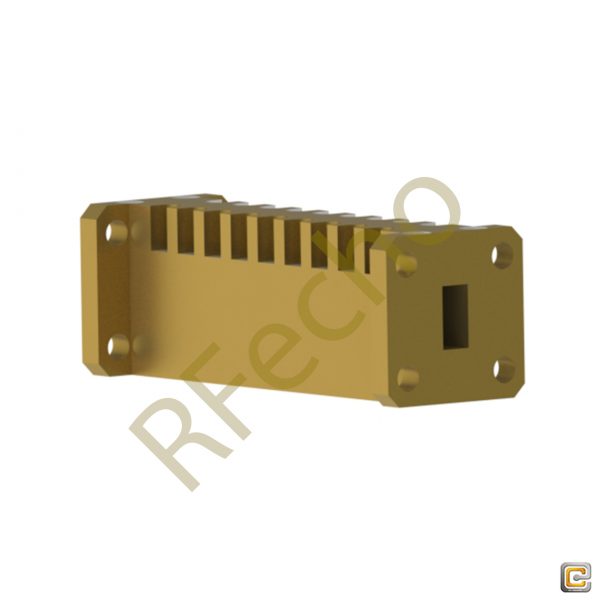

Microwave Low Pass Filter 26GHz to 60GHz Ka Band Waveguide low pass Filter with Rejection Frequency 90GHz to 140GHz

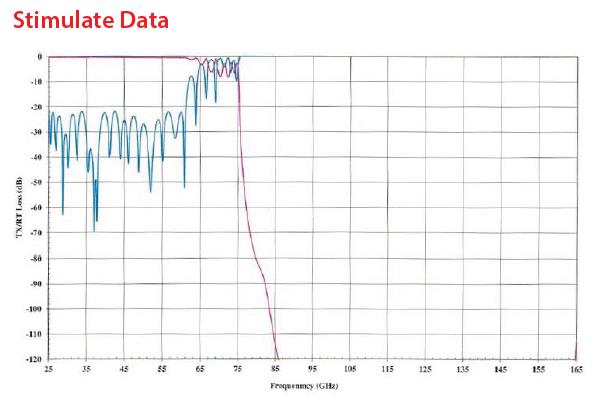

Plot

Microwave Low Pass Filter 26GHz to 60GHz Ka Band Waveguide low pass Filter with Rejection Frequency 90GHz to 140GHz

Additional information

Filter Type

RF Filter Lowpass

Min Pass Band Freq. (GHz)

26

Max Pass Band Freq. (GHz)

60

Insertion Loss (dB)

1

Rejection (dB)

50

Max Rejection Freq. Lowside

20

Min Rejection Freq. Highside

90

Waveguide Port

WR-28
