W Band Waveguide Bandpass Filter 92GHz to 96GHz Microwave Filter with Rejection Frequency 98GHz to 130GHz

W Band Waveguide Bandpass Filter 92GHz to 96GHz Microwave Filter with Rejection Frequency 98GHz to 130GHz

0 out of 5

Microwave Filter model OWBP-92009600-10 is W Band Waveguide Bandpass filter with a passband frequency from 92GHz to 96GHz and a rejection frequency 98GHz to 130GHz. Due to the waveguide cut off nature of W Band Waveguide Bandpass filter, the low side of this RF filter has rejection range of DC to 90GHz. Our Microwave Filter provides a nominal insertion loss of 1.0dB across its passband and a typical rejection of 35-40dB. Since the high end cutoff frequency of W Band Waveguide Bandpass filter can be changed by modifying the design, custom designs can be offered under different model numbers. This Passive Filter has VSWR 1.5:1 and operating temperature of -40C to -85C.
92GHz to 96GHz Ocean Bandpass filter from RFecho is just one part in a large selection of our RF Components. Our 92GHz to 96GHz Microwave filter is ready for shipping worldwide after purchase. RFecho also stocks a wide array of other RF components that ship from our warehouse for all your RF components needs.

SKU: OWBP-92009600-10 Categories: Passive Devices, RF Filter Bandpass, RF Filters

Description

PDF

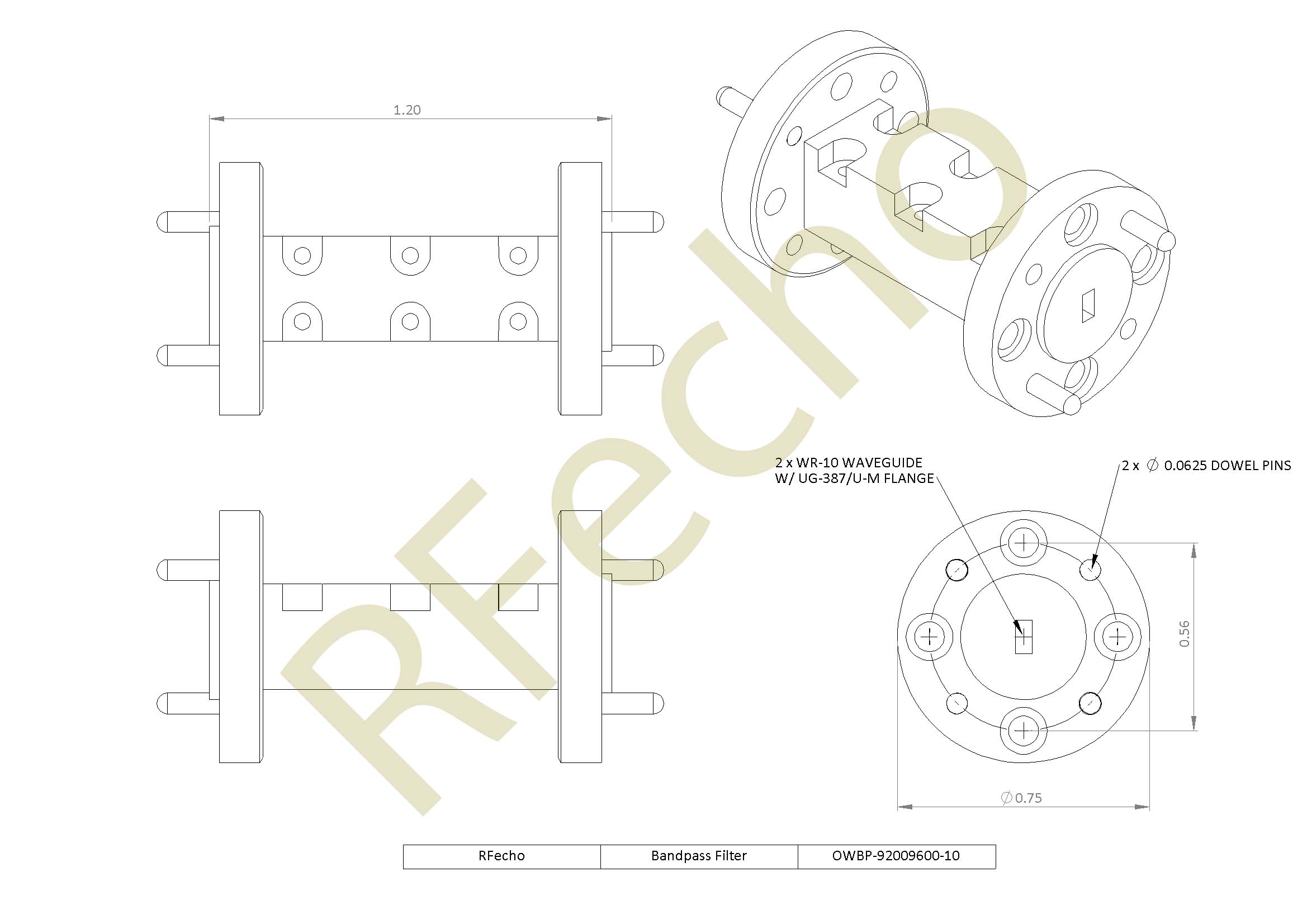

Outline

W Band Waveguide Bandpass Filter 92GHz to 96GHz Microwave Filter with Rejection Frequency 98GHz to 130GHz

Plot

W Band Waveguide Bandpass Filter 92GHz to 96GHz Microwave Filter with Rejection Frequency 98GHz to 130GHz

Additional information

Filter Type

RF Filter Bandpass

Min Pass Band Freq. (GHz)

92

Max Pass Band Freq. (GHz)

96

Insertion Loss (dB)

1

Rejection (dB)

35-40

Max Rejection Freq. Lowside

90

Min Rejection Freq. Highside

98

Waveguide Port

WR-10
