Log Periodic Antenna Table View

A log-periodic antenna might be a multi-element, directional antenna arranged to operate over a wide band of frequencies and has the capacity to supply directivity and gain.

The log-periodic antenna has radiation and impedance characteristics that are repeated as a logarithmic function at the excitation frequency range. These antennas are fractal antenna (self-similar antenna) arrays.

RFecho log-periodic antenna has the frequency range from 0.1GHz to 35GHz, Nominal impedance of 50 Ohm and Tripod connection is 1/4″.



Log Periodic Antenna
ImageSkuMin. Frequency (GHz)Max. Frequency (GHz)Gain (dBi)Connection Type

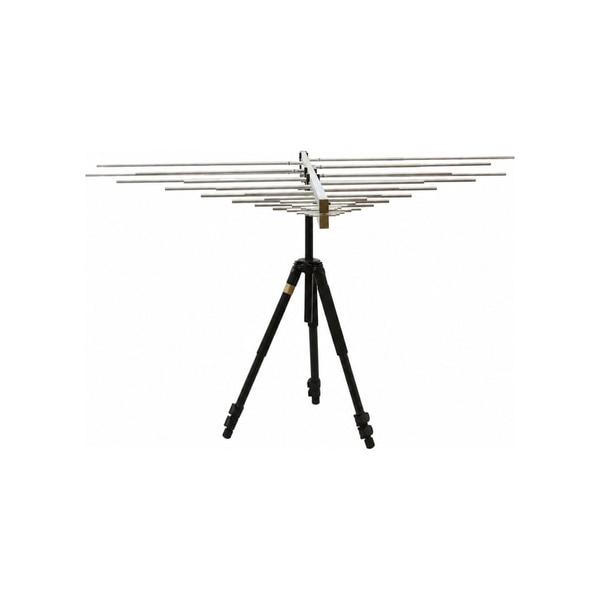

(-15 - 7 )dBi Gain, 0.025GHz to 5GHz, Bilogical Antenna  OLP-00250

OLP-002500.0255-28 - 7

(-16 - 7)dBi Gain, 0.025GHz to 2GHz, Bilogical Antenna  OLP-00220-A

OLP-00220-A0.0252-16 - 7

(-27 - 7)dBi Gain, 0.025GHz to 7GHz, Bilogical Antenna  OLP-00270

OLP-002700.0257-27 - 7N-Type, female

(-28 - 7)dBi Gain, 0.025GHz to 2GHz, Bilogical Antenna  OLP-00220

OLP-002200.0252

(-28 - 7)dBi Gain, 0.025GHz to 4GHz, Bilogical Antenna  OLP-00240

OLP-002400.0254-28 - 7

19 dBi Gain with Amplifier, 0.38 GHz to 20 GHz, Active Directional Antenna -A (f 380 MHz)

OLP-380M-200-A0.382019SMA socket or N socket

19 dBi Gain with Amplifier, 0.68 GHz to 20 GHz, Active Directional Antenna -A (f 380 MHz)

OLP-680M-200-A0.682019SMA socket or N socket

4 dBi Gain, 0.4 GHz to 2.5 GHz, Directional Antenna (f 380MHz)

OLP-4250.42.54SMA (F) or N

4 dBi Gain, 0.4 GHz to 4 GHz, Directional Antenna (f 380MHz)

OLP-4400.444SMA (F) or N

4 dBi Gain, 0.7 GHz to 2.5 GHz, Directional Antenna (f 680 MHz)

OLP-7250.72.54SMA (F) or N

4 dBi Gain, 0.7 GHz to 4 GHz, Directional Antenna (f 680 MHz)

OLP-7400.744SMA (F) or N

44 dBi Gain with Amplifier, 0.4 GHz to 2.5 GHz, Active Directional Antenna -A (f 380 MHz)

OLP-425-A0.42.544SMA (F) or N

44 dBi Gain with Amplifier, 0.4 GHz to 4 GHz, Active Directional Antenna -A (f 380 MHz)

OLP-440-A0.4444SMA (F) or N

44 dBi Gain with Amplifier, 0.7 GHz to 2.5 GHz, Active Directional Antenna -A (f 380 MHz)

OLP-725-A0.72.544SMA (F) or N

44 dBi Gain with Amplifier, 0.7 GHz to 4 GHz, Active Directional Antenna -A (f 380 MHz)

OLP-740-A0.7444SMA (F) or N

45 dBi Gain with Amplifier, 0.38 GHz to 10 GHz, Active Directional Antenna -A (f 380 MHz)

OLP-380M-100-A0.381045SMA socket (18GHz) or N socket

45 dBi Gain with Amplifier, 0.38 GHz to 8 GHz, Active Directional Antenna -A (f 380 MHz)

OLP-380M-80-A0.38845SMA (F) or N

45 dBi Gain with Amplifier, 0.4 GHz to 6 GHz, Active Directional Antenna -A (f 380 MHz)

OLP-460-A0.4645SMA (F) or N

45 dBi Gain with Amplifier, 0.68 GHz to 10 GHz, Active Directional Antenna -A (f 380 MHz)

OLP-680M-100-A0.681045SMA socket (18GHz) or N socket

45 dBi Gain with Amplifier, 0.68 GHz to 8 GHz, Active Directional Antenna -A (f 380 MHz)

OLP-680M-80-A0.68845SMA (F) or N

45 dBi Gain with Amplifier, 0.7 GHz to 6 GHz, Active Directional Antenna -A (f 380 MHz)

OLP-760-A0.7645SMA (F) or N

5 dBi Gain, 0.38 GHz to 10 GHz, Directional Antenna (f 380MHz)

OLP-380M-1000.38105SMA (F) or N

5 dBi Gain, 0.38 GHz to 18 GHz, Directional Antenna (f 380MHz)

OLP-380M-1800.38185SMA (F) or N

5 dBi Gain, 0.38 GHz to 25 GHz, Directional Antenna (f 380MHz)

OLP-380M-2500.38255SMA (F) or N

5 dBi Gain, 0.38 GHz to 35 GHz, Directional Antenna (f 380MHz)

OLP-380M-3500.38355SMA (F) or N

5 dBi Gain, 0.38 GHz to 8 GHz, Directional Antenna (f 380MHz)

OLP-380M-800.3885SMA (F) or N

5 dBi Gain, 0.4 GHz to 6 GHz, Directional Antenna (f 380MHz)

OLP-4600.465SMA (F) or N

5 dBi Gain, 0.68 GHz to 10 GHz, Directional Antenna (f 680 MHz)

OLP-680M-1000.68105SMA (F) or N

5 dBi Gain, 0.68 GHz to 18 GHz, Directional Antenna (f 680 MHz)

OLP-680M-1800.68185SMA (F) or N

5 dBi Gain, 0.68 GHz to 25 GHz, Directional Antenna (f 680 MHz)

OLP-680M-2500.68255SMA (F) or N

5 dBi Gain, 0.68 GHz to 35 GHz, Directional Antenna (f 680 MHz)

OLP-680M-3500.68355SMA (F) or N

5 dBi Gain, 0.68 GHz to 8 GHz, Directional Antenna (f 680 MHz)

OLP-680M-800.6885SMA (F) or N

5 dBi Gain, 0.7 GHz to 6 GHz, Directional Antenna (f 680 MHz)

OLP-7600.765SMA (F) or N

6dBi Gain, 0.025GHz to 2GHz, Bilogical Antenna  OLP-00220-B

OLP-00220-B0.02526

6dBi Gain, 0.025GHz to 4GHz, Bilogical Antenna  OLP-00240-B

OLP-00240-B0.0254-28 - 7

6dBi Gain, 0.025GHz to 7GHz, Bilogical Antenna  OLP-00270-B

OLP-00270-B0.02576N-Type, female
