SP8T, Switch0.5-20 GHz Absorptive SP8T PIN Switch
Frequency Range: 0.5-20 GHz
Switch Design: Absorptive
Switching Speed: 120ns
Input/ Output Connectors: SMA-Female
Insertion Loss: ≤5.0 dB
Isolation: ≥ 80 dB
VSWR: ≤ 2.0:1 -

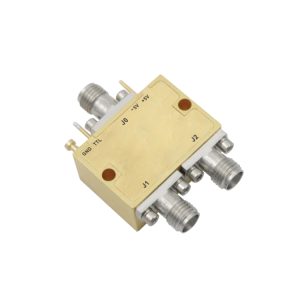

SP2T, Switch0.5-20 GHz Absorptive SPDT PIN Switch
Frequency Range: 0.5-20 GHz
Switch Design: Absorptive
Switching Speed: 100ns
Input/ Output Connectors: SMA-Female
Insertion Loss: ≤3.5 dB
Isolation: ≥ 60 dB
VSWR: ≤ 2.0:1 -

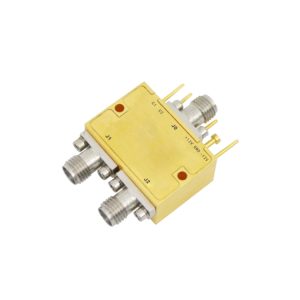

SP2T, Switch0.5-20 GHz Absorptive SPDT PIN Switch
Frequency Range: 0.5-20 GHz
Switch Design: Absorptive
Switching Speed: 100ns
Input/ Output Connectors: SMA-Female
Insertion Loss: ≤3.5 dB
Isolation: ≥ 60 dB
VSWR: ≤ 2.0:1 -
SP3T, Switch0.5-20 GHz Reflective SP3T PIN Switch
Frequency Range: 0.5-20 GHz
Switch Design: Reflective
Switching Speed: 100ns
Input/ Output Connectors: SMA-Female
Insertion Loss: ≤3.2 dB
Isolation: ≥ 80 dB
VSWR: ≤ 2.0:1 -
SP6T, Switch0.5-20 GHz Reflective SP6T PIN Switch
Frequency Range: 0.5-20 GHz
Switch Design: Reflective
Switching Speed: 150ns
Input/ Output Connectors: SMA-Female
Insertion Loss: ≤4.2 dB
Isolation: ≥ 70 dB
VSWR: ≤ 2.0:1 -
SP8T, Switch0.5-20 GHz Reflective SP8T PIN Switch
Frequency Range: 0.5-20 GHz
Switch Design: Reflective
Switching Speed: 150ns
Input/ Output Connectors: SMA-Female
Insertion Loss: ≤4.2 dB
Isolation: ≥ 70 dB
VSWR: ≤ 2.0:1 -

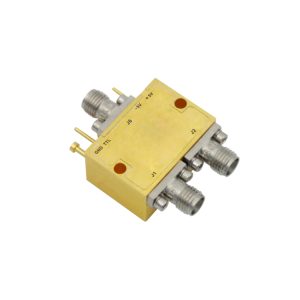

SP2T, Switch0.5-20 GHz Reflective SPDT PIN Switch
Frequency Range: 0.5-20 GHz
Switch Design: Reflective
Switching Speed: 100ns
Input/ Output Connectors: SMA-Female
Insertion Loss: ≤2.8 dB
Isolation: ≥ 60 dB
VSWR: ≤ 2.0:1 -
SP2T, Switch0.5-20 GHz Reflective SPDT PIN Switch
Frequency Range: 0.5-20 GHz
Switch Design: Reflective
Switching Speed: 100ns
Input/ Output Connectors: SMA-Female
Insertion Loss: ≤3.0 dB
Isolation: ≥ 70 dB
VSWR: ≤ 2.0:1 -
Power Amplifier0.5-2GHz 100W CAN-Bus Solid-State Power Amplifier
Frequency range: 0.5-2GHz
Output power: ≥50dBm (100W).
Attenuation range: ≥30dB, 0.25dB step.
Supply voltage: +28VDC Typ.
CAN bus communication and 7-bit digital step attenuator
Self-protection: over-temperature, over/under-voltage, over-current
Enable control and fault reporting function
OTY0P502P100 Solid-State Power…
-
SP24T, Switch0.5-8 GHz Absorptive SP24T PIN Switch
Frequency Range: 0.5-8 GHz
Switch Design: Absorptive
Switching Speed: 100ns
Input/ Output Connectors: SMA-Female
Insertion Loss: ≤5.6 dB
Isolation: ≥ 70 dB
VSWR: ≤ 2.0:1 -
SPST, Switch0.5–18 GHz Absorptive SPST PIN Switch
Broadband 0.5–18 GHz;Low Insertion Loss;
High Isolation;
Fast Switching Speed;
Absorptive, 50 Ω Matched -
SPST, Switch0.5–20 GHz Absorptive SPST PIN Switch
Broadband 0.5–20 GHz;Low Insertion Loss;
High Isolation;
Fast Switching Speed;
Absorptive, 50 Ω Matched -
SP16T, Switch0.8-18 GHz Absorptive SP16T PIN Switch
Frequency Range: 0.8-18 GHz
Switch Design: Absorptive
Switching Speed: 150ns
Input/ Output Connectors: SMA-Female
Insertion Loss: ≤7.0 dB
Isolation: ≥ 80 dB
VSWR: ≤ 2.0:1 -
SP3T, Switch0.8-18 GHz Absorptive SP3T PIN Switch
Frequency Range: 0.8-18 GHz
Switch Design: Absorptive
Switching Speed: 100ns
Input/ Output Connectors: SMA-Female
Insertion Loss: ≤3.5 dB
Isolation: ≥ 80 dB
VSWR: ≤ 2.0:1 -
SP4T, Switch0.8-18 GHz Absorptive SP4T PIN Switch
Frequency Range: 0.8-18 GHz
Switch Design: Absorptive
Switching Speed: 100ns
Input/ Output Connectors: SMA-Female
Insertion Loss: ≤3.5 dB
Isolation: ≥ 60 dB
VSWR: ≤ 2.0:1 -
SP6T, Switch0.8-18 GHz Absorptive SP6T PIN Switch
Frequency Range: 0.8-18 GHz
Switch Design: Absorptive
Switching Speed: 120ns
Input/ Output Connectors: SMA-Female
Insertion Loss: ≤4.2 dB
Isolation: ≥ 60 dB
VSWR: ≤ 2.0:1
