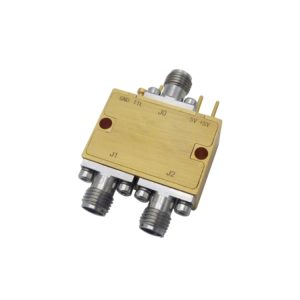

SP2T, Switch0.8-18 GHz Absorptive SPDT PIN Switch
Frequency Range: 0.8-18 GHz
Switch Design: Absorptive
Switching Speed: 100ns
Input/ Output Connectors: SMA-Female
Insertion Loss: ≤3.0 dB
Isolation: ≥ 60 dB
VSWR: ≤ 2.0:1 -
SP2T, Switch0.8-18 GHz Absorptive SPDT PIN Switch
Frequency Range: 0.8-18 GHz
Switch Design: Absorptive
Switching Speed: 100ns
Input/ Output Connectors: SMA-Female
Insertion Loss: ≤3.0 dB
Isolation: ≥ 60 dB
VSWR: ≤ 2.0:1 -
SP4T, Switch0.8-18 GHz Reflective SP4T PIN Switch
Frequency Range: 0.8-18 GHz
Switch Design: Reflective
Switching Speed: 100ns
Input/ Output Connectors: SMA-Female
Insertion Loss: ≤3.3 dB
Isolation: ≥ 75 dB
VSWR: ≤ 2.0:1 -
SP6T, Switch0.8-18 GHz Reflective SP6T PIN Switch
Frequency Range: 0.8-18 GHz
Switch Design: Reflective
Switching Speed: 150ns
Input/ Output Connectors: SMA-Female
Insertion Loss: ≤3.7 dB
Isolation: ≥ 70 dB
VSWR: ≤ 2.0:1 -
SP2T, Switch0.8-18 GHz Reflective SPDT PIN Switch
Frequency Range: 0.8-18 GHz
Switch Design: Reflective
Switching Speed: 100ns
Input/ Output Connectors: SMA-Female
Insertion Loss: ≤2.8 dB
Isolation: ≥ 60 dB
VSWR: ≤ 2.0:1 -

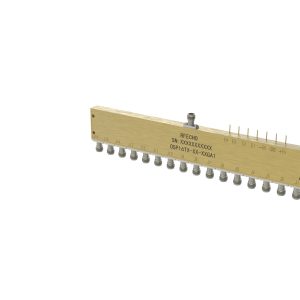

SP16T, Switch0.8-20 GHz Absorptive SP16T PIN Switch
Frequency Range: 0.8-20 GHz
Switch Design: Absorptive
Switching Speed: 150ns
Input/ Output Connectors: SMA-Female
Insertion Loss: ≤7.5 dB
Isolation: ≥ 80 dB
VSWR: ≤ 2.0:1 -
SP4T, Switch0.8-20 GHz Absorptive SP4T PIN Switch
Frequency Range: 0.8-20 GHz
Switch Design: Absorptive
Switching Speed: 100ns
Input/ Output Connectors: SMA-Female
Insertion Loss: ≤3.5 dB
Isolation: ≥ 60 dB
VSWR: ≤ 2.0:1 -
SP6T, Switch0.8-20 GHz Absorptive SP6T PIN Switch
Frequency Range: 0.8-20 GHz
Switch Design: Absorptive
Switching Speed: 120ns
Input/ Output Connectors: SMA-Female
Insertion Loss: ≤4.5 dB
Isolation: ≥ 60 dB
VSWR: ≤ 2.0:1 -
SP2T, Switch0.8-20 GHz Absorptive SPDT PIN Switch
Frequency Range: 0.8-20 GHz
Switch Design: Absorptive
Switching Speed: 100ns
Input/ Output Connectors: SMA-Female
Insertion Loss: ≤3.5 dB
Isolation: ≥ 60 dB
VSWR: ≤ 2.0:1 -
SP2T, Switch0.8-20 GHz Absorptive SPDT PIN Switch
Frequency Range: 0.8-20 GHz
Switch Design: Absorptive
Switching Speed: 100ns
Input/ Output Connectors: SMA-Female
Insertion Loss: ≤3.5 dB
Isolation: ≥ 60 dB
VSWR: ≤ 2.0:1 -
SP6T, Switch0.8-20 GHz Reflective SP6T PIN Switch
Frequency Range: 0.8-20 GHz
Switch Design: Reflective
Switching Speed: 150ns
Input/ Output Connectors: SMA-Female
Insertion Loss: ≤4.2 dB
Isolation: ≥ 70 dB
VSWR: ≤ 2.0:1 -
SP2T, Switch0.8-20 GHz Reflective SPDT PIN Switch
Frequency Range: 0.8-20 GHz
Switch Design: Reflective
Switching Speed: 100ns
Input/ Output Connectors: SMA-Female
Insertion Loss: ≤2.8 dB
Isolation: ≥ 60 dB
VSWR: ≤ 2.0:1 -
SP3T, Switch0.8-6 GHz Absorptive SP3T PIN Switch
Frequency Range: 0.8-6 GHz
Switch Design: Absorptive
Switching Speed: 100ns
Input/ Output Connectors: SMA-Female
Insertion Loss: ≤1.8 dB
Isolation: ≥ 80 dB
VSWR: ≤ 1.5:1 -
SPST, Switch0.8–18 GHz Absorptive SPST PIN Switch
Broadband 0.8–18 GHz;Low Insertion Loss;
High Isolation;
Fast Switching Speed;
Absorptive, 50 Ω Matched -
SPST, Switch0.8–20 GHz Absorptive SPST PIN Switch
Broadband 0.8–20 GHz;Low Insertion Loss;
High Isolation;
Fast Switching Speed;
Absorptive, 50 Ω Matched -
Signal Generations1 to 16 GHz, Selectable Fixed-Frequency Low Phase Noise PDRO – OPDRO50L
Output frequency range: 1–16 GHz; fixed frequency selected when orderingOutput power: ≥10 dBmThe OPDRO50L is a phase-locked dielectric resonator oscillator with a fixed output frequency selected within 1 to 16…
