Signal Generations1 to 16 GHz, Selectable Fixed-Frequency Standard PDRO – OPDRO50
Output frequency range: 1–16 GHz; fixed frequency selected when orderingOutput power: ≥10 dBmThe OPDRO50 is a phase-locked dielectric resonator oscillator with a fixed output frequency selected within 1 to 16…
-
Signal Generations1 to 52 GHz, Selectable Fixed-Frequency Low Phase Noise Fixed-Frequency Signal Source – OPDRO-140
Output frequency range: 1–52 GHz; fixed frequency selected when orderingOutput power: ≥10 dBmThe OPDRO-140 is a low phase noise fixed-frequency signal source with a fixed output frequency selected within 1…
-
Signal Generations1 to 52 GHz, Selectable Fixed-Frequency Low Phase Noise Fixed-Frequency Signal Source – OPDRO-140L
Output frequency range: 1–52 GHz; fixed frequency selected when orderingOutput power: ≥10 dBmThe OPDRO-140L is a low phase noise fixed-frequency signal source with a fixed output frequency selected within 1…
-
Signal Generations1 to 52 GHz, Selectable Fixed-Frequency Low Phase Noise PDRO – OPDRO57L
Output frequency range: 1–52 GHz; fixed frequency selected when orderingOutput power: ≥10 dBmThe OPDRO57L is a phase-locked dielectric resonator oscillator with a fixed output frequency selected within 1 to 52…
-
Signal Generations1 to 52 GHz, Selectable Fixed-Frequency Standard PDRO – OPDRO57
Output frequency range: 1–52 GHz; fixed frequency selected when orderingOutput power: ≥10 dBmThe OPDRO57 is a phase-locked dielectric resonator oscillator with a fixed output frequency selected within 1 to 52…
-
SP16T, Switch1-18 GHz Absorptive SP16T PIN Switch
Frequency Range: 1-18 GHz
Switch Design: Absorptive
Switching Speed: 150ns
Input/ Output Connectors: SMA-Female
Insertion Loss: ≤7.0 dB
Isolation: ≥ 80 dB
VSWR: ≤ 2.0:1 -
SP3T, Switch1-18 GHz Absorptive SP3T PIN Switch
Frequency Range: 1-18 GHz
Switch Design: Absorptive
Switching Speed: 100ns
Input/ Output Connectors: SMA-Female
Insertion Loss: ≤3.5 dB
Isolation: ≥ 80 dB
VSWR: ≤ 2.0:1 -
SP4T, Switch1-18 GHz Absorptive SP4T PIN Switch
Frequency Range: 1-18 GHz
Switch Design: Absorptive
Switching Speed: 100ns
Input/ Output Connectors: SMA-Female
Insertion Loss: ≤3.2 dB
Isolation: ≥ 60 dB
VSWR: ≤ 2.0:1 -
SP4T, Switch1-18 GHz Absorptive SP4T PIN Switch
Frequency Range: 1-18 GHz
Switch Design: Absorptive
Switching Speed: 100ns
Input/ Output Connectors: SMA-Female
Insertion Loss: ≤3.2 dB
Isolation: ≥ 75 dB
VSWR: ≤ 2.0:1 -
SP5T, Switch1-18 GHz Absorptive SP5T PIN Switch
Frequency Range: 1-18 GHz
Switch Design: Absorptive
Switching Speed: 120ns
Input/ Output Connectors: SMA-Female
Insertion Loss: ≤3.5 dB
Isolation: ≥ 60 dB
VSWR: ≤ 2.0:1 -
SP5T, Switch1-18 GHz Absorptive SP5T PIN Switch
Frequency Range: 1-18 GHz
Switch Design: Absorptive
Switching Speed: 100ns
Input/ Output Connectors: SMA-Female
Insertion Loss: ≤3.5 dB
Isolation: ≥ 75 dB
VSWR: ≤ 2.0:1 -
SP6T, Switch1-18 GHz Absorptive SP6T PIN Switch
Frequency Range: 1-18 GHz
Switch Design: Absorptive
Switching Speed: 120ns
Input/ Output Connectors: SMA-Female
Insertion Loss: ≤4.2 dB
Isolation: ≥ 60 dB
VSWR: ≤ 2.0:1 -
SP8T, Switch1-18 GHz Absorptive SP8T PIN Switch
Frequency Range: 1-18 GHz
Switch Design: Absorptive
Switching Speed: 120ns
Input/ Output Connectors: SMA-Female
Insertion Loss: ≤4.8 dB
Isolation: ≥ 80 dB
VSWR: ≤ 2.0:1 -

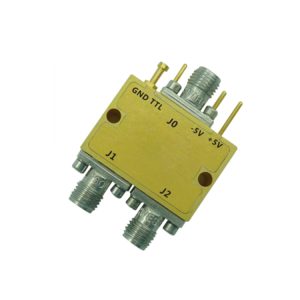

SP2T, Switch1-18 GHz Absorptive SPDT PIN Switch
Frequency Range: 1-18 GHz
Switch Design: Absorptive
Switching Speed: 100ns
Input/ Output Connectors: SMA-Female
Insertion Loss: ≤3.0 dB
Isolation: ≥ 60 dB
VSWR: ≤ 2.0:1 -

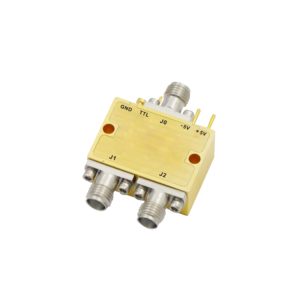

SP2T, Switch1-18 GHz Absorptive SPDT PIN Switch
Frequency Range: 1-18 GHz
Switch Design: Absorptive
Switching Speed: 100ns
Input/ Output Connectors: SMA-Female
Insertion Loss: ≤3.0 dB
Isolation: ≥ 60 dB
VSWR: ≤ 2.0:1 -
SP3T, Switch1-18 GHz Reflective SP3T PIN Switch
Frequency Range: 1-18 GHz
Switch Design: Reflective
Switching Speed: 100ns
Input/ Output Connectors: SMA-Female
Insertion Loss: ≤2.8 dB
Isolation: ≥ 80 dB
VSWR: ≤ 2.0:1
