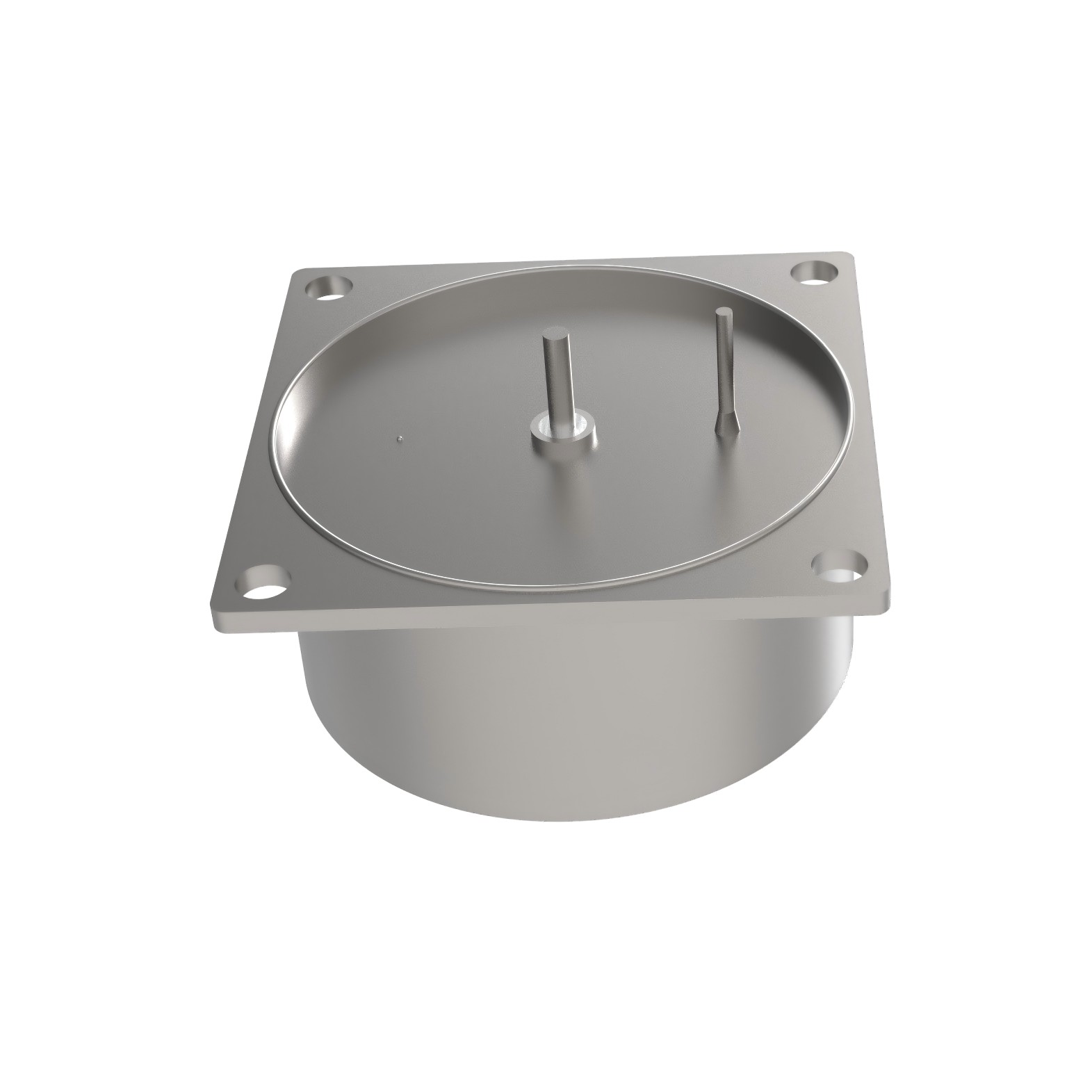

CAK36F Hermetically Sealed High-Temperature (150degC) High-Energy Hybrid Tantalum Capacitor

Image	SKU	Rated Voltage (Ur)(V)	Surge Voltage (Us)(V)	Capacitance (CR)(uf)	Case Size	Dimensions
	CAK36F-10-40000-K-FE1-E	10	11	40000	φ36 × 8 mm	D: 36+/-0.5 mm; H: 8+/-0.5 mm L1: 7 mm; L2: 5.84+/-0.76 mm D1: 10.16+/-0.38 mm
	CAK36F-10-50000-K-FE2-E	10	11	50000	φ36 × 10 mm	D: 36+/-0.5 mm; H: 10+/-0.5 mm L1: 7 mm; L2: 5.84+/-0.76 mm D1: 10.16+/-0.38 mm
	CAK36F-10-80000-K-FE3-E	10	11	80000	φ36 × 12 mm	D: 36+/-0.5 mm; H: 12+/-0.5 mm L1: 7 mm; L2: 5.84+/-0.76 mm D1: 10.16+/-0.38 mm
	CAK36F-10-120000-K-FE4-E	10	11	120000	φ36 × 16 mm	D: 36+/-0.5 mm; H: 16+/-0.5 mm L1: 7 mm; L2: 5.84+/-0.76 mm D1: 10.16+/-0.38 mm
	CAK36F-10-150000-K-FE5-E	10	11	150000	φ36 × 18 mm	D: 36+/-0.5 mm; H: 18+/-0.5 mm L1: 7 mm; L2: 5.84+/-0.76 mm D1: 10.16+/-0.38 mm
	CAK36F-10-160000-K-FE6-E	10	11	160000	φ36 × 20 mm	D: 36+/-0.5 mm; H: 20+/-0.5 mm L1: 7 mm; L2: 5.84+/-0.76 mm D1: 10.16+/-0.38 mm
	CAK36F-10-200000-K-FE7-E	10	11	200000	φ36 × 24 mm	D: 36+/-0.5 mm; H: 24+/-0.5 mm L1: 7 mm; L2: 5.84+/-0.76 mm D1: 10.16+/-0.38 mm
	CAK36F-16-24000-K-FE1-E	16	17.6	24000	φ36 × 8 mm	D: 36+/-0.5 mm; H: 8+/-0.5 mm L1: 7 mm; L2: 5.84+/-0.76 mm D1: 10.16+/-0.38 mm
	CAK36F-16-30000-K-FE2-E	16	17.6	30000	φ36 × 10 mm	D: 36+/-0.5 mm; H: 10+/-0.5 mm L1: 7 mm; L2: 5.84+/-0.76 mm D1: 10.16+/-0.38 mm
	CAK36F-16-48000-K-FE3-E	16	17.6	48000	φ36 × 12 mm	D: 36+/-0.5 mm; H: 12+/-0.5 mm L1: 7 mm; L2: 5.84+/-0.76 mm D1: 10.16+/-0.38 mm
	CAK36F-16-72000-K-FE4-E	16	17.6	72000	φ36 × 16 mm	D: 36+/-0.5 mm; H: 16+/-0.5 mm L1: 7 mm; L2: 5.84+/-0.76 mm D1: 10.16+/-0.38 mm
	CAK36F-16-90000-K-FE5-E	16	17.6	90000	φ36 × 18 mm	D: 36+/-0.5 mm; H: 18+/-0.5 mm L1: 7 mm; L2: 5.84+/-0.76 mm D1: 10.16+/-0.38 mm
	CAK36F-16-96000-K-FE6-E	16	17.6	96000	φ36 × 20 mm	D: 36+/-0.5 mm; H: 20+/-0.5 mm L1: 7 mm; L2: 5.84+/-0.76 mm D1: 10.16+/-0.38 mm
	CAK36F-16-120000-K-FE7-E	16	17.6	120000	φ36 × 24 mm	D: 36+/-0.5 mm; H: 24+/-0.5 mm L1: 7 mm; L2: 5.84+/-0.76 mm D1: 10.16+/-0.38 mm
	CAK36F-25-15000-K-FE1-E	25	27.5	15000	φ36 × 8 mm	D: 36+/-0.5 mm; H: 8+/-0.5 mm L1: 7 mm; L2: 5.84+/-0.76 mm D1: 10.16+/-0.38 mm
	CAK36F-25-18000-K-FE2-E	25	27.5	18000	φ36 × 10 mm	D: 36+/-0.5 mm; H: 10+/-0.5 mm L1: 7 mm; L2: 5.84+/-0.76 mm D1: 10.16+/-0.38 mm
	CAK36F-25-30000-K-FE3-E	25	27.5	30000	φ36 × 12 mm	D: 36+/-0.5 mm; H: 12+/-0.5 mm L1: 7 mm; L2: 5.84+/-0.76 mm D1: 10.16+/-0.38 mm
	CAK36F-25-45000-K-FE4-E	25	27.5	45000	φ36 × 16 mm	D: 36+/-0.5 mm; H: 16+/-0.5 mm L1: 7 mm; L2: 5.84+/-0.76 mm D1: 10.16+/-0.38 mm
	CAK36F-25-54000-K-FE5-E	25	27.5	54000	φ36 × 18 mm	D: 36+/-0.5 mm; H: 18+/-0.5 mm L1: 7 mm; L2: 5.84+/-0.76 mm D1: 10.16+/-0.38 mm
	CAK36F-25-60000-K-FE6-E	25	27.5	60000	φ36 × 20 mm	D: 36+/-0.5 mm; H: 20+/-0.5 mm L1: 7 mm; L2: 5.84+/-0.76 mm D1: 10.16+/-0.38 mm
	CAK36F-25-75000-K-FE7-E	25	27.5	75000	φ36 × 24 mm	D: 36+/-0.5 mm; H: 24+/-0.5 mm L1: 7 mm; L2: 5.84+/-0.76 mm D1: 10.16+/-0.38 mm
	CAK36F-35-9000-K-FE1-E	35	38.5	9000	φ36 × 8 mm	D: 36+/-0.5 mm; H: 8+/-0.5 mm L1: 7 mm; L2: 5.84+/-0.76 mm D1: 10.16+/-0.38 mm
	CAK36F-35-12000-K-FE2-E	35	38.5	12000	φ36 × 10 mm	D: 36+/-0.5 mm; H: 10+/-0.5 mm L1: 7 mm; L2: 5.84+/-0.76 mm D1: 10.16+/-0.38 mm
	CAK36F-35-18000-K-FE3-E	35	38.5	18000	φ36 × 12 mm	D: 36+/-0.5 mm; H: 12+/-0.5 mm L1: 7 mm; L2: 5.84+/-0.76 mm D1: 10.16+/-0.38 mm
	CAK36F-35-27000-K-FE4-E	35	38.5	27000	φ36 × 16 mm	D: 36+/-0.5 mm; H: 16+/-0.5 mm L1: 7 mm; L2: 5.84+/-0.76 mm D1: 10.16+/-0.38 mm
	CAK36F-35-33000-K-FE5-E	35	38.5	33000	φ36 × 18 mm	D: 36+/-0.5 mm; H: 18+/-0.5 mm L1: 7 mm; L2: 5.84+/-0.76 mm D1: 10.16+/-0.38 mm
	CAK36F-35-36000-K-FE6-E	35	38.5	36000	φ36 × 20 mm	D: 36+/-0.5 mm; H: 20+/-0.5 mm L1: 7 mm; L2: 5.84+/-0.76 mm D1: 10.16+/-0.38 mm
	CAK36F-35-45000-K-FE7-E	35	38.5	45000	φ36 × 24 mm	D: 36+/-0.5 mm; H: 24+/-0.5 mm L1: 7 mm; L2: 5.84+/-0.76 mm D1: 10.16+/-0.38 mm
	CAK36F-50-6000-K-FE1-E	50	55	6000	φ36 × 8 mm	D: 36+/-0.5 mm; H: 8+/-0.5 mm L1: 7 mm; L2: 5.84+/-0.76 mm D1: 10.16+/-0.38 mm
	CAK36F-50-8000-K-FE2-E	50	55	8000	φ36 × 10 mm	D: 36+/-0.5 mm; H: 10+/-0.5 mm L1: 7 mm; L2: 5.84+/-0.76 mm D1: 10.16+/-0.38 mm
	CAK36F-50-12000-K-FE3-E	50	55	12000	φ36 × 12 mm	D: 36+/-0.5 mm; H: 12+/-0.5 mm L1: 7 mm; L2: 5.84+/-0.76 mm D1: 10.16+/-0.38 mm
	CAK36F-50-18000-K-FE4-E	50	55	18000	φ36 × 16 mm	D: 36+/-0.5 mm; H: 16+/-0.5 mm L1: 7 mm; L2: 5.84+/-0.76 mm D1: 10.16+/-0.38 mm
	CAK36F-50-24000-K-FE5-E	50	55	24000	φ36 × 18 mm	D: 36+/-0.5 mm; H: 18+/-0.5 mm L1: 7 mm; L2: 5.84+/-0.76 mm D1: 10.16+/-0.38 mm
	CAK36F-50-24000-K-FE6-E	50	55	24000	φ36 × 20 mm	D: 36+/-0.5 mm; H: 20+/-0.5 mm L1: 7 mm; L2: 5.84+/-0.76 mm D1: 10.16+/-0.38 mm
	CAK36F-50-30000-K-FE7-E	50	55	30000	φ36 × 24 mm	D: 36+/-0.5 mm; H: 24+/-0.5 mm L1: 7 mm; L2: 5.84+/-0.76 mm D1: 10.16+/-0.38 mm
	CAK36F-63-3000-K-FE1-E	63	69.3	3000	φ36 × 8 mm	D: 36+/-0.5 mm; H: 8+/-0.5 mm L1: 7 mm; L2: 5.84+/-0.76 mm D1: 10.16+/-0.38 mm
	CAK36F-63-4000-K-FE2-E	63	69.3	4000	φ36 × 10 mm	D: 36+/-0.5 mm; H: 10+/-0.5 mm L1: 7 mm; L2: 5.84+/-0.76 mm D1: 10.16+/-0.38 mm
	CAK36F-63-6000-K-FE3-E	63	69.3	6000	φ36 × 12 mm	D: 36+/-0.5 mm; H: 12+/-0.5 mm L1: 7 mm; L2: 5.84+/-0.76 mm D1: 10.16+/-0.38 mm
	CAK36F-63-9000-K-FE4-E	63	69.3	9000	φ36 × 16 mm	D: 36+/-0.5 mm; H: 16+/-0.5 mm L1: 7 mm; L2: 5.84+/-0.76 mm D1: 10.16+/-0.38 mm
	CAK36F-63-12000-K-FE5-E	63	69.3	12000	φ36 × 18 mm	D: 36+/-0.5 mm; H: 18+/-0.5 mm L1: 7 mm; L2: 5.84+/-0.76 mm D1: 10.16+/-0.38 mm
	CAK36F-63-12000-K-FE6-E	63	69.3	12000	φ36 × 20 mm	D: 36+/-0.5 mm; H: 20+/-0.5 mm L1: 7 mm; L2: 5.84+/-0.76 mm D1: 10.16+/-0.38 mm
	CAK36F-63-15000-K-FE7-E	63	69.3	15000	φ36 × 24 mm	D: 36+/-0.5 mm; H: 24+/-0.5 mm L1: 7 mm; L2: 5.84+/-0.76 mm D1: 10.16+/-0.38 mm
	CAK36F-80-2000-K-FE1-E	80	88	2000	φ36 × 8 mm	D: 36+/-0.5 mm; H: 8+/-0.5 mm L1: 7 mm; L2: 5.84+/-0.76 mm D1: 10.16+/-0.38 mm
	CAK36F-80-3000-K-FE2-E	80	88	3000	φ36 × 10 mm	D: 36+/-0.5 mm; H: 10+/-0.5 mm L1: 7 mm; L2: 5.84+/-0.76 mm D1: 10.16+/-0.38 mm
	CAK36F-80-4000-K-FE3-E	80	88	4000	φ36 × 12 mm	D: 36+/-0.5 mm; H: 12+/-0.5 mm L1: 7 mm; L2: 5.84+/-0.76 mm D1: 10.16+/-0.38 mm
	CAK36F-80-6000-K-FE4-E	80	88	6000	φ36 × 16 mm	D: 36+/-0.5 mm; H: 16+/-0.5 mm L1: 7 mm; L2: 5.84+/-0.76 mm D1: 10.16+/-0.38 mm
	CAK36F-80-8000-K-FE5-E	80	88	8000	φ36 × 18 mm	D: 36+/-0.5 mm; H: 18+/-0.5 mm L1: 7 mm; L2: 5.84+/-0.76 mm D1: 10.16+/-0.38 mm
	CAK36F-80-8000-K-FE6-E	80	88	8000	φ36 × 20 mm	D: 36+/-0.5 mm; H: 20+/-0.5 mm L1: 7 mm; L2: 5.84+/-0.76 mm D1: 10.16+/-0.38 mm
	CAK36F-80-10000-K-FE7-E	80	88	10000	φ36 × 24 mm	D: 36+/-0.5 mm; H: 24+/-0.5 mm L1: 7 mm; L2: 5.84+/-0.76 mm D1: 10.16+/-0.38 mm
	CAK36F-100-900-K-FE1-E	100	110	900	φ36 × 8 mm	D: 36+/-0.5 mm; H: 8+/-0.5 mm L1: 7 mm; L2: 5.84+/-0.76 mm D1: 10.16+/-0.38 mm
	CAK36F-100-1200-K-FE2-E	100	110	1200	φ36 × 10 mm	D: 36+/-0.5 mm; H: 10+/-0.5 mm L1: 7 mm; L2: 5.84+/-0.76 mm D1: 10.16+/-0.38 mm
	CAK36F-100-1800-K-FE3-E	100	110	1800	φ36 × 12 mm	D: 36+/-0.5 mm; H: 12+/-0.5 mm L1: 7 mm; L2: 5.84+/-0.76 mm D1: 10.16+/-0.38 mm
	CAK36F-100-2700-K-FE4-E	100	110	2700	φ36 × 16 mm	D: 36+/-0.5 mm; H: 16+/-0.5 mm L1: 7 mm; L2: 5.84+/-0.76 mm D1: 10.16+/-0.38 mm
	CAK36F-100-3600-K-FE5-E	100	110	3600	φ36 × 18 mm	D: 36+/-0.5 mm; H: 18+/-0.5 mm L1: 7 mm; L2: 5.84+/-0.76 mm D1: 10.16+/-0.38 mm
	CAK36F-100-3600-K-FE6-E	100	110	3600	φ36 × 20 mm	D: 36+/-0.5 mm; H: 20+/-0.5 mm L1: 7 mm; L2: 5.84+/-0.76 mm D1: 10.16+/-0.38 mm
	CAK36F-100-4500-K-FE7-E	100	110	4500	φ36 × 24 mm	D: 36+/-0.5 mm; H: 24+/-0.5 mm L1: 7 mm; L2: 5.84+/-0.76 mm D1: 10.16+/-0.38 mm
	CAK36F-125-800-K-FE1-E	125	137.5	800	φ36 × 8 mm	D: 36+/-0.5 mm; H: 8+/-0.5 mm L1: 7 mm; L2: 5.84+/-0.76 mm D1: 10.16+/-0.38 mm
	CAK36F-125-1100-K-FE2-E	125	137.5	1100	φ36 × 10 mm	D: 36+/-0.5 mm; H: 10+/-0.5 mm L1: 7 mm; L2: 5.84+/-0.76 mm D1: 10.16+/-0.38 mm
	CAK36F-125-1600-K-FE3-E	125	137.5	1600	φ36 × 12 mm	D: 36+/-0.5 mm; H: 12+/-0.5 mm L1: 7 mm; L2: 5.84+/-0.76 mm D1: 10.16+/-0.38 mm
	CAK36F-125-2400-K-FE4-E	125	137.5	2400	φ36 × 16 mm	D: 36+/-0.5 mm; H: 16+/-0.5 mm L1: 7 mm; L2: 5.84+/-0.76 mm D1: 10.16+/-0.38 mm
	CAK36F-125-3300-K-FE5-E	125	137.5	3300	φ36 × 18 mm	D: 36+/-0.5 mm; H: 18+/-0.5 mm L1: 7 mm; L2: 5.84+/-0.76 mm D1: 10.16+/-0.38 mm
	CAK36F-125-3300-K-FE6-E	125	137.5	3300	φ36 × 20 mm	D: 36+/-0.5 mm; H: 20+/-0.5 mm L1: 7 mm; L2: 5.84+/-0.76 mm D1: 10.16+/-0.38 mm
	CAK36F-125-4000-K-FE7-E	125	137.5	4000	φ36 × 24 mm	D: 36+/-0.5 mm; H: 24+/-0.5 mm L1: 7 mm; L2: 5.84+/-0.76 mm D1: 10.16+/-0.38 mm
