RF Filter Highpass OWBP-6300-12

RF Filter Highpass OWBP-6300-12

Model OWBP-6300-12 is an E band waveguide highpass filter with a passband frequency of 63 GHz and higher and a rejection frequency from DC to 59 GHz.

The filter provides a nominal insertion loss of 0.8 dB across its passband with a low ripple and a typical rejection of 40 dB. Since the low end cutoff frequency can be changed by modifying the design, custom designs can be offered under different model numbers.

SKU: OWBP-6300-12 Categories: Passive Devices, RF Filter Highpass, RF Filters

Description

PDF

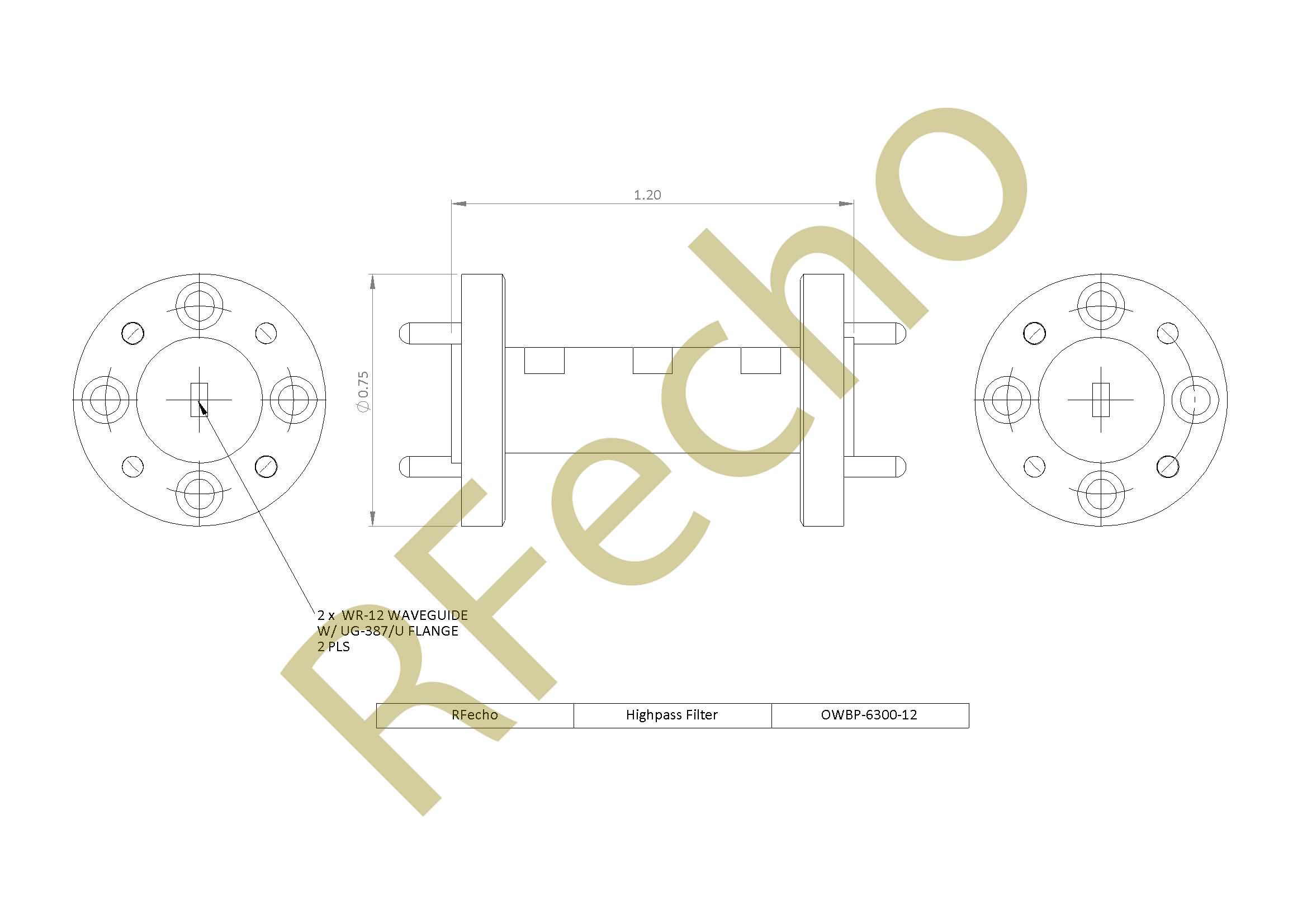

Outline

RF Filter Highpass OWBP-6300-12

Additional information

Filter Type

RF Filter Highpass

Min Pass Band Freq. (GHz)

63

Insertion Loss (dB)

0.8

Rejection (dB)

40

Min Rejection Freq. Highside

59

Waveguide Port

WR-12
