Among RF Components, RFecho supplies premium quality with a wide range of RF Adapters. They are used in the connection between the instrument cables with a different interface. The adapter can be used in applications requiring dissimilar RF interfaces to be connected. RFecho’s adapter is passive components and used to transmit signals from one connector interface to another.
RFecho’s Adapter offers the impedance of 50 ohms, where the durability of 500 cycles. The adapter operates from -55℃ up to +165℃. RFecho’s Adapter wide range includes TNC Adapters, TNCA Adapter, BNC Adapters, N Adapters, SMA Adapters, SSMA Adapters, 3.5mm Adapters, 2.92mm Adapters, 2.4mm Adapters, 1.85mm Adapters, 7/16 Adapters, APC-7 Adapters, NC Adapters and NCA Adapters. RFecho’s RF adapters are available in male, female, jack, plug, and sexless genders.

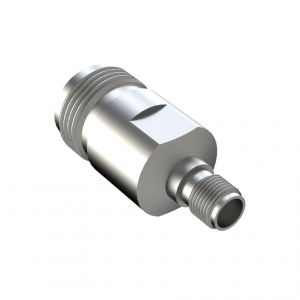

RFecho offers the two types of RF Adapters, IN Series Adapters and Between Series Adapters. A few of the highlights of RF Cables are:



  • Frequency Range: DC to 65 GHz
  • VSWR: 1.10 to 1.25
  • IN Series and Between Series
  • On-demand supply
  • Quick delivery

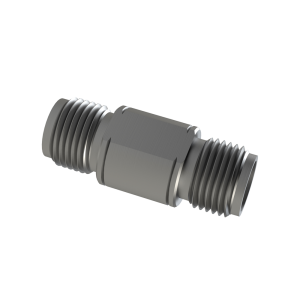

In Series RF Adapter have the same connector configuration on either side of the adapter. Some examples are SMA Male to Female, SMA Male to Male, N-Type Male to Female and so on. Between Series RF Adapters have different connector configurations on either side of the adapter. For instance, SMA Male to N-Type Female, BNC Female to N-Type Male, etc. These RF Adapters have different connector configurations.
Another RF Adapter type is a Waveguide to Coax Adapter. This is another type of adapter that has a connector interface on one side and a waveguide interface on the other side. They are used to connect waveguide components to regular RF systems.
If you can’t find your required adapter on our website, your custom order is just a form away. Get in contact with our technical department. We have a wide range of adapters that would fulfill your requirements.

Grid View
ImageSkuMin. FrequencyMax. FrequencyConector 1Connector 2Gender 1Gender 2
11 GHz, N Female to TNC Female, Between AdaptersOA345300Z01DC11NTNCFemaleFemale
11 GHz, N Female to TNC Male, Between AdaptersOA345301Z01DC11NTNCFemaleMale
11 GHz, N Male to TNC Female, Between AdaptersOA345310Z01DC11NTNCMaleFemale
11 GHz, N Male to TNC Male, Between AdaptersOA345311Z01DC11NTNCMaleMale
11 GHz, NC Male to SMA Female, Between AdaptersOA535510Z01DC11NCSMAMaleFemale
11 GHz, TNC Female to SMA Male, Between AdaptersOA535501Z01DC11NCSMAFemaleMale
11 GHz, TNC Female to SMA Female, Between AdaptersOA535500Z01DC11NCSMAFemaleFemale
11 GHz, TNC Female to TNC Female, IN AdaptersOA535300Z01DC11TNCTNCFemaleFemale
11 GHz, TNC Male to SMA Male, Between AdaptersOA535511Z01DC11NCSMAMaleMale
11 GHz, TNC Male to TNC Female, IN AdaptersOA535310Z01DC11TNCTNCMaleFemale
11 GHz, TNC Male to TNC Male, IN AdaptersOA535311Z01DC11TNCTNCMaleMale
18 GHz, N Female to N Female, IN AdaptersOA343400Z01DC18NNFemaleFemale
18 GHz, N Female to N Female, IN AdaptersOA343400FS10DC18NNFemaleFemale
18 GHz, N Female to N Female, IN AdaptersOA343400Y01DC18NNFemaleFemale
18 GHz, N Male to N Female, IN AdaptersOA343410Z01DC18NNMaleFemale
18 GHz, N Male to N Female, IN AdaptersOA343410FS10DC18NNMaleFemale
18 GHz, N Male to N Male, IN AdaptersOA343411Z01DC18NNMaleMale
18 GHz, TNCA Female to SMA Female, Between AdaptersOA545500Z01DC18NCASMAFemaleFemale
18 GHz, TNCA Female to SMA Female, Between AdaptersOA545500FS09DC18NCASMAFemaleFemale
18 GHz, TNCA Female to SMA Male, Between AdaptersOA545501Z01DC18NCASMAFemaleMale
18 GHz, TNCA Female to TNCA Female, IN AdaptersOA545400Z01DC18TNCATNCAFemaleFemale
18 GHz, TNCA Female to TNCA Female, IN AdaptersOA545400FS09DC18TNCATNCAFemaleFemale
18 GHz, TNCA Female to TNCA Female, IN AdaptersOA545400Y01DC18TNCATNCAFemaleFemale
18 GHz, TNCA Male to SMA Female, Between AdaptersOA545510Z01DC18NCASMAMaleFemale
18 GHz, TNCA Male to SMA Male, Between AdaptersOA545511Z01DC18NCASMAMaleMale
18 GHz, TNCA Male to TNCA Female, IN AdaptersOA545410Z01DC18TNCATNCAMaleFemale
18 GHz, TNCA Male to TNCA Male, IN AdaptersOA545411Z01DC18TNCATNCAMaleMale
27 GHz, 2.4mm Female to SMA Female, Between AdaptersOA375500Z01DC272.4mmSMAFemaleFemale
27 GHz, 2.4mm Female to SMA Male, Between AdaptersOA375501Z01DC272.4mmSMAFemaleMale
27 GHz, 2.4mm Male to SMA Female, Between AdaptersOA375510Z01DC272.4mmSMAMaleFemale
27 GHz, 2.4mm Male to SMA Male, Between AdaptersOA375511Z01DC272.4mmSMAMaleMale
27 GHz, 2.92mm Female to SMA Female, Between AdaptersOA365500Z01DC272.92mmSMAFemaleFemale
27 GHz, 2.92mm Female to SMA Male, Between AdaptersOA365501Z01DC272.92mmSMAFemaleMale
27 GHz, 2.92mm Male to SMA Female, Between AdaptersOA365510Z01DC272.92mmSMAMaleFemale
27 GHz, 2.92mm Male to SMA Male, Between AdaptersOA365511Z01DC272.92mmSMAMaleMale
27 GHz, 3.5mm Female to SMA Female, Between AdaptersOA355500Z01DC273.5mmSMAFemaleFemale
27 GHz, 3.5mm Female to SMA Male, Between AdaptersOA355501Z01DC273.5mmSMAFemaleMale
27 GHz, 3.5mm Male to SMA Female, Between AdaptersOA355510Z01DC273.5mmSMAMaleFemale
27 GHz, 3.5mm Male to SMA Male, Between AdaptersOA355511Z01DC273.5mmSMAMaleMale
27 GHz, SMA Female to SMA Female, IN AdaptersOA555500Z01DC27SMASMAFemaleFemale
27 GHz, SMA Female to SMA Female, IN AdaptersOA555500FS01DC27SMASMAFemaleFemale
27 GHz, SMA Female to SMA Female, IN AdaptersOA555500FS01ADC27SMASMAFemaleFemale
27 GHz, SMA Female to SMA Female, IN AdaptersOA555500FS01BDC27SMASMAFemaleFemale
27 GHz, SMA Female to SMA Female, IN AdaptersOA555500YS02DC27SMASMAFemaleFemale
27 GHz, SMA Female to SMA Female, IN AdaptersOA555500Y03DC27SMASMAFemaleFemale
27 GHz, SMA Female to SSMA Female, Between AdaptersOA555700Z01DC27SMASSMAFemaleFemale
27 GHz, SMA Female to SSMA Male, Between AdaptersOA555701Z01DC27SMASSMAFemaleMale
27 GHz, SMA Male to SMA Female, IN AdaptersOA555510Z01DC27SMASMAMaleFemale
27 GHz, SMA Male to SMA Female, IN AdaptersOA555510FS09ADC27SMASMAMaleFemale
27 GHz, SMA Male to SMA Female, IN AdaptersOA555510YS01DC27SMASMAMaleFemale
27 GHz, SMA Male to SMA Male, IN AdaptersOA555511Z01DC27SMASMAMaleMale
27 GHz, SMA Male to SMA Male, IN AdaptersOA555511FS09ADC27SMASMAMaleMale
27 GHz, SMA Male to SSMA Female, Between AdaptersOA555710Z01DC27SMASSMAMaleFemale
27 GHz, SMA Male to SSMA Male, Between AdaptersOA555711Z01DC27SMASSMAMaleMale
33 GHz, 3.5mm Female to 1.85mm Female, Between AdaptersOA353800Z01DC333.5mm1.85mmFemaleFemale
33 GHz, 3.5mm Female to 1.85mm Male, Between AdaptersOA353801Z01DC333.5mm1.85mmFemaleMale
33 GHz, 3.5mm Female to 2.4mm Female, Between AdaptersOA353700Z01DC333.5mm2.4mmFemaleFemale
33 GHz, 3.5mm Female to 2.4mm Male, Between AdaptersOA353701Z01DC333.5mm2.4mmFemaleMale
33 GHz, 3.5mm Female to 2.92mm Female, Between AdaptersOA353600Z01DC333.5mm2.92mmFemaleFemale
33 GHz, 3.5mm Female to 2.92mm Male, Between AdaptersOA353601Z01DC333.5mm2.92mmFemaleMale
33 GHz, 3.5mm Female to 3.5mm Female, IN AdaptersOA353500Z01DC333.5mm3.5mmFemaleFemale
33 GHz, 3.5mm Female to 3.5mm Female, IN AdaptersOA353500FY01DC333.5mm3.5mmFemaleFemale
33 GHz, 3.5mm Female to 3.5mm Female, IN AdaptersOA353500FS01DC333.5mm3.5mmFemaleFemale
33 GHz, 3.5mm Female to 3.5mm Female, IN AdaptersOA353500Y02DC333.5mm3.5mmFemaleFemale
33 GHz, 3.5mm Female to 3.5mm Female, IN AdaptersOA353500YS02DC333.5mm3.5mmFemaleFemale
33 GHz, 3.5mm Male to 1.85mm Female, Between AdaptersOA353810Z01DC333.5mm1.85mmMaleFemale
33 GHz, 3.5mm Male to 1.85mm Male, Between AdaptersOA353811Z01DC333.5mm1.85mmMaleMale
33 GHz, 3.5mm Male to 2.4mm Female, Between AdaptersOA353710Z01DC333.5mm2.4mmMaleFemale
33 GHz, 3.5mm Male to 2.4mm Male, Between AdaptersOA353711Z01DC333.5mm2.4mmMaleMale
33 GHz, 3.5mm Male to 2.92mm Female, Between AdaptersOA353610Z01DC333.5mm2.92mmMaleFemale
33 GHz, 3.5mm Male to 2.92mm Male, Between AdaptersOA353611Z01DC333.5mm2.92mmMaleMale
33 GHz, 3.5mm Male to 3.5mm Female, IN AdaptersOA353510Z01DC333.5mm3.5mmMaleFemale
33 GHz, 3.5mm Male to 3.5mm Male, IN AdaptersOA353511Z01DC333.5mm3.5mmMaleMale
40 GHz, 2.4mm Female to SSMA Female, Between AdaptersOA375700Z01DC402.4mmSSMAFemaleFemale
40 GHz, 2.4mm Female to SSMA Male, Between AdaptersOA375701Z01DC402.4mmSSMAFemaleMale
40 GHz, 2.4mm Male to SSMA Female, Between AdaptersOA375710Z01DC402.4mmSSMAMaleFemale
40 GHz, 2.4mm Male to SSMA Male, Between AdaptersOA375711Z01DC402.4mmSSMAMaleMale
40 GHz, 2.92mm Female to 1.85mm Female, Between AdaptersOA363800Z01DC402.92mm1.85mmFemaleFemale
40 GHz, 2.92mm Female to 1.85mm Male, Between AdaptersOA363801Z01DC402.92mm1.85mmFemaleMale
40 GHz, 2.92mm Female to 2.4mm Female, Between AdaptersOA363700Z01DC402.92mm2.4mmFemaleFemale
40 GHz, 2.92mm Female to 2.4mm Female, Between AdaptersOA363700F01DC402.92mm2.4mmFemaleFemale
40 GHz, 2.92mm Female to 2.4mm Male, Between AdaptersOA363701Z01DC402.92mm2.4mmFemaleMale
40 GHz, 2.92mm Female to 2.92mm Female, IN AdaptersOA363600Z01DC402.92mm2.92mmFemaleFemale
40 GHz, 2.92mm Female to 2.92mm Female, IN AdaptersOA363600FS01DC402.92mm2.92mmFemaleFemale
40 GHz, 2.92mm Female to 2.92mm Female, IN AdaptersOA363600FS01ADC402.92mm2.92mmFemaleFemale
40 GHz, 2.92mm Female to 2.92mm Female, IN AdaptersOA363600Y01DC402.92mm2.92mmFemaleFemale
40 GHz, 2.92mm Female to 2.92mm Female, IN AdaptersOA363600YS02DC402.92mm2.92mmFemaleFemale
40 GHz, 2.92mm Female to 2.92mm Female, IN AdaptersOA363600YS02ADC402.92mm2.92mmFemaleFemale
40 GHz, 2.92mm Female to SSMA Female, Between AdaptersOA365700Z01DC402.92mmSSMAFemaleFemale
40 GHz, 2.92mm Female to SSMA Male, Between AdaptersOA365701Z01DC402.92mmSSMAFemaleMale
40 GHz, 2.92mm Male to 1.85mm Female, Between AdaptersOA363810Z01DC402.92mm1.85mmMaleFemale
40 GHz, 2.92mm Male to 1.85mm Male, Between AdaptersOA363811Z01DC402.92mm1.85mmMaleMale
40 GHz, 2.92mm Male to 2.4mm Female, Between AdaptersOA363710Z01DC402.92mm2.4mmMaleFemale
40 GHz, 2.92mm Male to 2.4mm Male, Between AdaptersOA363711Z01DC402.92mm2.4mmMaleMale
40 GHz, 2.92mm Male to 2.92mm Female, IN AdaptersOA363610Z01DC402.92mm2.92mmMaleFemale
40 GHz, 2.92mm Male to 2.92mm Female, IN AdaptersOA363610FS01DC402.92mm2.92mmMaleFemale
40 GHz, 2.92mm Male to 2.92mm Female, IN AdaptersOA363610YS01DC402.92mm2.92mmMaleFemale
40 GHz, 2.92mm Male to 2.92mm Male, IN AdaptersOA363611Z01DC402.92mm2.92mmMaleMale
40 GHz, 2.92mm Male to 2.92mm Male, IN AdaptersOA363611YS01DC402.92mm2.92mmMaleMale
40 GHz, 2.92mm Male to SSMA Female, Between AdaptersOA365710Z01DC402.92mmSSMAMaleFemale
40 GHz, 2.92mm Male to SSMA Male, Between AdaptersOA365711Z01DC402.92mmSSMAMaleMale
40 GHz, SSMA Female to SSMA Female, IN AdaptersOA575700Z01DC40SSMASSMAFemaleFemale
40 GHz, SSMA Male to SSMA Female, IN AdaptersOA575710Z01DC40SSMASSMAMaleFemale
40 GHz, SSMA Male to SSMA Male, IN AdaptersOA575711Z01DC40SSMASSMAMaleMale
50 GHz, 2.4mm Female to 1.85mm Female, Between AdaptersOA373800Z01DC502.4mm1.85mmFemaleFemale
50 GHz, 2.4mm Female to 1.85mm Male, Between AdaptersOA373801Z01DC502.4mm1.85mmFemaleMale
50 GHz, 2.4mm Female to 2.4mm Female, IN AdaptersOA373700Z01DC502.4mm2.4mmFemaleFemale
50 GHz, 2.4mm Female to 2.4mm Female, IN AdaptersOA373700FS01DC502.4mm2.4mmFemaleFemale
50 GHz, 2.4mm Female to 2.4mm Female, IN AdaptersOA373700YS02CDC502.4mm2.4mmFemaleFemale
50 GHz, 2.4mm Male to 1.85mm Female, Between AdaptersOA373810Z01DC502.4mm1.85mmMaleFemale
50 GHz, 2.4mm Male to 1.85mm Male, Between AdaptersOA373811Z01DC502.4mm1.85mmMaleMale
50 GHz, 2.4mm Male to 2.4mm Female, IN AdaptersOA373710Z01DC502.4mm2.4mmMaleFemale
50 GHz, 2.4mm Male to 2.4mm Male, IN AdaptersOA373711Z01DC502.4mm2.4mmMaleMale
65 GHz, 1.85mm Female to 1.85mm Female, IN AdaptersOA383800Z01DC651.85mm1.85mmFemaleFemale
65 GHz, 1.85mm Female to 1.85mm Female, IN AdaptersOA383800YS02DC651.85mm1.85mmFemaleFemale
65 GHz, 1.85mm Male to 1.85mm Female, IN AdaptersOA383810Z01DC651.85mm1.85mmMaleFemale
65 GHz, 1.85mm Male to 1.85mm Female, IN AdaptersOA383810YS01DC651.85mm1.85mmMaleFemale
65 GHz, 1.85mm Male to 1.85mm Male, IN AdaptersOA383811Z01DC651.85mm1.85mmMaleMale
8 GHz, BNC Female to BNC Female, IN AdaptersOA525200Z01DC8BNCBNCFemaleFemale
8 GHz, BNC Female to SMA Female, Between AdaptersOA525500Z01DC8BNCSMAFemaleFemale
8 GHz, BNC Female to SMA Male, Between AdaptersOA525501Z01DC8BNCSMAFemaleMale
8 GHz, BNC Male to BNC Female, IN AdaptersOA525210Z01DC8BNCBNCMaleFemale
8 GHz, BNC Male to BNC Male, IN AdaptersOA525211Z01DC8BNCBNCMaleMale
8 GHz, BNC Male to SMA Female, Between AdaptersOA525510Z01DC8BNCSMAMaleFemale
8 GHz, BNC Male to SMA Male, Between AdaptersOA525511Z01DC8BNCSMAMaleMale
8 GHz, N Female to BNC Female, Between AdaptersOA345200Z01DC8NBNCFemaleFemale
8 GHz, N Female to BNC Male, Between AdaptersOA345201Z01DC8NBNCFemaleMale
8 GHz, N Male to BNC Female, Between AdaptersOA345210Z01DC8NBNCMaleFemale
8 GHz, N Male to BNC Male, Between AdaptersOA345211Z01DC8NBNCMaleMale
Adapters ScrewOA345300Z01-001
