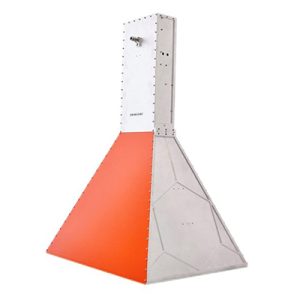

RF Antenna, Standard Gain Horn AntennaOLB-650-15 Pyramidal Standard Gain Horn Antenna
Frequency: 1.13 – 1.73GHz
Gain: 15dBi.
VSWR: 1.3Typ.
Material: Al
Waveguide: WR-650
3 dB Beamwidth: H 30° / V 30°
This model OLB-650-15 is a Standard gain horn antenna can be applied to various microwave… -
RF Antenna, Standard Gain Horn AntennaOLB-430-15 Pyramidal Standard Gain Horn Antenna
Frequency: 1.72 – 2.61 GHz
Gain: 15dBi.
VSWR: 1.3Typ.
Material: Al
Waveguide: WR-430
3 dB Beamwidth: H 30° / V 30°
OLB-430-15 Pyramidal Standard Gain Horn Antenna can be applied to various microwave fields, including… -
RF Antenna, Standard Gain Horn AntennaOLB-284-15 Pyramidal Standard Gain Horn Antenna
Frequency: 2.6 – 3.95 GHz
Gain: 15dBi.
VSWR: 1.3Typ.
Material: Al
Waveguide: WR-284
3 dB Beamwidth: H 30° / V 30°
OLB-284-15 Pyramidal standard gain horn Antenna can be applied to various microwave fields, including… -
RF Antenna, Standard Gain Horn AntennaOLB-187-15 Pyramidal Standard Gain Horn Antenna
Frequency: 3.94-5.99GHz
Gain: 15dBi.
VSWR: 1.3Typ.
Material: Al
Waveguide: WR-187
3 dB Beamwidth: H 30° / V 30°
OLB-187-15 Pyramidal standard gain horn antenna can be applied to various microwave fields, including monitoring marine environments,… -
RF Antenna, Standard Gain Horn AntennaOLB-137-20 pyramidal standard gain horn antenna
Frequency: 5.38 – 8.17 GHz
Gain: 20dBi.
VSWR: 1.3Typ.
Material: Al
Waveguide: WR-137
3 dB Beamwidth: H 18° / V 18°
This OLB-137-20 pyramidal standard gain horn antenna can be applied to various microwave fields,… -
RF Antenna, Standard Gain Horn AntennaOLB-90-20 Pyramidal Standard Gain Horn Antenna
Frequency: 8.2 – 12.5GHz
Gain: 20dBi.
VSWR: 1.3Typ.
Material: Al
Waveguide: WR-90
3 dB Beamwidth: H 18° / V 18°
This OLB-90-20 Pyramidal Standard Gain Horn Antenna can be applied to various microwave fields, including… -
RF Antenna, Standard Gain Horn AntennaOLB-62-20 pyramidal standard gain horn antenna
Frequency: 11.9 – 18GHz
Gain: 20dBi.
VSWR: 1.3Typ.
Material: Cu
Waveguide: WR-62
3 dB Beamwidth: H 18° / V 18°
Manufactured using machined aluminum sections
OLB-62-20 Pyramidal standard gain horn antenna has an extremely low reflection…
