Active Device, Power Amplifier, Routing
1.6W Ultra Wide Band Power Amplifier . 1GHz~45GHz . OPA3201004500A
RFECHO Power Amplifier from 1GHz to 45GHz，RFECHO power amplifier can perfectly linearly amplify the input signals in a wide dynamic range within a frequency band.the application of Wide Band Medium…
-
Active Device, Power Amplifier, Routing
100W Solid State EMC Benchtop Power Amplifier . 2GHz~6GHz . OEMCA02000600A
RFECHO Power Amplifier from 2GHz to 6GHz，RFECHO power amplifier can perfectly linearly amplify the input signals in a wide dynamic range within a frequency band.the application of Wide Band Medium…
-
Active Device, power limiter
100W Wide Band Power Limiter 0.05 – 6 GHz . OLT8000050600A
RFECHO Power Limiter is an active product, and its frequency range from 0.05GHz to 6GHz . The RFECHO Power Limiter has a High Isolation Limiter, Low insertion loss and good…
-
Active Device, Power Amplifier, Routing
10W Ultra Wide Band Power Amplifier . 0.5GHz~6GHz . OPA3500500600B
RFECHO Power Amplifier from 0.5GHz to 6GHz，RFECHO power amplifier can perfectly linearly amplify the input signals in a wide dynamic range within a frequency band.the application of Wide Band Medium…
-
SP16T, Switch12-18 GHz Absorptive SP16T PIN Switch
Frequency Range: 12-18 GHz
Switch Design: Absorptive
Switching Speed: 150ns
Input/ Output Connectors: SMA-Female
Insertion Loss: ≤7.0 dB
Isolation: ≥ 80 dB
VSWR: ≤ 2.0:1 -
SP3T, Switch12-18 GHz Absorptive SP3T PIN Switch
Frequency Range: 12-18 GHz
Switch Design: Absorptive
Switching Speed: 100ns
Input/ Output Connectors: SMA-Female
Insertion Loss: ≤3.5 dB
Isolation: ≥ 80 dB
VSWR: ≤ 2.0:1 -

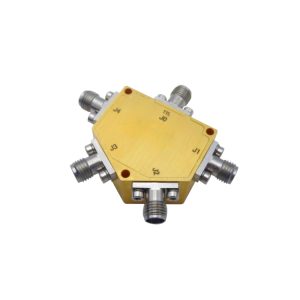

SP4T, Switch12-18 GHz Absorptive SP4T PIN Switch
Frequency Range: 12-18 GHz
Switch Design: Absorptive
Switching Speed: 100ns
Input/ Output Connectors: SMA-Female
Insertion Loss: ≤3.2 dB
Isolation: ≥ 75 dB
VSWR: ≤ 2.0:1 -
SP5T, Switch12-18 GHz Absorptive SP5T PIN Switch
Frequency Range: 12-18 GHz
Switch Design: Absorptive
Switching Speed: 120ns
Input/ Output Connectors: SMA-Female
Insertion Loss: ≤3.5 dB
Isolation: ≥ 60 dB
VSWR: ≤ 2.0:1 -
SP5T, Switch12-18 GHz Absorptive SP5T PIN Switch
Frequency Range: 12-18 GHz
Switch Design: Absorptive
Switching Speed: 100ns
Input/ Output Connectors: SMA-Female
Insertion Loss: ≤3.5 dB
Isolation: ≥ 75 dB
VSWR: ≤ 2.0:1 -
SP6T, Switch12-18 GHz Absorptive SP6T PIN Switch
Frequency Range: 12-18 GHz
Switch Design: Absorptive
Switching Speed: 120ns
Input/ Output Connectors: SMA-Female
Insertion Loss: ≤4.2 dB
Isolation: ≥ 60 dB
VSWR: ≤ 2.0:1 -
SP8T, Switch12-18 GHz Absorptive SP8T PIN Switch
Frequency Range: 12-18 GHz
Switch Design: Absorptive
Switching Speed: 120ns
Input/ Output Connectors: SMA-Female
Insertion Loss: ≤4.8 dB
Isolation: ≥ 80 dB
VSWR: ≤ 2.0:1 -
SP2T, Switch12-18 GHz Absorptive SPDT PIN Switch
Frequency Range: 12-18 GHz
Switch Design: Absorptive
Switching Speed: 100ns
Input/ Output Connectors: SMA-Female
Insertion Loss: ≤3.0 dB
Isolation: ≥ 60 dB
VSWR: ≤ 2.0:1 -
SP2T, Switch12-18 GHz Absorptive SPDT PIN Switch
Frequency Range: 12-18 GHz
Switch Design: Absorptive
Switching Speed: 100ns
Input/ Output Connectors: SMA-Female
Insertion Loss: ≤3.0 dB
Isolation: ≥ 60 dB
VSWR: ≤ 2.0:1 -
SP3T, Switch12-18 GHz Reflective SP3T PIN Switch
Frequency Range: 12-18 GHz
Switch Design: Reflective
Switching Speed: 100ns
Input/ Output Connectors: SMA-Female
Insertion Loss: ≤2.8 dB
Isolation: ≥ 80 dB
VSWR: ≤ 2.0:1 -
SP5T, Switch
12-18 GHz Reflective SP5T PIN Switch
Frequency Range: 12-18 GHz
Switch Design: Reflective
Switching Speed: 120ns
Input/ Output Connectors: SMA-Female
Insertion Loss: ≤3.0 dB
Isolation: ≥ 60 dB
VSWR: ≤ 2.0:1 -
SP6T, Switch
12-18 GHz Reflective SP6T PIN Switch
Frequency Range: 12-18 GHz
Switch Design: Reflective
Switching Speed: 150ns
Input/ Output Connectors: SMA-Female
Insertion Loss: ≤3.7 dB
Isolation: ≥ 70 dB
VSWR: ≤ 2.0:1
