Dual Polarized Horn Antennas

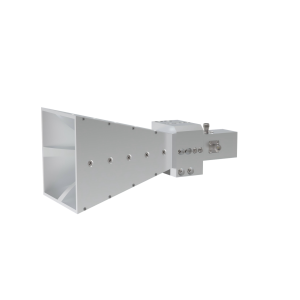

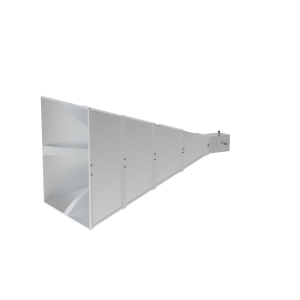

Dual Polarized Horn Antenna also know as Quad ridged Horn Antenna with dual linear polarized is characterized by high gain and symmetric beam. The antenna is fabricated with one piece of copper, making the ridges of the antenna crosses at an ideal 90 degrees. The antenna’s cross-polarization isolation is lower than -30dB. The antenna with low cross-polarization properties usually uses as radar cross-section (RCS) antenna arrays. This antenna is also used as the Compact Antenna Test Range (CATR) or satellite reflector antenna’s feed antenna.

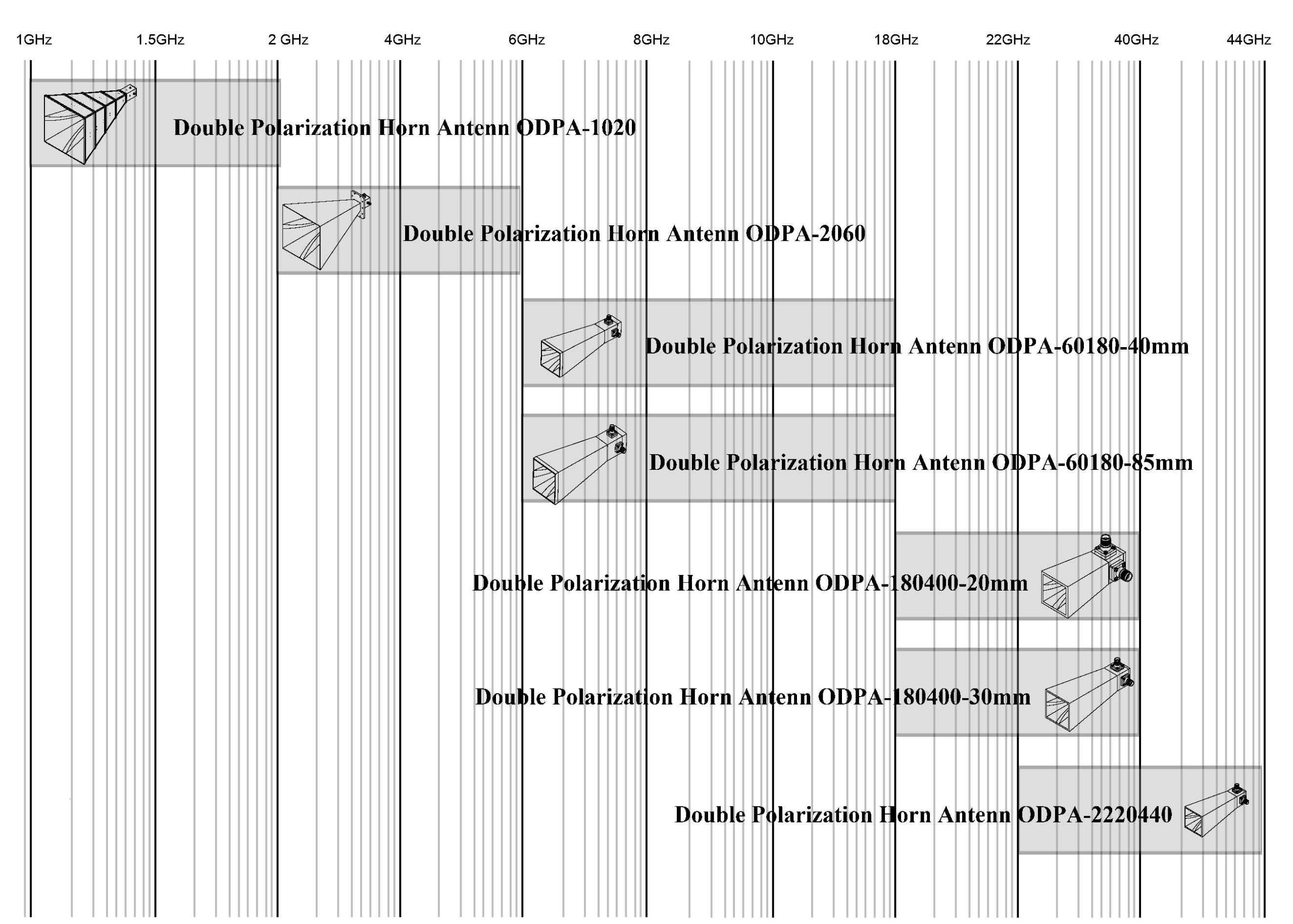

The Dual Polarized Horn Antennas of RFecho offers frequencies of 1GHz to 3GHz, 2GHz to 6GHz, 6GHz to 18GHz, 18GHz to 40GHz, and 22GHz to 44GHz with a nominal gain of 8-20dBi and low VSWR. The impedance of 50 Ohms, with the N-type connectors,2.92mm connectors, or SMA connectors.
