80 MHz to 3000 MHz, N Female, EMC Biconical Antenna-RFecho

$2190

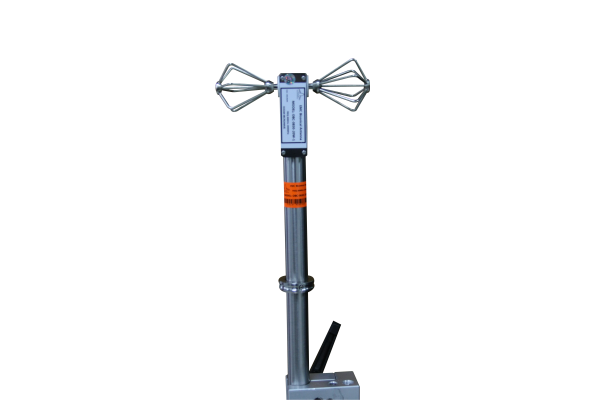

The OBC-0830-20W-1 is a vertically polarized omnidirectional antenna with a frequency range of 80 MHz to 3000 MHz, known for its improved pattern stability. This model is constructed from durable aluminum alloy and is powder-coated to enhance its corrosion resistance, ensuring longevity and robust performance. Its broadband design allows for efficient scanning measurements and automatic measurement systems. This design significantly reduces measurement time, a critical factor for swept broadband operations. Additionally, the antenna features low return loss and linear gain with frequency, ensuring stable and consistent performance.

The OBC-0830-20W-1 is ideal for a broad spectrum of applications. First and foremost, it is suited for mid-to-high frequency EMC testing, covering the upper VHF, UHF, and lower SHF (Super High Frequency) spectrum. This model is essential for testing modern communication systems such as Wi-Fi, Bluetooth, and cellular networks (2G, 3G, 4G, and parts of 5G). In telecommunications and wireless networks, the antenna plays a critical role in testing mobile networks, LTE, satellite communications, and microwave links, supporting many wireless communication devices in the upper UHF and lower SHF bands, including Wi-Fi (2.4 GHz). For military and defense systems, this model is used to test radar systems, high-frequency military communications, and satellite-based communication systems. In microwave and satellite communications, the OBC-0830-20W-1 supports microwave systems for point-to-point communication, broadband networks, and satellite communication systems. It is vital for testing satellite links and ensuring proper operation at higher frequencies. Finally, the OBC-0830-20W-1 is ideal for wideband testing, allowing for measurements across a broad frequency spectrum, from UHF to SHF. This is crucial for testing broadband communication systems, evaluating RF performance, and assessing high-speed data transmission technologies.https://www.rfecho.com/product-category/emc-antenna/

SKU: OBC-0830-20W-1 Categories: Biconical Antenna, EMC Antenna, EMC-Biconical Antenna, RF Antenna

Description

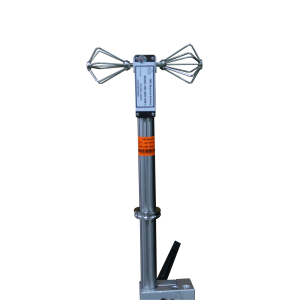

The OBC-0830-20W-1 is a vertically polarized omnidirectional antenna with a frequency range of 80 MHz to 3000 MHz, known for its improved pattern stability. This model is constructed from durable aluminum alloy and is powder-coated to enhance its corrosion resistance, ensuring longevity and robust performance. Its broadband design allows for efficient scanning measurements and automatic measurement systems. This design significantly reduces measurement time, a critical factor for swept broadband operations. Additionally, the antenna features low return loss and linear gain with frequency, ensuring stable and consistent performance.

The OBC-0830-20W-1 is ideal for a broad spectrum of applications. First and foremost, it is suited for mid-to-high frequency EMC testing, covering the upper VHF, UHF, and lower SHF (Super High Frequency) spectrum. This model is essential for testing modern communication systems such as Wi-Fi, Bluetooth, and cellular networks (2G, 3G, 4G, and parts of 5G). In telecommunications and wireless networks, the antenna plays a critical role in testing mobile networks, LTE, satellite communications, and microwave links, supporting many wireless communication devices in the upper UHF and lower SHF bands, including Wi-Fi (2.4 GHz). For military and defense systems, this model is used to test radar systems, high-frequency military communications, and satellite-based communication systems. In microwave and satellite communications, the OBC-0830-20W-1 supports microwave systems for point-to-point communication, broadband networks, and satellite communication systems. It is vital for testing satellite links and ensuring proper operation at higher frequencies. Finally, the OBC-0830-20W-1 is ideal for wideband testing, allowing for measurements across a broad frequency spectrum, from UHF to SHF. This is crucial for testing broadband communication systems, evaluating RF performance, and assessing high-speed data transmission technologies.https://www.rfecho.com/product-category/emc-antenna/

Electrical Specifications

80 MHz to 3000 MHz, N Female

OBC-0830-20W-1

Property

Value

Min. Frequency (MHz)

80

Max. Frequency (MHz)

3000

Impedance (?)

50

Power Handling (W)

20

Balun Type Transform Ratio

1:1

Connection Type

N Female

Features

Low Return Loss

Linear gain with frequency

EMC and EMI testing

Radio Link Testing

Applications

Broadband RX-Antenna for Emission Testing

TX-Antenna for Immunity testing

Specially designed at low frequencies

Additional information

Min. Frequency (MHz)

80

Max. Frequency (MHz)

3000

Impedance (Ω)

50

Power Handling (W)

20

Max. Output Power (mW), AM

NA

Min. Gain (dBi)

NA

Max. Gain (dBi)

NA

Balun Type Transform Ratio

1:01

Connection Type

N Female
