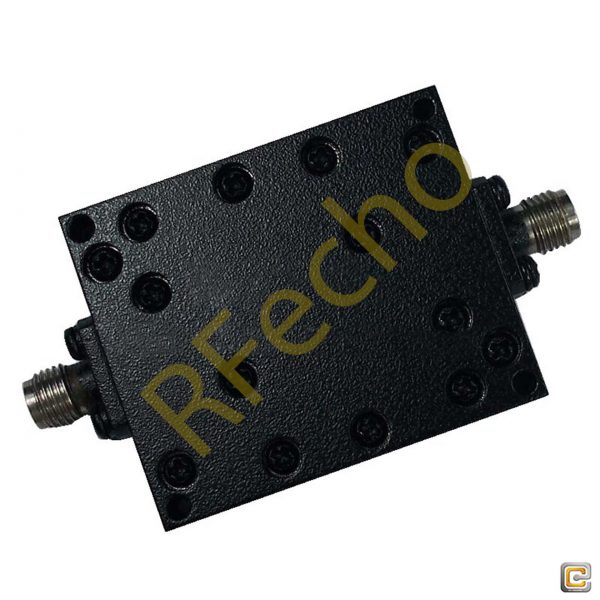

DC-2.7GHz, Rejection: ≥45dB @ 3.45-8.0GHz, Low Pass Cavity Filter OLP-3000

DC-2.7GHz, Rejection: ≥45dB @ 3.45-8.0GHz, Low Pass Cavity Filter OLP-3000

0 out of 5

OLP-3000:

  • Cut Off Frequency: 3.0GHz,
  • 1dB Pass Band Frequency:  DC-2.7GHz,
  • Pass Band VSWR: ≤1.5:1,
  • Rejection: ≥45dB @ 3.45-8.0GHz.
SKU: OLP-3000 Categories: ,

Description

RFecho Low Pass Cavity Filter (abbreviation: OLP) is a filter that allows signals below the cut-off frequency to pass through, but signals above the cut-off frequency cannot pass through. More Cavity Filters…

Low Pass Cavity Filter – OLP-3000:

  • Cut Off Frequency: 3.0GHz,
  • 1dB Pass Band Frequency:  DC-2.7GHz,
  • Pass Band VSWR: ≤1.5:1,
  • Rejection: ≥45dB @ 3.45-8.0GHz.

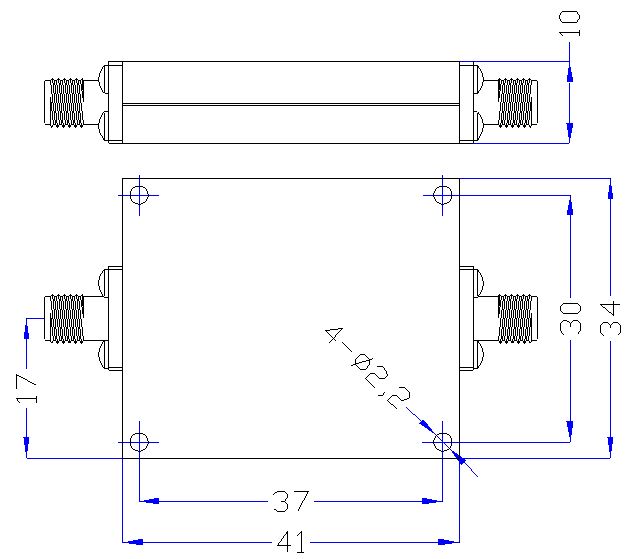

Outline

DC-2.7GHz, Rejection: ≥45dB @ 3.45-8.0GHz, Low Pass Cavity Filter OLP-3000 01

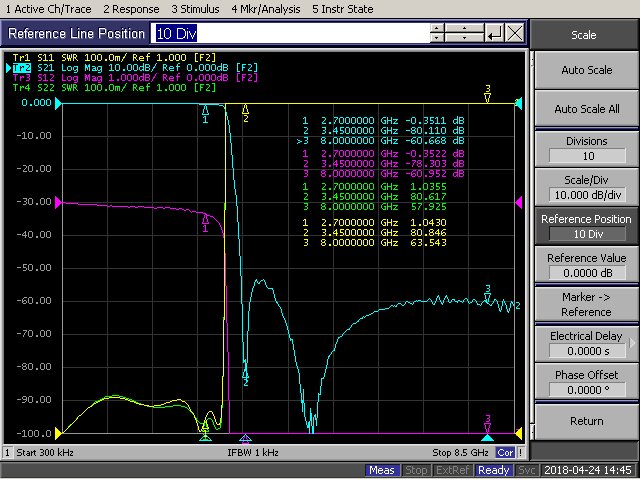

Plot

DC-2.7GHz, Rejection: ≥45dB @ 3.45-8.0GHz, Low Pass Cavity Filter OLP-3000 02

PDF

Additional information

Min. Pass Band Frequency (GHz)

Max. Pass Band Frequency (GHz)

Cut Off Frequency (GHz)

Pass Band Insertion Loss (dB)

Min. 1.0 dB Insertion Loss

Max. 1.0 dB Insertion Loss

Min. 1.5 dB Insertion Loss

Max. 1.5 dB Insertion Loss

Pass Band Return Loss (dB)

Pass Band VSWR (Max.)

Stop Band Attenuation (GHz)

Impedance (Ω)

Power Handling (W)

Connection Type

Surface Finish
