Low Pass RF Filter 26.5GHz to 40GHz WR-28 Waveguide low pass Filter with Rejection Frequency 40GHz to 90GHz

Low Pass RF Filter 26.5GHz to 40GHz WR-28 Waveguide low pass Filter with Rejection Frequency 40GHz to 90GHz

0 out of 5

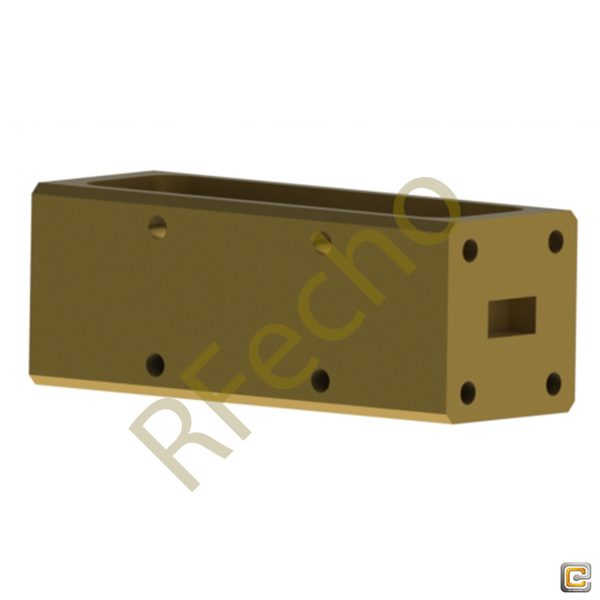

Low Pass RF Filter model OWBP-26504000-28 is WR-28 Waveguide low pass filter with a passband frequency from 26.5GHz to 40GHz and a rejection frequency 40GHz to 90GHz. Due to the waveguide cut off nature of WR-28 Waveguide low pass filter, the low side of this RF filter has rejection range of DC to 21GHz. Our Low Pass RF filter provides a nominal insertion loss of 1.0 dB across its passband and a typical rejection of 60 dB. Since the high end cutoff frequency of WR-28 waveguide low pass filter can be changed by modifying the design, custom designs can be offered under different model numbers. Low Pass RF filter has passband return Loss of 30 dB and a maximum power of 100W.
26.5GHz to 40GHz Ocean low pass filter from RFecho is just one part in a large selection of our RF Components. Our 26.5GHz to 40GHz Low Pass RF filter is ready for shipping worldwide after purchase. RFecho also stocks a wide array of other RF components that ship from our warehouse for all your RF components needs.

SKU: OWBP-26504000-28 Categories: Passive Devices, RF Filter Lowpass, RF Filters

Description

PDF

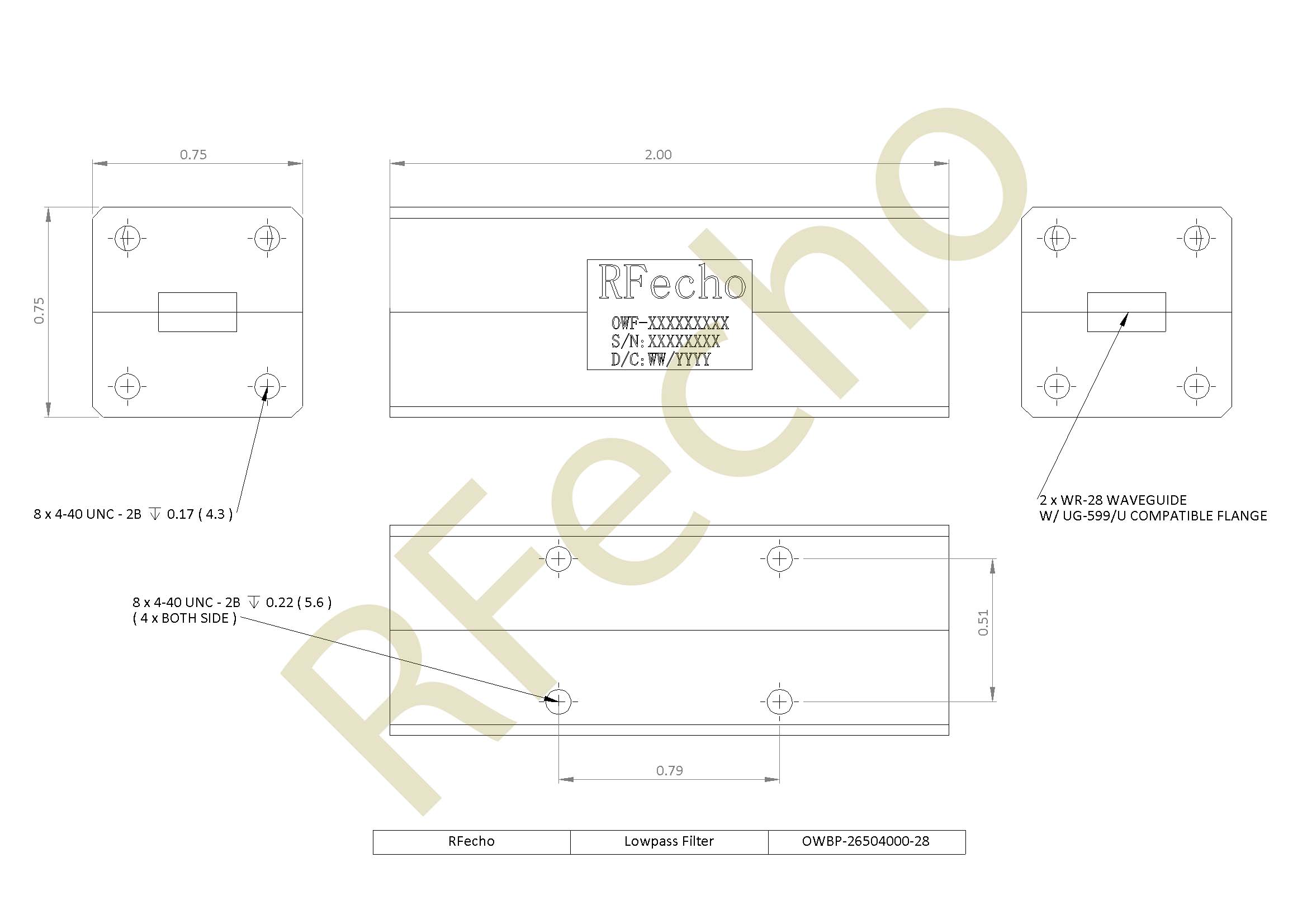

Outline

Low Pass RF Filter 26.5GHz to 40GHz WR-28 Waveguide low pass Filter with Rejection Frequency 40GHz to 90GHz

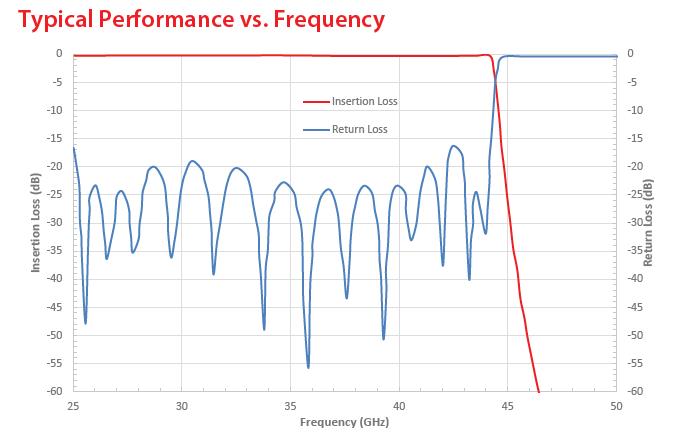

Plot

Low Pass RF Filter 26.5GHz to 40GHz WR-28 Waveguide low pass Filter with Rejection Frequency 40GHz to 90GHz

Additional information

Filter Type

RF Filter Lowpass

Min Pass Band Freq. (GHz)

26.5

Max Pass Band Freq. (GHz)

40

Insertion Loss (dB)

1

Rejection (dB)

60

Max Rejection Freq. Lowside

21

Min Rejection Freq. Highside

40

Waveguide Port

WR-28
