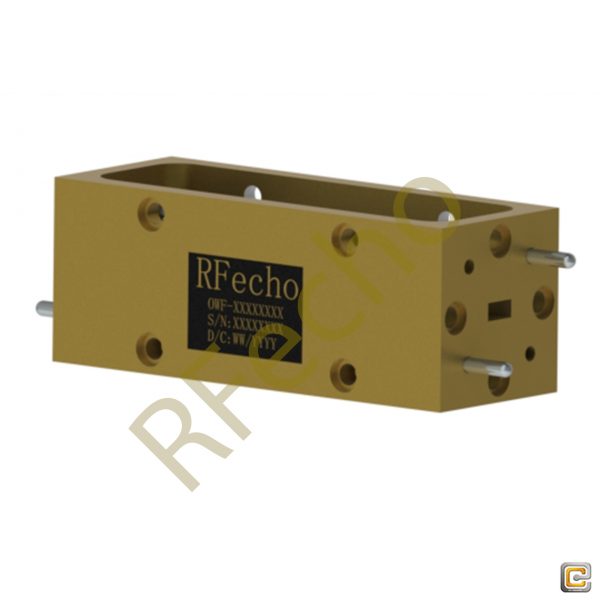

Low Pass Filter model OWBP-50007500-75 is a V Band waveguide low pass filter with a passband frequency from 50GHz to 75GHz and a rejection frequency 79GHz to 120GHz. Due to the waveguide cut off nature of V Band Waveguide low pass filter, the low side of this RF filter has rejection range of DC to 8 GHz. Our Low pass filter provides a nominal insertion loss of 1.5 dB across its passband and a typical rejection of 40 dB. Since the high end cutoff frequency of V Band waveguide low pass filter can be changed by modifying the design, custom designs can be offered under different model numbers. This low pass filter has a VSWR of 2:1 and operating temperature of -40C to 85C.
Ocean low pass filter from RFecho is just one part in a large selection of our RF Components. Our 50GHz to 75GHz low pass filter is ready for shipping worldwide after purchase. RFecho also stocks a wide array of other RF components that ship from our warehouse for all your RF components needs.

SKU: OWBP-50007500-15 Categories: Passive Devices, RF Filter Lowpass, RF Filters

Description

PDF

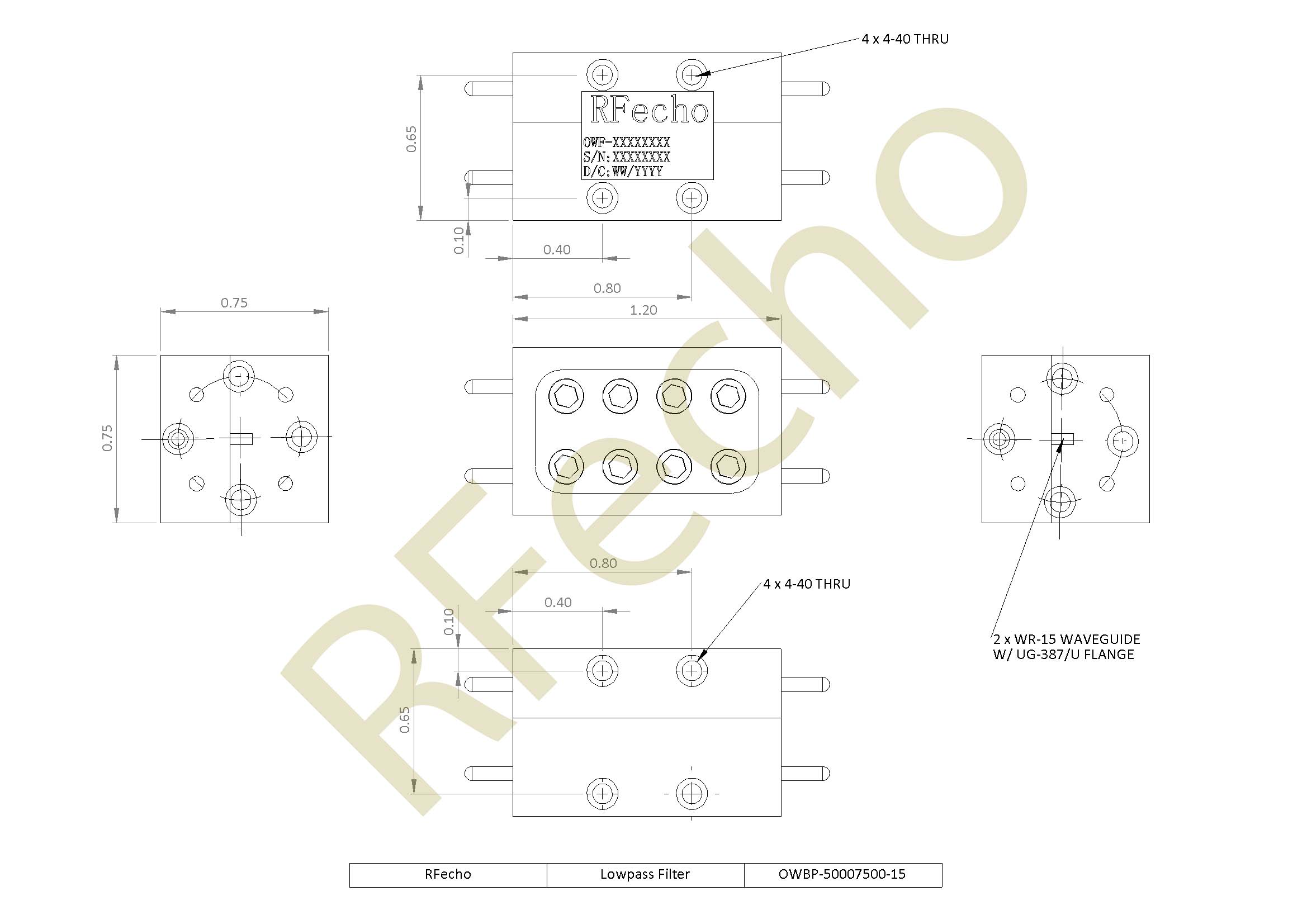

Outline

Low Pass Filter 50GHz to 75GHz V Band Waveguide low pass Filter with Rejection Frequency 79GHz to 120GHz

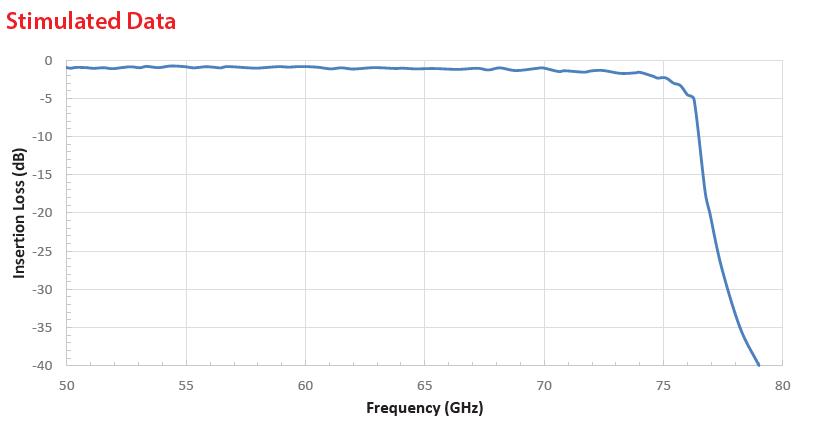

Plot

Low Pass Filter 50GHz to 75GHz V Band Waveguide low pass Filter with Rejection Frequency 79GHz to 120GHz

Additional information

Filter Type

RF Filter Lowpass

Min Pass Band Freq. (GHz)

50

Max Pass Band Freq. (GHz)

75

Insertion Loss (dB)

1.5

Rejection (dB)

40

Max Rejection Freq. Lowside

NA

Min Rejection Freq. Highside

79

Waveguide Port

WR-15
