Solid-State Power Amplifiers0.1-0.8GHz 80W Dual-Output CAN-Bus Solid-State Power Amplifier
Frequency range: 0.1-0.8GHz
Output power: ≥49dBm (80W), dual channel.
Attenuation range: ≥30dB, 0.25dB step.
Supply voltage: +28VDC Typ.
Dual RF output with forward/reverse directional coupler sampling
CAN bus communication and 7-bit digital step attenuator
Self-protection: over-temperature,…
-
Solid-State Power Amplifiers0.5-2GHz 100W CAN-Bus Solid-State Power Amplifier
Frequency range: 0.5-2GHz
Output power: ≥50dBm (100W).
Attenuation range: ≥30dB, 0.25dB step.
Supply voltage: +28VDC Typ.
CAN bus communication and 7-bit digital step attenuator
Self-protection: over-temperature, over/under-voltage, over-current
Enable control and fault reporting function
OTY0P502P100 Solid-State Power…
-
Solid-State Power Amplifiers10GHz-13GHz 100W Solid-State Power Amplifier
Frequency range: 10GHz to 13GHz
Output power: ≥50dBm (100W).
Harmonic suppression: ≤ −10 dBc.
Supply voltage: +28VDC Typ.
Enable control via D-Sub 15-pin power/control connector
Over-temperature, over-current and anti-VSWR protection
Temperature and current alarm outputs
OTY1013P100 Solid-State…
-
Solid-State Power Amplifiers2-6GHz 100W Ultra-Wideband Solid-State Power Amplifier
Frequency range: 2-6GHz
Output power: ≥100W (typ. 120W).
Power gain: ≥50dB Typ.
Supply voltage: +28VDC Typ.
Compact size and light weight
Built-in over-temperature, over-voltage and over-current protection
Enable control function for easy system integration
OTY0206P100 Ultra-Wideband Solid-State…
-

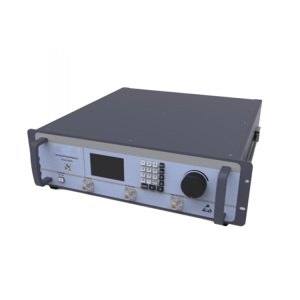

Solid-State Power Amplifiers2-6GHz 150W Ultra-Wideband Solid-State Power Amplifier
Frequency range: 2-6GHz
Output power: ≥120W (typ. 150W).
Power gain: ≥51dB Typ.
Supply voltage: +28VDC Typ.
Compact size and light weight
Built-in over-temperature, over-voltage and over-current protection
Enable control function for easy system integration
OTY0206P150 Ultra-Wideband Solid-State…
-
Solid-State Power Amplifiers2-7GHz 50W CAN-Bus Solid-State Power Amplifier
Frequency range: 2-7GHz
Output power: ≥47dBm (50W).
Attenuation range: ≥30dB, 0.25dB step.
Supply voltage: +28VDC Typ.
CAN bus communication and 7-bit digital step attenuator
Self-protection: over-temperature, over/under-voltage, over-current
Enable control and fault reporting function
OTY0207P50 Solid-State Power…
-
Solid-State Power Amplifiers6-18GHz 100W Ultra-Wideband Solid-State Power Amplifier
Frequency range: 6-18GHz
Output power: 100W Typ.
Power gain: ≥50dB Typ.
Supply voltage: +28VDC Typ.
Compact size and light weight
Built-in over-temperature and over-current protection
Enable control function for easy system integration
OTY0618P100 Ultra-Wideband Solid-State Power Amplifier…
-
Solid-State Power Amplifiers6-18GHz 30W CAN-Bus Solid-State Power Amplifier
Frequency range: 6-18GHz
Output power: ≥45dBm (30W).
Attenuation range: ≥30dB, 0.25dB step.
Supply voltage: +28VDC Typ.
CAN bus communication and 7-bit digital step attenuator
Self-protection: over-temperature, over/under-voltage, over-current
Enable control and fault reporting function
OTY0618P30 Solid-State Power…
-
Solid-State Power Amplifiers8GHz-12GHz 100W Solid-State Power Amplifier
Frequency range: 8GHz to 12GHz
Output power: ≥50dBm (100W).
Harmonic suppression: ≤ −10 dBc.
Supply voltage: +28VDC Typ.
Enable control via D-Sub 15-pin power/control connector
Over-temperature, over-current and anti-VSWR protection
Temperature and current alarm outputs
OTY0812P100 Solid-State…
