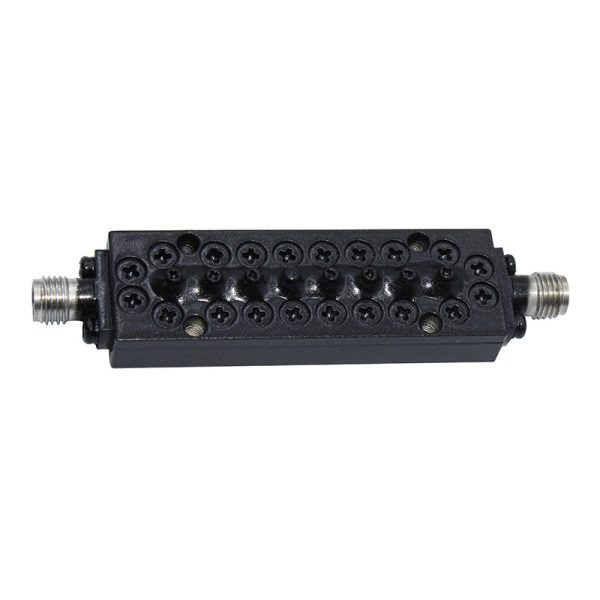

Band Pass Filter From ±500MHz(37.5~38.5GHz) OBP-38000-500 With 2.92mm(K)-Female Connectors

Ocean Microwave band-pass filter (Ocean band-pass filter,abbreviation:abbreviation:OBP) is a filter that allows waves of specific frequencybandto pass through while rejecting other frequency bands.

The product name of this Ocean band-pass filter (OBP)is OBP-38000-5OO, it’s Center Frequency (FO) is 38GHz, it’s Pass Band Bandwidth is ±500MHz(37.5~38.5GHz), it’s Pass Band Insertion Loss is <1.5dB, Pass Band Return Loss is ≥18dB, Pass Band VSWR is, and the Stop Band frequency is >55dB@DC~36.5GHz>50dB@39.5~55GHz.

Availability: Available on backorder SKU: OBP-38000-500 Categories: Cavity Band Pass Filter, RF Cavity Filter, RF Filters

Description

Ocean Microwave band-pass filter (Ocean band-pass filter,abbreviation:abbreviation:OBP) is a filter that allows waves of specific frequency band to pass through while rejecting other frequency bands.

The product name of this Ocean band-pass filter (OBP)is OBP-38000-5OO, it’s Center Frequency (FO) is 38GHz, it’s Pass Band Bandwidth is ±500MHz(37.5~38.5GHz), it’s Pass Band Insertion Loss is <1.5dB, Pass Band Return Loss is ≥18dB, Pass Band VSWR is, and the Stop Band frequency is >55dB@DC~36.5GHz>50dB@39.5~55GHz.

Band Pass Filter Datasheet (Click to download)

Additional information

Center Frequency (F0) (MHz)

38000

Min. Pass Band Frequency (MHz)

37500

Max. Pass Band Frequency (MHz)

38500

Pass Band Insertion Loss (dB)

≤1.5dB

Stop Band Rejection

>50dB@DC~38.2GHz>50dB@39.8-58.5GHz

Impedance (Ω)

50

Power Handling (W)

5W Max

Connection Type

2.92mm(K)-Female
