Bandpass Microwave Filter 54.5GHz to 56.5GHz Waveguide Bandpass Filter Rejection Frequency 57GHz to 70GHz

Bandpass Microwave Filter 54.5GHz to 56.5GHz Waveguide Bandpass Filter Rejection Frequency 57GHz to 70GHz

0 out of 5

Bandpass Microwave Filter model OWBP-54505650-15 is V Band Waveguide Bandpass filter with a passband frequency from 54.5GHz to 56.5GHz and a rejection frequency 57GHz to 70GHz. Due to the waveguide cut off nature of Bandpass Microwave filter, the low side of this RF filter has rejection range of DC to 53GHz. Our Waveguide Bandpass Filter provides a nominal insertion loss of 2.5dB across its passband and a typical rejection of 50dB. Since the high end cutoff frequency of Bandpass Microwave Filter can be changed by modifying the design, custom designs can be offered under different model numbers. This Waveguide Bandpass Filter has passband ripple of ±0.3dB and power handling of 50W. 54.5GHz to 56.5GHz Ocean Bandpass filter from RFecho is just one part in a large selection of our RF Components. Our 54.5GHz to 56.5GHz Bandpass Microwave filter is ready for shipping worldwide after purchase. RFecho also stocks a wide array of other RF components that ship from our warehouse for all your RF components needs.

SKU: OWBP-54505650-15 Categories: Passive Devices, RF Filter Bandpass, RF Filters

Description

PDF

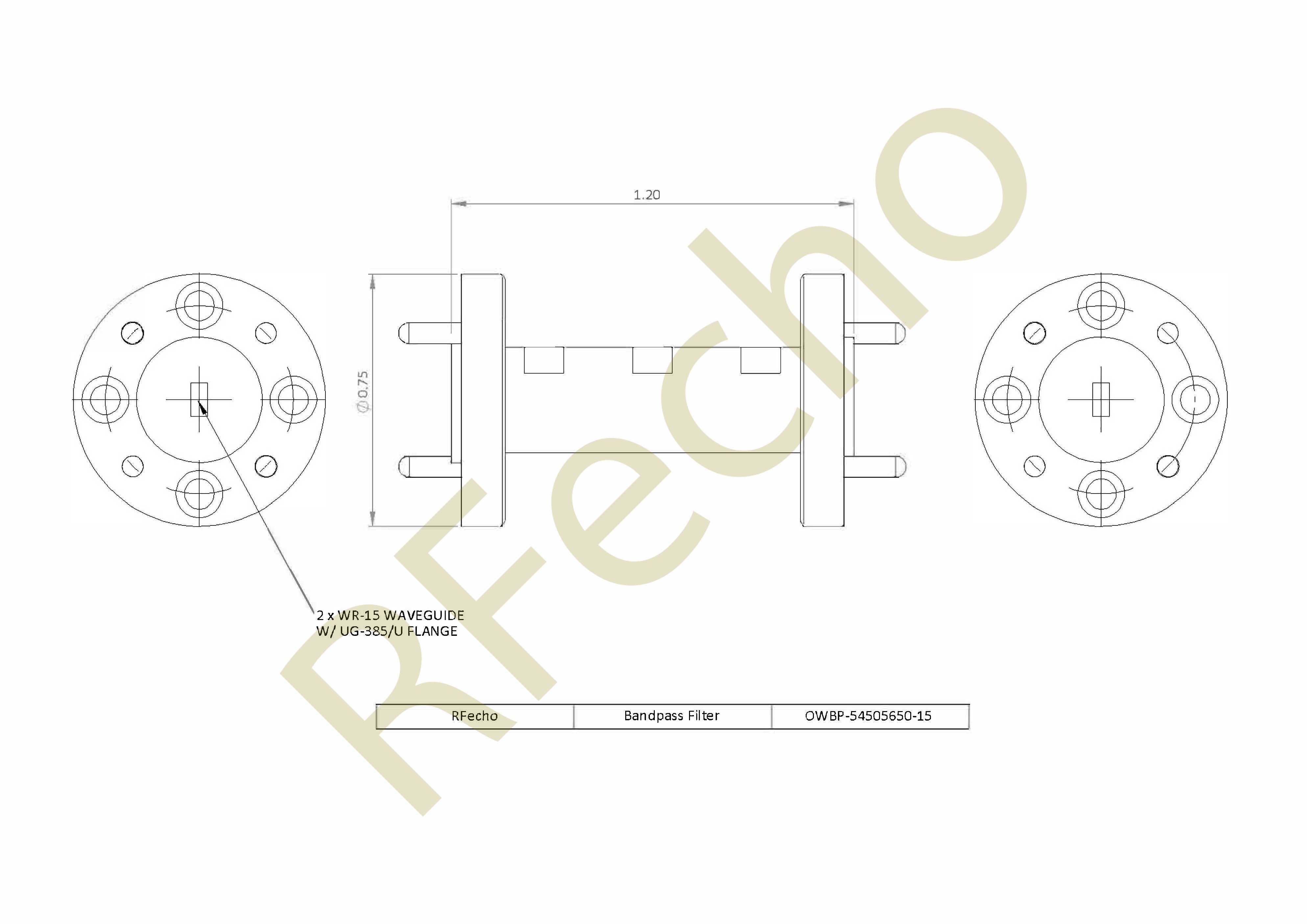

Outline

Bandpass Microwave Filter 54.5GHz to 56.5GHz Waveguide Bandpass Filter Rejection Frequency 57GHz to 70GHz

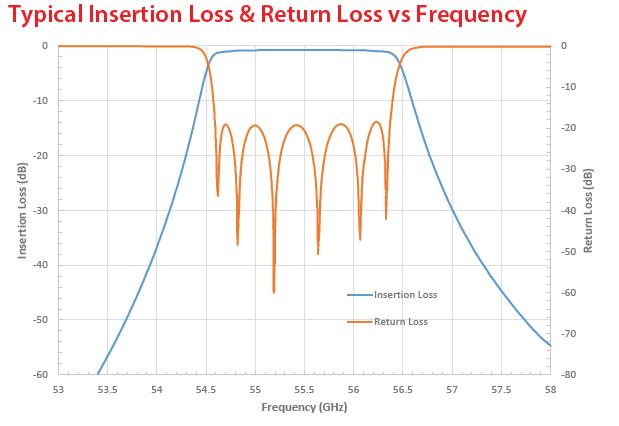

Plot

Bandpass Microwave Filter 54.5GHz to 56.5GHz Waveguide Bandpass Filter Rejection Frequency 57GHz to 70GHz

Additional information

Filter Type

RF Filter Bandpass

Min Pass Band Freq. (GHz)

54.5

Max Pass Band Freq. (GHz)

56.5

Insertion Loss (dB)

2.5

Rejection (dB)

50

Max Rejection Freq. Lowside

53

Min Rejection Freq. Highside

57

Waveguide Port

WR-15
