Bandpass RF Filter model OWBP-51505450-15 is V Band Waveguide Bandpass filter with a passband frequency from 51.5GHz to 54.5GHz and a rejection frequency 62GHz to 70GHz. Due to the waveguide cut off nature of RF Bandpass filter, the low side of this RF filter has rejection range of DC to 44GHz. Our Waveguide Microwave Filter provides a nominal insertion loss of 1.0-2.0dB across its passband and a typical rejection of 40dB. Since the high end cutoff frequency of Bandpass RF Filter can be changed by modifying the design, custom designs can be offered under different model numbers. This Waveguide Microwave Filter has passband VSWR of 1.5:1 and specification temperature of +25C. 51.5GHz to 54.5GHz Ocean Bandpass filter from RFecho is just one part in a large selection of our RF Components. Our 51.5GHz to 54.5GHz Bandpass RF filter is ready for shipping worldwide after purchase. RFecho also stocks a wide array of other RF components that ship from our warehouse for all your RF components needs.

SKU: OWBP-51505450-15 Categories: Passive Devices, RF Filter Bandpass, RF Filters

Description

PDF

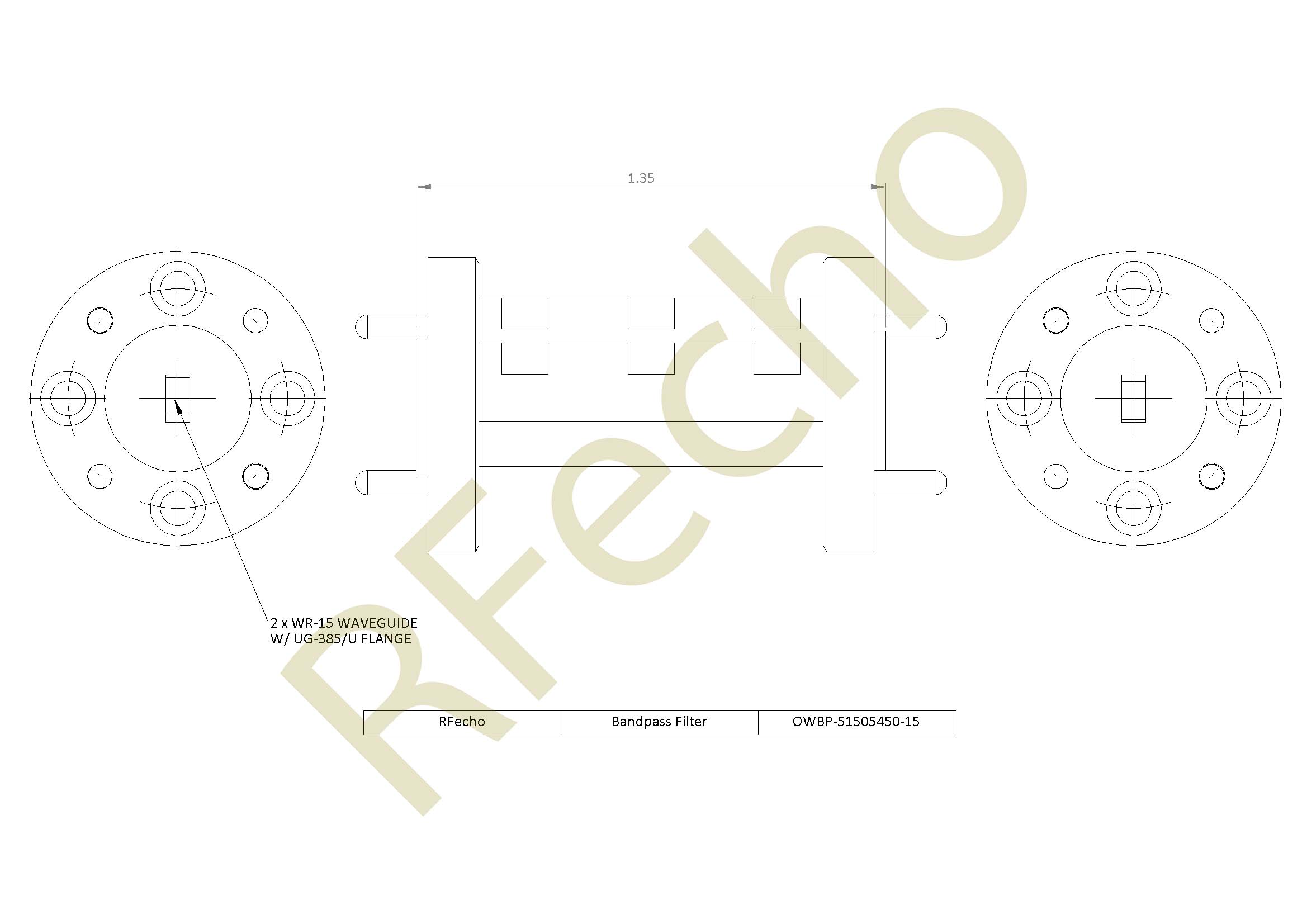

Outline

Bandpass RF Filter 51.5GHz to 54.5GHz Waveguide Microwave Filter Rejection Frequency 62GHz to 70GHz

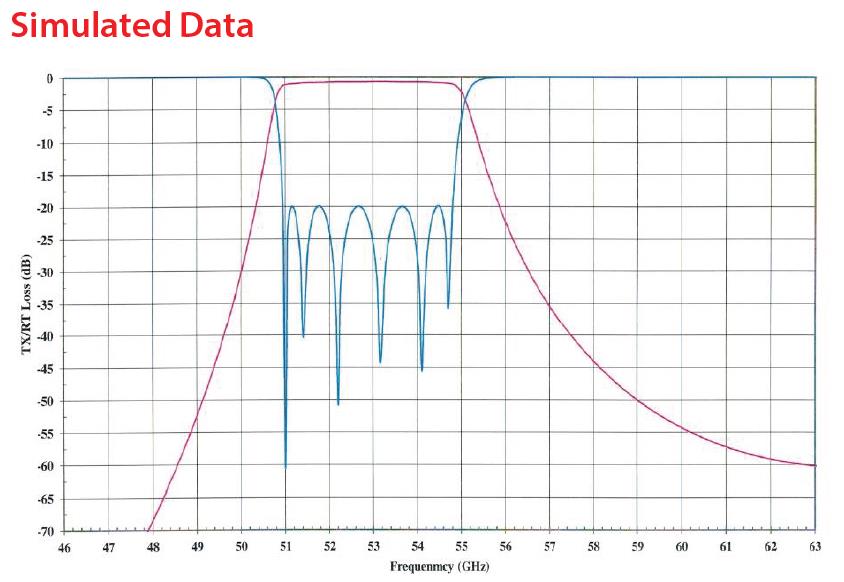

Plot

Bandpass RF Filter 51.5GHz to 54.5GHz Waveguide Microwave Filter Rejection Frequency 62GHz to 70GHz

Additional information

Filter Type

RF Filter Bandpass

Min Pass Band Freq. (GHz)

51.5

Max Pass Band Freq. (GHz)

54.5

Insertion Loss (dB)

1.0-2.0

Rejection (dB)

40

Max Rejection Freq. Lowside

44

Min Rejection Freq. Highside

60

Waveguide Port

WR-15
