Model SNF-28-CD1-H is a Ka band,waveguide junction circulator that covers the frequency range of 26.5 to 40GHz.
The full band isolator is designed andmanufactured to provide a low insertion loss of 0.4dB typical with good flatness.Compared to a Faraday isolator,it offers a much shorter insertion lengthfor system integration.
The isolator also offers a moderate isolation of 15dBand aforward power handling of 20Watts.The input and output ports are WR-28waveguides with UG-599/U flanges.

Description

SPEC

Ferrite Devices

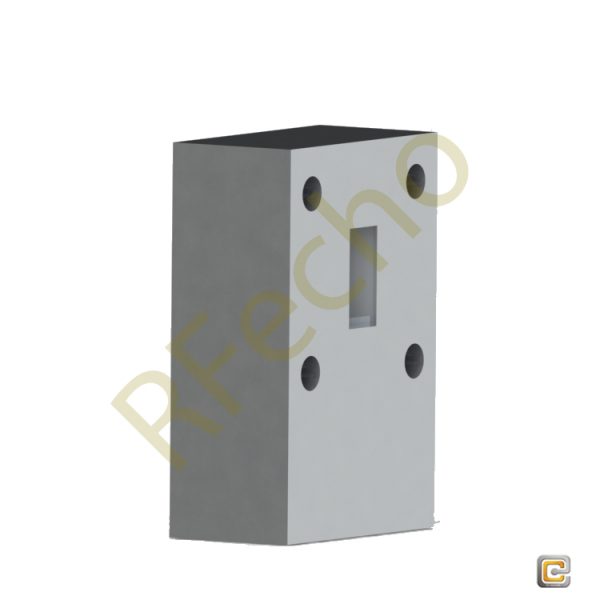

Model OISC-28-H is a Ka band, waveguide junction circulator that covers the frequency range of 26.5 to 40GHz.The full band isolator is designed and manufactured to provide a low insertion loss of 0.4dB typical with good flatness. Compared to a Faraday isolator, it offers a much shorter insertion length for system integration.



 The isolator also offers a moderate isolation of 15dBand a forward power handling of 20Watts.The input and output ports are WR-28 waveguides with UG-599/U flanges.



Features

Low Insertion Loss

Moderate Isolation

Compact Configuration







Applications

Port Isolation

Module Integration

Part No.

OISC-28-H

RF Frequency Range(GHz)

26.5-40

Insertion Loss(dB)

    0.4

Isolation(dB)

    15

Return Loss

    15dB

Forward Power Handling(W)

Specification Temperature

Operating Temperature

20

+25 °C

-40°C~+85 °C





PDF

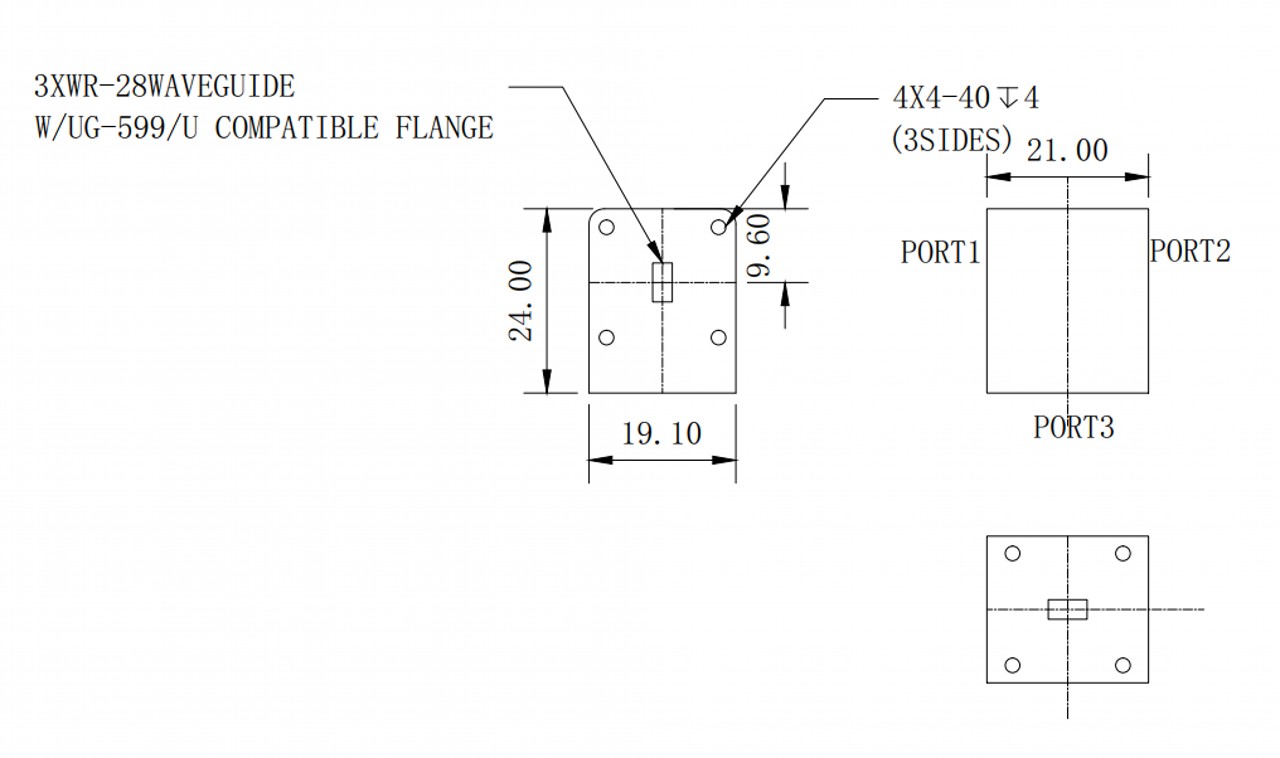

Outline

OISC 28 H outline Ferrite Devices OISC-28-H

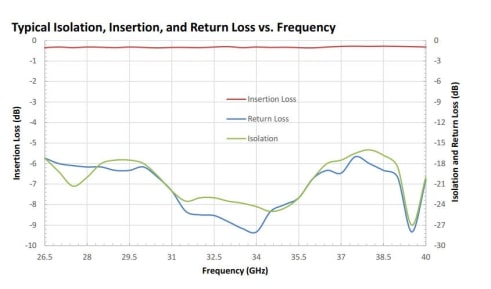

Plot

OISC 28 H plot1 Ferrite Devices OISC-28-H

Additional information

Min. Frequency (GHz)

26.5

Max. Frequency (GHz)

40

Insertion Loss (dB)

Isolation (dB)

VSWR

NA
