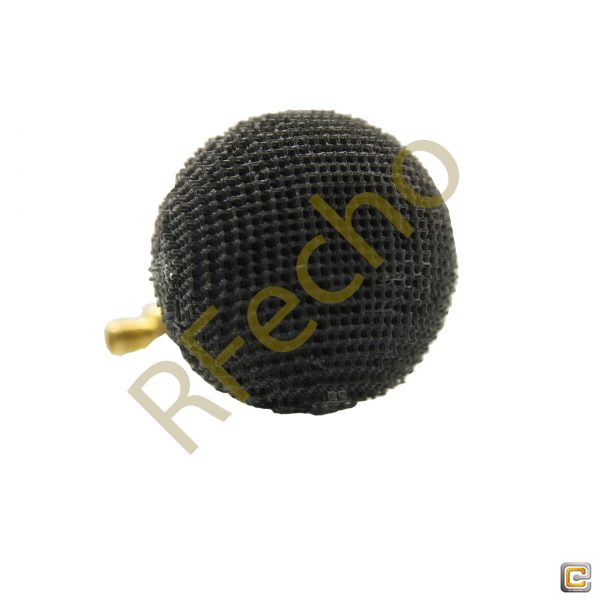

Luneburg lens antenna is a spherical dielectric lens antenna, which focuses microwaves to the focal point through dielectric. Luneburg lens antenna is widely used in microwave,millimeter wave, mobile communication, satellite communication and radio astronomy due to its high gain, low profile and multi-feed multi-beam operation.

Luneburg Lens Antenna covers the frequency range from 9.8 GHz to 15 GHz and offers the nominal gain of 20 dBi where the return loss is 20 dB. HPBW is 18°@12.5GHz. Luneburg Lens Antenna operates in all polarization.

Description

PDF

Outline

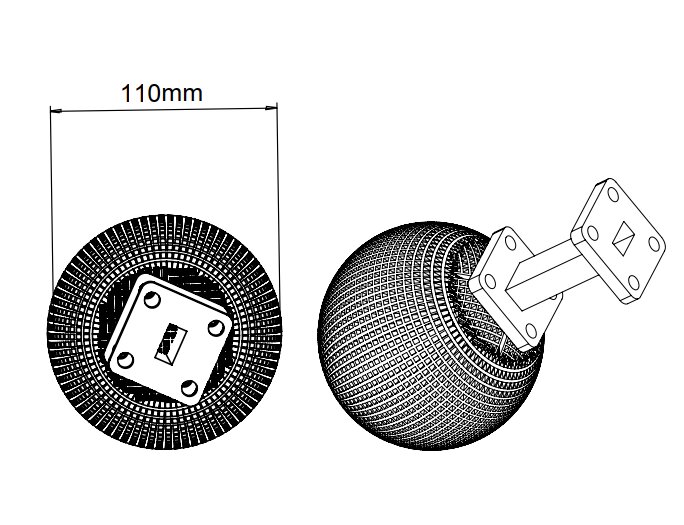

OLLA 98150 outline 20 dBi Gain, 9.8 GHz to 15 GHz, 20 dB Return Loss, Luneburg Lens Antenna

Plot

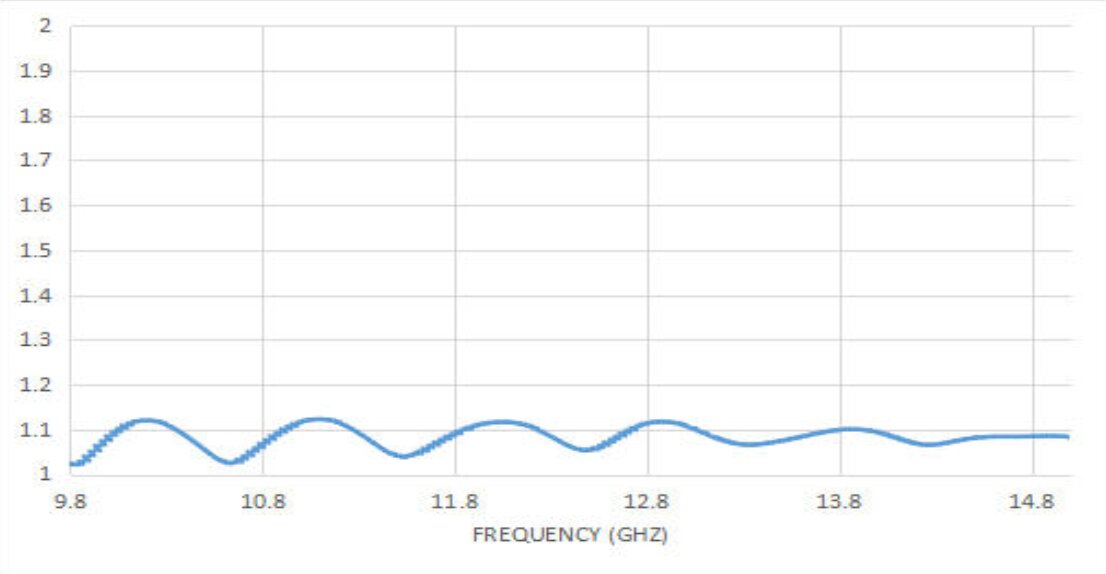

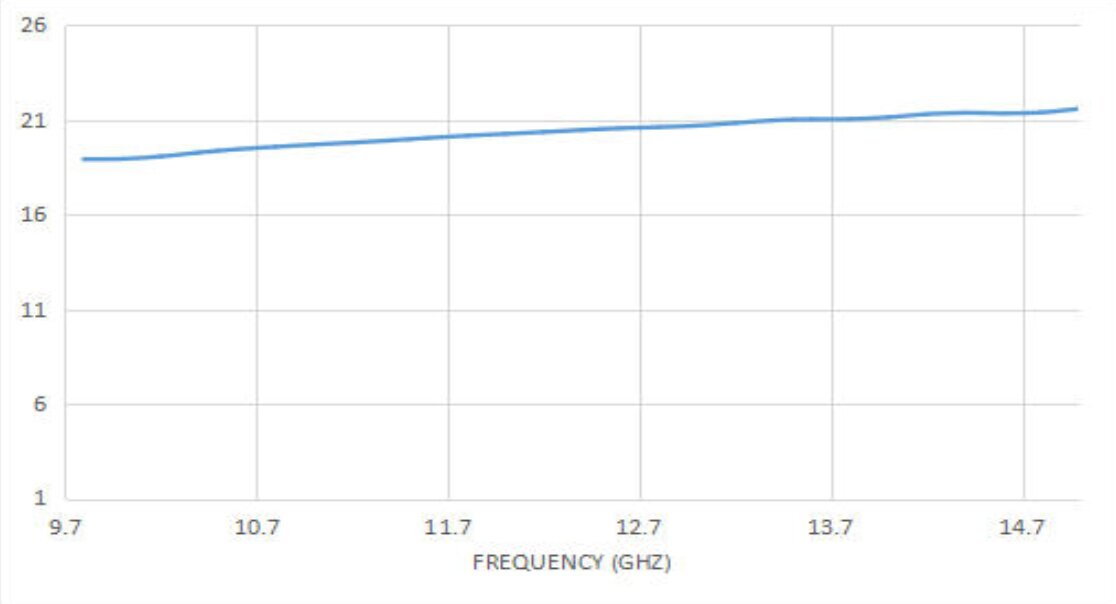

OLLA 98150 plot1 20 dBi Gain, 9.8 GHz to 15 GHz, 20 dB Return Loss, Luneburg Lens AntennaOLLA 98150 plot2 20 dBi Gain, 9.8 GHz to 15 GHz, 20 dB Return Loss, Luneburg Lens Antenna

Additional information

Min. Frequency (GHz)

9.8

Max. Frequency (GHz)

15

Gain (dBi)

20

Return Loss (dB)

HPBW 3 dB Beamwidth

Net Weight (Kg)

Diameter (mm)

Polarization
