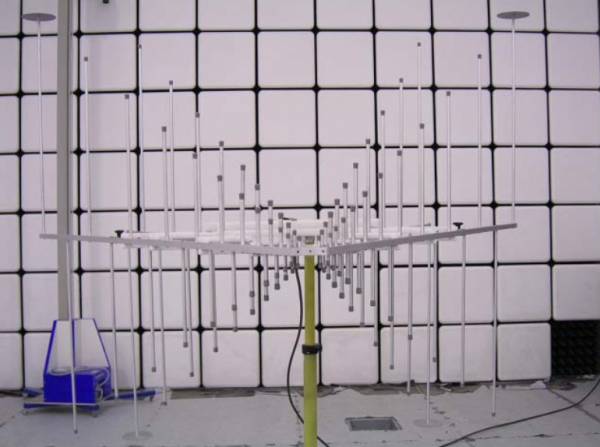

80MHz-1.5GHz EMC Stacked Logarithmic-Periodic Test-Antenna OVLA-00815
$18244
Frequency Range: 80 MHz to 1.5 GHz
Gain: 9 +0.8 / -1.5 dB
Impedance: 50Ω
Connector Type: Type N female / Type 7/16 female
This antenna maintains the excellent characteristics of ordinary Log designs (flat gain over a large bandwidth, low SWR).
- Description
- Datasheet
- Plot
- Additional information
Description
|
Bilogical Antenna |
|
|
80MHz-1.5GHz EMC Stacked Logarithmic-Periodic Test-Antenna |
|
|
OVLA-00815 |
|
|
The RFECHO stacked Logarithmic Periodic Dipole Antenna frequency range is 80MHz to 1.5GHz. The excellent characteristics (flat gain over a large bandwidth, low SWR) of the ordinary Log. designs could be maintained using the stacked LP design. The stacked design helps to focus the directional pattern of the H-plane antenna. This is especially important for immunity testing, where a maximum field strength and a good field uniformity is required. The beamwidth of the E-plane and the H-plane are nearly identical, providing an optimized illumination of the EuT with minimized ground reflection influence. Further, the cross-polar rejection of the OVLA-00815 is excellent. |
|
|
Property |
Value |
|
Min. Frequency (MHz) |
80 |
|
Max. Frequency (GHz) |
1.5 |
|
Gain(dBi) |
9 +0.8 / -1.5 dB |
|
Impedance (Ω) |
50 |
|
Pattern Type |
Directional |
|
Connection Type |
Type N Female / Type 7/16 Female |
|
Polarization |
Linear |
|
Mounting |
22mm diameter tube |
|
Features |
|
|
Frequency range of 80 MHz to 1.5 GHz |
|
|
Enhanced gain over LPDA designs Equalized |
|
|
E and H plane beamwidths Patented feed |
|
|
Design provides improved high frequency |
|
|
Response Robust mechanical and feed design |
|
Additional information
| Min. Frequency (MHz) | |
|---|---|
| Max. Frequency (GHz) | 1.5 |
| VSWR | <1.5 |
| Gain (dBi) | 9 +0.8 / -1.5 dB |
| Polarization | |
| Impedance (Ω) | |
| Connector | |
| Pattern Type | Directional |
