Band pass Filter From 17.3 ~ 21.2GHz OBP-19250-3900 With SMA-Female Connectors

Band pass Filter From 17.3 ~ 21.2GHz OBP-19250-3900 With SMA-Female Connectors

Ocean Microwave band-pass filter (Ocean band-pass filter,,abbreviation:abbreviation:OBP) is a filter that allows waves of specific frequencybandto pass through while rejecting other frequency bands.
The product name of this Ocean band-pass filter (OBP) is OBP-19250-3900,its Center Frequency(F0) is 19.25GHz, its Pass Band Bandwidth is 17.3 ~ 21.2GHzits Pass Band Insertion Loss is≤1.2dB, and its PassBandVSWR is. Its Stop Band frequency is≥80dB @ DC ~ 16.5GHz≥40dB @ 16.5 ~ 16.9GHz≥40dB @ 21.6 ~ 21.9GHz≥80dB @ 21.9 ~ 35GHz

Availability: Available on backorder SKU: OBP-19250-3900 Categories: Cavity Band Pass Filter, RF Cavity Filter, RF Filters

Description

Ocean Microwave band-pass filter (Ocean band-pass filter,,abbreviation:abbreviation:OBP) is a filter that allows waves of specific frequencybandto pass through while rejecting other frequency bands.
The product name of this Ocean band-pass filter (OBP) is OBP-19250-3900,its Center Frequency(F0) is 19.25GHz, its Pass Band Bandwidth is 17.3 ~ 21.2GHz its Pass Band Insertion Loss is≤1.2dB, and its PassBandVSWR is. Its Stop Band frequency is≥80dB @ DC ~ 16.5GHz≥40dB @ 16.5 ~ 16.9GHz≥40dB @ 21.6 ~ 21.9GHz≥80dB @ 21.9 ~ 35GHz

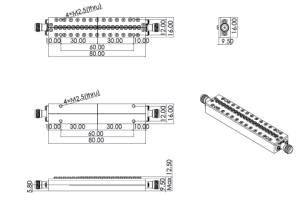

Outline

Band pass Filter From 17.3 ~ 21.2GHz OBP-19250-3900 With SMA-Female Connectors

Bandpass Filter Datasheet (Click to download)

OBP-19250-3900-1

Additional information

Center Frequency (F0) (MHz)

19250

Min. Pass Band Frequency (MHz)

17300

Max. Pass Band Frequency (MHz)

21200

Pass Band Insertion Loss (dB)

≤1.2 ≤0.75 ≥20

Stop Band Rejection

≥80dB @ DC ~ 16500MHz≥40dB @ 16500 ~ 16900MHz ≥40dB @ 21600 ~ 21900MHz≥80dB @ 21900 ~ 35000MHz

Impedance (Ω)

50

Power Handling (W)

5W Max

Connection Type

SMA-Female
