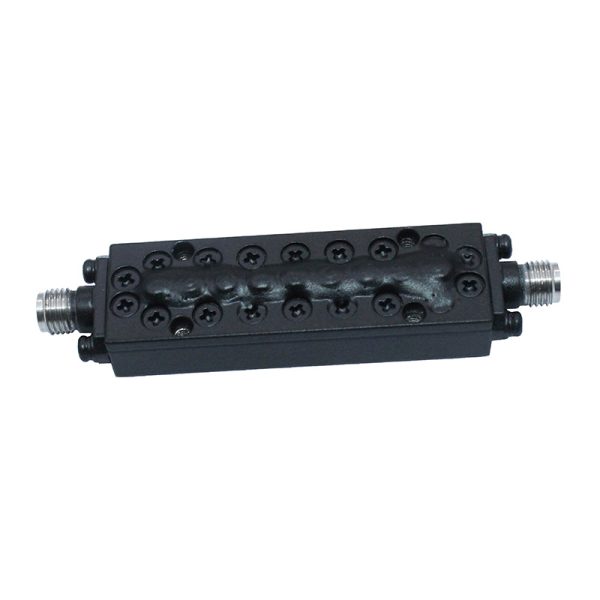

Band pass Filter From 24~26GHz OBP-250000-2000 With SMA-Female Connectors
Ocean Microwave band-pass filter (Ocean band-pass filter，，abbreviation：abbreviation：OBP) is a filter that allows waves of specific frequencybandto pass through while rejecting other frequency bands.
The product name of this Ocean band-pass filter (OBP) is OBP-250000-2000,its Center Frequency(F0) is 25GHz, its Pass Band Bandwidth is24~26GHzits Pass Band Insertion Loss is≤1.0dB, and its PassBandVSWR is≤1.3:1. Its Stop Band frequency is≥50dB @DC~23GHz
≥40dB @27~47.5GHz
- Description
- Additional information
- Reviews (0)
Description
Ocean Microwave band-pass filter (Ocean band-pass filter，，abbreviation：abbreviation：OBP) is a filter that allows waves of specific frequencybandto pass through while rejecting other frequency bands.
The product name of this Ocean band-pass filter (OBP) is OBP-250000-2000,its Center Frequency(F0) is 25GHz, its Pass Band Bandwidth is24~26GHzits Pass Band Insertion Loss is≤1.0dB, and its PassBandVSWR is≤1.3:1. Its Stop Band frequency is≥50dB @DC~23GHz
≥40dB @27~47.5GHz

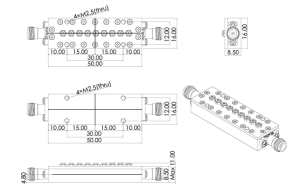

Outline
Bandpass Filter Datasheet (Click to download)
Additional information
| Center Frequency (F0) (MHz) | |
|---|---|
| Min. Pass Band Frequency (MHz) | |
| Max. Pass Band Frequency (MHz) | |
| Pass Band Insertion Loss (dB) | |
| Impedance (Ω) | |
| Power Handling (W) | |
| Connection Type |
