Band pass Filter From 37 ~40GHz OBP-38500-3000 With SMA-Female Connectors

Band pass Filter From 37 ~40GHz OBP-38500-3000 With SMA-Female Connectors

Ocean Microwave band-pass filter (Ocean band-pass filter,,abbreviation:abbreviation:OBP) is a filter that allows waves of specific frequencybandto pass through while rejecting other frequency bands.
The product name of this Ocean band-pass filter (OBP) is OBP-38500-3000,its Center Frequency(F0) is 38.5GHz, its Pass Band Bandwidth is 37 ~40GHzits Pass Band Insertion Loss is≤4.0dB≥17dB, and its PassBandVSWR is. Its Stop Band frequency is≥80dB @ F0±2000MHz (DC ~36500MHz , 40500 ~ 58500MHz)

Availability: Available on backorder SKU: OBP-38500-3000 Categories: Cavity Band Pass Filter, RF Cavity Filter, RF Filters

Description

Ocean Microwave band-pass filter (Ocean band-pass filter,,abbreviation:abbreviation:OBP) is a filter that allows waves of specific frequencybandto pass through while rejecting other frequency bands.
The product name of this Ocean band-pass filter (OBP) is OBP-38500-3000,its Center Frequency(F0) is 38.5GHz, its Pass Band Bandwidth is 37 ~40GHz its Pass Band Insertion Loss is≤4.0dB≥17dB, and its PassBandVSWR is. Its Stop Band frequency is≥80dB @ F0±2000MHz (DC ~36500MHz , 40500 ~ 58500MHz)

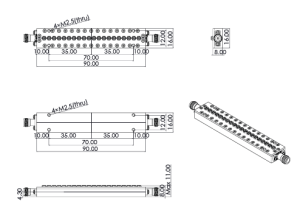

Outline

Band pass Filter From 37 ~40GHz OBP-38500-3000 With SMA-Female Connectors

Bandpass Filter Datasheet (Click to download)

OBP-38500-3000-1

Additional information

Center Frequency (F0) (MHz)

38500

Min. Pass Band Frequency (MHz)

37000

Max. Pass Band Frequency (MHz)

40000

Pass Band Insertion Loss (dB)

≤4.0 ≥17

Stop Band Rejection

≥80dB @ F0±2000MHz (DC ~ 36500MHz , 40500 ~ 58500MHz)

Impedance (Ω)

50

Power Handling (W)

5W Max

Connection Type

2.92mm(K)-Female
