Band pass Filter From 40MHz(31680~31720MHz) OBP-31700-40 With SMA-Female Connectors

Band pass Filter From 40MHz(31680~31720MHz) OBP-31700-40 With SMA-Female Connectors

Ocean Microwave band-pass filter (Ocean band-pass filter,,abbreviation:abbreviation:OBP) is a filter that allows waves of specific frequencybandto pass through while rejecting other frequency bands.
The product name of this Ocean band-pass filter (OBP) is OBP-31700-40,it’s Center Frequency(F0) is 31.7GHz, its Pass Band Bandwidth is 40MHz(31680~31720MHz) its Pass Band Insertion Loss is≤5.0dB≥15dB, and it’s Pass Band VSWR is. It’s Stop Band frequency is ≥20dB @ 0~31.6GHz≥20dB @ 31.8~41GHz

Availability: Available on backorder SKU: OBP-38500-3000-1 Categories: Cavity Band Pass Filter, RF Cavity Filter, RF Filters

Description

Ocean Microwave band-pass filter (Ocean band-pass filter,,abbreviation:abbreviation:OBP) is a filter that allows waves of specific frequencybandto pass through while rejecting other frequency bands.
The product name of this Ocean band-pass filter (OBP) is OBP-31700-40,it’s Center Frequency(F0) is 31.7GHz, its Pass Band Bandwidth is 40MHz(31680~31720MHz) its Pass Band Insertion Loss is≤5.0dB≥15dB, and it’s Pass Band VSWR is. It’s Stop Band frequency is ≥20dB @ 0~31.6GHz≥20dB @ 31.8~41GHz

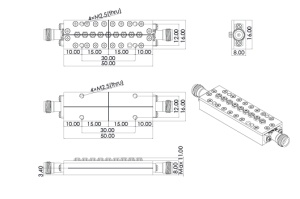

Outline

Band pass Filter From 40MHz(31680~31720MHz) OBP-31700-40 With SMA-Female Connectors

Bandpass Filter Datasheet (Click to download)

OBP-31700-40-1

Additional information

Center Frequency (F0) (MHz)

31700

Min. Pass Band Frequency (MHz)

31680

Max. Pass Band Frequency (MHz)

31720

Pass Band Insertion Loss (dB)

≤5.0 ≥15

Stop Band Rejection

≥20dB @ 0~31600MHz≥20dB @ 31800~41000MHz

Impedance (Ω)

50

Power Handling (W)

≤5

Connection Type

2.92mm(K)-Female
