Bias Tee OBT-1124-S

Bias Tee OBT-1124-S

$690

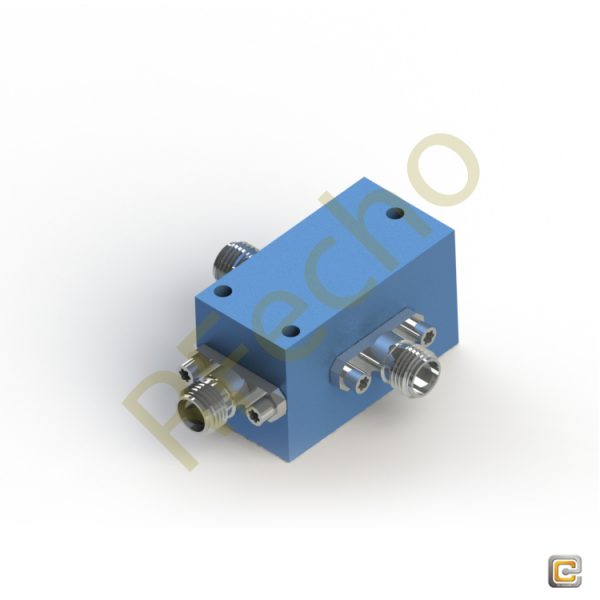

The RFecho BIAS TEES series of products range up to 12.4GHz. They have good performance in terms of reliability and ease-of-use when compared to cumbersome user-designed bias tees employing off-the-shelf conical inductors.
This series can be designed to inner-only topology andutilize our standard housings for fast turn manufacturing.
They are asuperior option for biasing amplifiers, lasers, and modulators driven withhigh frequency data patterns.

SKU: OBT-1124-S Categories: Bias Tee, Passive Devices

Description

SPEC

Bias Tee



The RFecho BIAS TEES series of products range up to 12.4GHz.They have good performance in terms of reliability and ease-of-use when compared to cumbersome user-designed bias tees employing off-the-shelf conical inductors.



This series can be designed to inner-only topology and utilize our standard housings for fast turn manufacturing.They are a superior option for biasing amplifiers, lasers, and modulators driven with high frequency data patterns.

Features

Low Insertion Loss

Non-Resonant

Compact Size

Applications

Amplifier

Modulator

  Part No.

Frequency Range

Isolation

Insertion Loss

Current

Power

Voltage

VSWR

OBT-1124-S

100 kHz – 12.4 GHz

35 dB Min

1.5 dB Max

700 mA Max

1 Watt Max

50 Vdc Max

1.60:1 Max





PDF

Additional information

Min Frequency

100kHz

Max Frequency

12.4GHz

Insertion Loss (dB), Max.

1.5

VSWR (Max.)

1.60:1
