Bandpass Passive RF Filter model OWBP-59506150-15 is V Band Waveguide Bandpass filter with a passband frequency from 59.48GHz to 61.48GHz and a rejection frequency 66.48GHz to 69.48GHz. Due to the waveguide cut off nature of Bandpass Passive RF filter, the low side of this RF filter has rejection range of 50.48 to 54.48GHz. Our V Band Waveguide Filter provides a nominal insertion loss of 2.5dB across its passband and a typical rejection of 50dB. Since the high end cutoff frequency of Bandpass Passive RF Filter can be changed by modifying the design, custom designs can be offered under different model numbers. This V Band Waveguide Filter has specification temperature of +25C. 59.48GHz to 61.48GHz Ocean Bandpass filter from RFecho is just one part in a large selection of our RF Components. Our 59.48GHz to 61.48GHz Bandpass Passive RF filter is ready for shipping worldwide after purchase. RFecho also stocks a wide array of other RF components that ship from our warehouse for all your RF components needs.

SKU: OWBP-59506150-15 Categories: Passive Devices, RF Filter Bandpass, RF Filters

Description

PDF

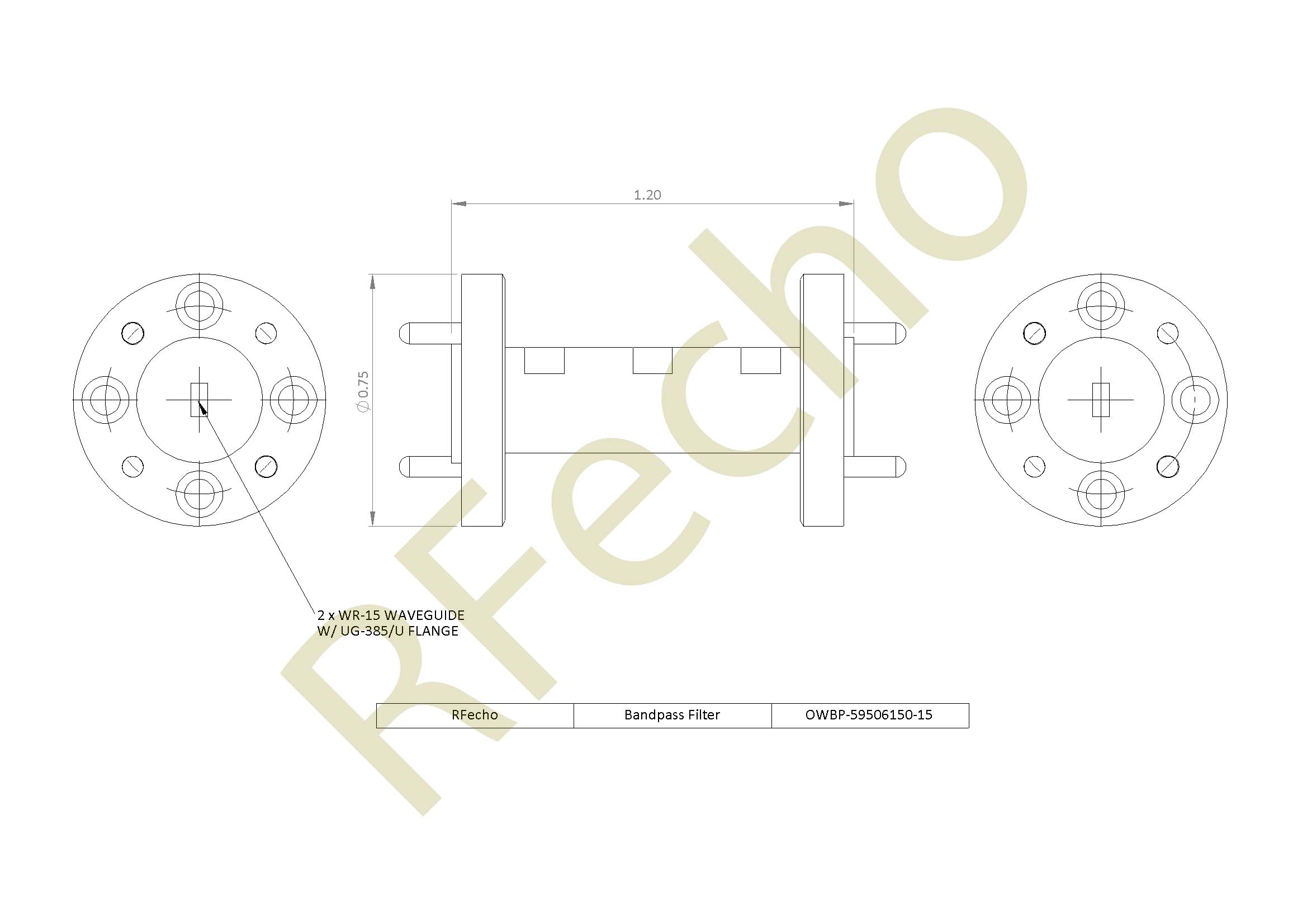

Outline

Bandpass Passive RF Filter 59.48GHz to 61.48GHz V Band Waveguide Filter Rejection Frequency 66.48GHz to 69.48GHz

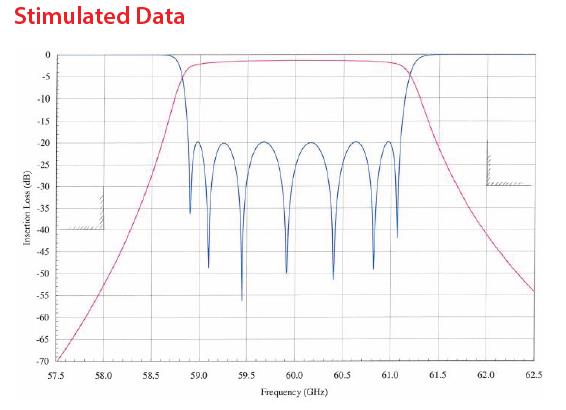

Plot

Bandpass Passive RF Filter 59.48GHz to 61.48GHz V Band Waveguide Filter Rejection Frequency 66.48GHz to 69.48GHz

Additional information

Filter Type

RF Filter Bandpass

Min Pass Band Freq. (GHz)

59.48

Max Pass Band Freq. (GHz)

61.48

Insertion Loss (dB)

2.5

Rejection (dB)

50

Max Rejection Freq. Lowside

54.48

Min Rejection Freq. Highside

66.48

Waveguide Port

WR-15
