60GHz to 62GHz V Band Waveguide Bandpass Filter Rejection Frequency 64GHz to 80GHz Microwave Bandpass Filter

60GHz to 62GHz V Band Waveguide Bandpass Filter Rejection Frequency 64GHz to 80GHz Microwave Bandpass Filter

0 out of 5

60GHz to 62Hz Microwave Bandpass Filter model OWBP-60006200-15 is V Band Waveguide Bandpass filter with a passband frequency from 60GHz to 62GHz and a rejection frequency 64GHz to 80GHz. Due to the waveguide cut off nature of V Band Waveguide Bandpass filter, the low side of this RF filter has rejection range of DC to 59GHz. Our 60GHz to 62GHz Microwave Bandpass Filter provides a nominal insertion loss of 2.5dB across its passband and a typical rejection of 30dB. Since the high end cutoff frequency of V Band waveguide Bandpass filter can be changed by modifying the design, custom designs can be offered under different model numbers. This 60GHz to 62GHz Microwave Bandpass Filter has passband return loss of 14dB and power handling of 100W.
60GHz to 62GHz Ocean Bandpass filter from RFecho is just one part in a large selection of our RF Components. Our 60GHz to 62GHz V Band Waveguide Bandpass filter is ready for shipping worldwide after purchase. RFecho also stocks a wide array of other RF components that ship from our warehouse for all your RF components needs.

SKU: OWBP-60006200-15 Categories: Passive Devices, RF Filter Bandpass, RF Filters

Description

PDF

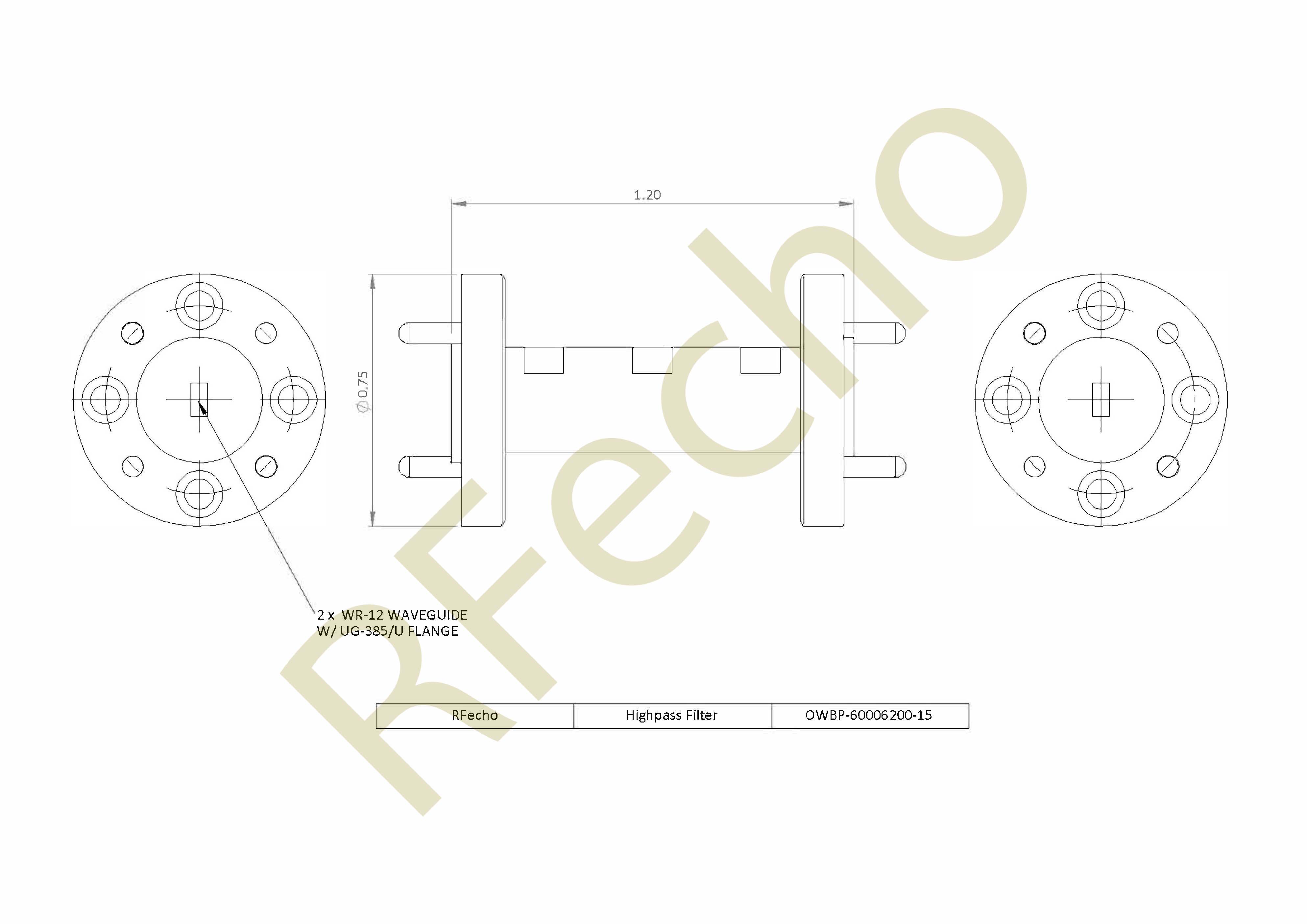

Outline

60GHz to 62GHz V Band Waveguide Bandpass Filter Rejection Frequency 64GHz to 80GHz Microwave Bandpass Filter

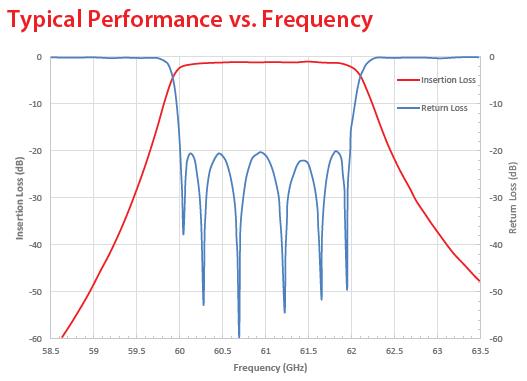

Plot

60GHz to 62GHz V Band Waveguide Bandpass Filter Rejection Frequency 64GHz to 80GHz Microwave Bandpass Filter

Additional information

Filter Type

RF Filter Bandpass

Min Pass Band Freq. (GHz)

60

Max Pass Band Freq. (GHz)

62

Insertion Loss (dB)

2.5

Rejection (dB)

30

Max Rejection Freq. Lowside

59

Min Rejection Freq. Highside

64

Waveguide Port

WR-15
