Model OWBP-61606360-15 is a V band waveguide bandpass filter with a passband frequency of 61.64 to 63.64 GHz and rejection frequencies from 52.64 to 56.64 GHz and 67.64 to 71.64 GHz.

The nominal insertion loss of the bandpass filter is 2.5 dB and the typical rejection is 50 dB. Since both low end and high end cut off frequencies can be selected by modifying the design, custom designs are available under different model numbers.

SKU: OWBP-61606360-15 Categories: Passive Devices, RF Filter Bandpass, RF Filters

Description

PDF

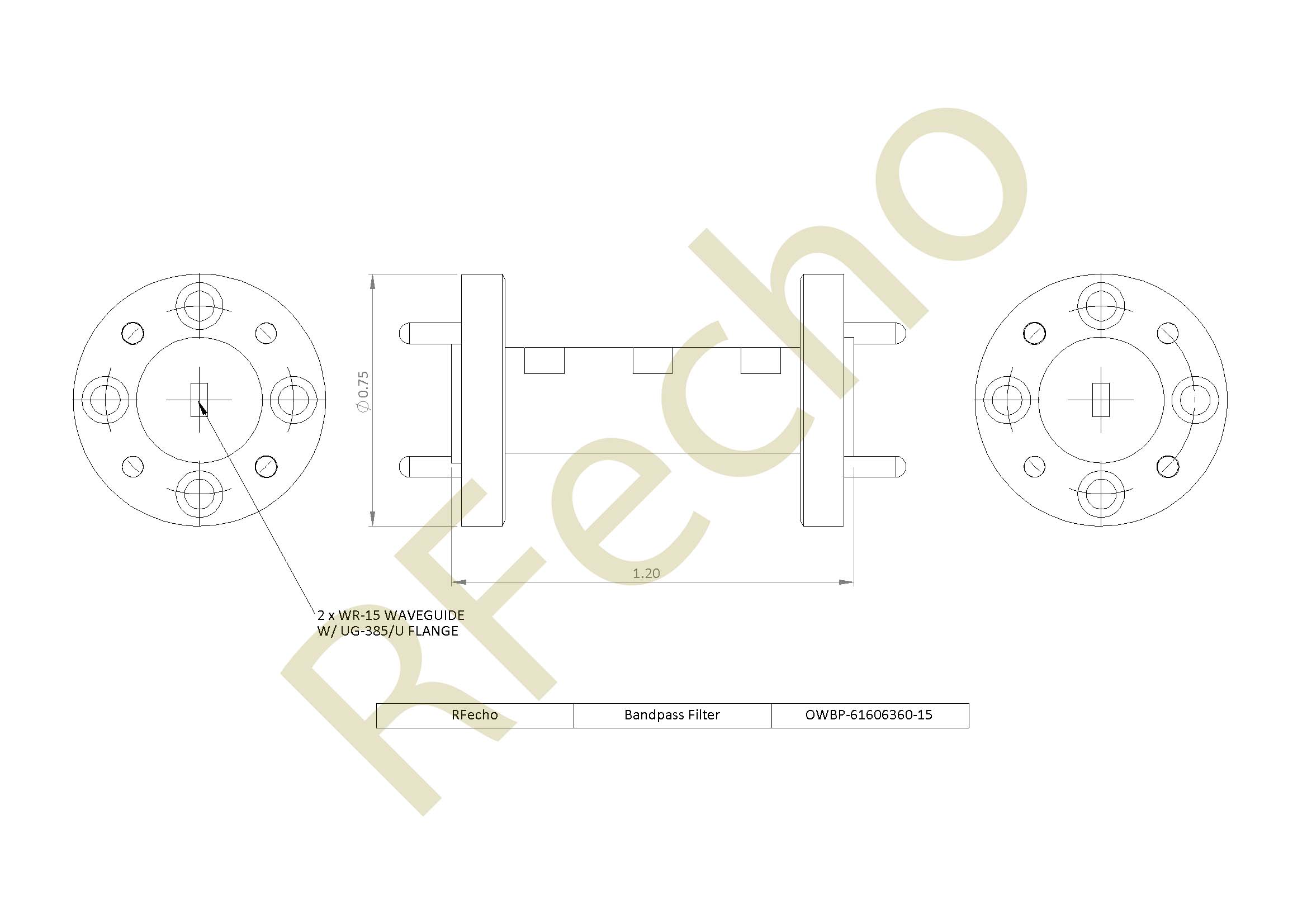

Outline

RF Filter Bandpass OWBP-61606360-15

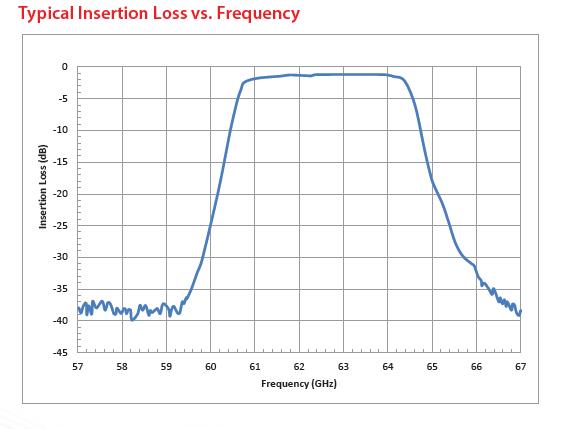

Plot

RF Filter Bandpass OWBP-61606360-15

Additional information

Filter Type

RF Filter Bandpass

Min Pass Band Freq. (GHz)

61.64

Max Pass Band Freq. (GHz)

63.64

Insertion Loss (dB)

2.5

Rejection (dB)

50

Max Rejection Freq. Lowside

56.64

Min Rejection Freq. Highside

67.64

Waveguide Port

WR-15
