Waveguide Bandpass Microwave Filter 61.70GHz to 62.70GHz Bandpass Microwave Passive Filter Rejection Frequency 65GHz to 80GHz

Waveguide Bandpass Microwave Filter 61.70GHz to 62.70GHz Bandpass Microwave Passive Filter Rejection Frequency 65GHz to 80GHz

0 out of 5

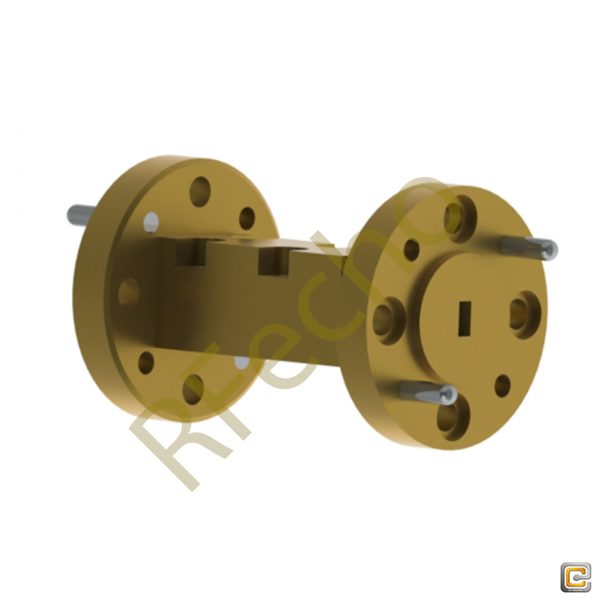

Waveguide Bandpass Microwave Filter model OWBP-61706270-15 is V Band Waveguide Bandpass filter with a passband frequency from 61.70GHz to 62.70GHz and a rejection frequency 65GHz to 80GHz. Due to the waveguide cut off nature of Waveguide Bandpass Microwave filter, the low side of this RF filter has rejection range of DC to 60GHz. Our Bandpass Microwave Passive Filter provides a nominal insertion loss of 2.0dB across its passband and a typical rejection of 40dB. Since the high end cutoff frequency of Waveguide Bandpass Microwave Filter can be changed by modifying the design, custom designs can be offered under different model numbers. This Bandpass Microwave Passive Filter has specification temperature of +25C. 61.70GHz to 62.70GHz Ocean Bandpass filter from RFecho is just one part in a large selection of our RF Components. Our 61.70GHz to 62.70GHz Waveguide Bandpass Microwave filter is ready for shipping worldwide after purchase. RFecho also stocks a wide array of other RF components that ship from our warehouse for all your RF components needs.

SKU: OWBP-61706270-15 Categories: Passive Devices, RF Filter Bandpass, RF Filters

Description

PDF

Outline

Waveguide Bandpass Microwave Filter 61.70GHz to 62.70GHz Bandpass Microwave Passive Filter Rejection Frequency 65GHz to 80GHz

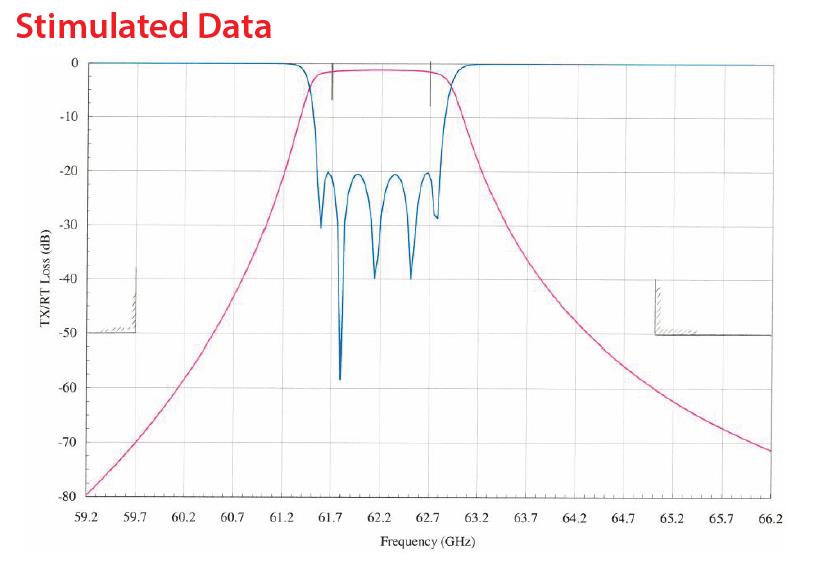

Plot

Waveguide Bandpass Microwave Filter 61.70GHz to 62.70GHz Bandpass Microwave Passive Filter Rejection Frequency 65GHz to 80GHz

Additional information

Filter Type

RF Filter Bandpass

Min Pass Band Freq. (GHz)

61.7

Max Pass Band Freq. (GHz)

62.7

Insertion Loss (dB)

2

Rejection (dB)

40

Max Rejection Freq. Lowside

60

Min Rejection Freq. Highside

65

Waveguide Port

WR-15
