63GHz to 67GHz Passive Bandpass Filter Rejection Frequency 73GHz to 95GHz E Band Waveguide Bandpass Filter

63GHz to 67GHz Passive Bandpass Filter Rejection Frequency 73GHz to 95GHz E Band Waveguide Bandpass Filter

0 out of 5

63GHz to 67GHz Passive Bandpass Filter model OWBP-63006700-12 is E Band Waveguide Bandpass filter with a passband frequency from 63GHz to 67GHz and a rejection frequency 73GHz to 95GHz. Due to the waveguide cut off nature of E Band Waveguide Bandpass filter, the low side of this RF filter has rejection range of DC to 57GHz. Our 63GHz to 67GHz Passive Bandpass Filter provides a nominal insertion loss of 2.0 to 2.5dB across its passband and a typical rejection of 40dB. Since the high end cutoff frequency of E Band Waveguide Bandpass filter can be changed by modifying the design, custom designs can be offered under different model numbers. This 63GHz to 67GHz Passive Bandpass Filter has VSWR 1.5:1 and operating temperature of -40C to -85C.
63GHz to 67GHz Ocean Bandpass filter from RFecho is just one part in a large selection of our RF Components. Our 63GHz to 67GHz Passive Bandpass filter is ready for shipping worldwide after purchase. RFecho also stocks a wide array of other RF components that ship from our warehouse for all your RF components needs.

SKU: OWBP-63006700-12 Categories: Passive Devices, RF Filter Bandpass, RF Filters

Description

PDF

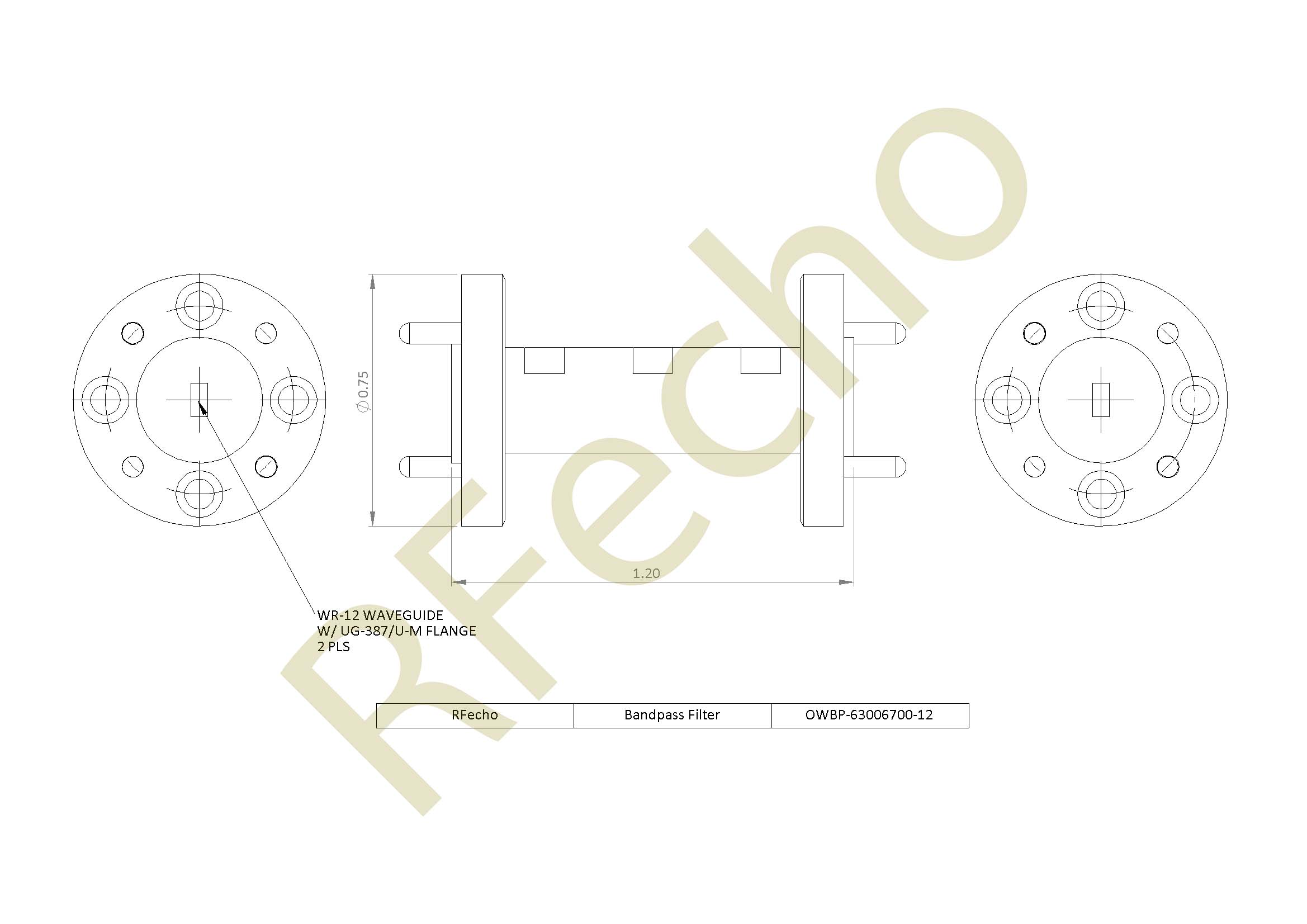

Outline

63GHz to 67GHz Passive Bandpass Filter Rejection Frequency 73GHz to 95GHz E Band Waveguide Bandpass Filter

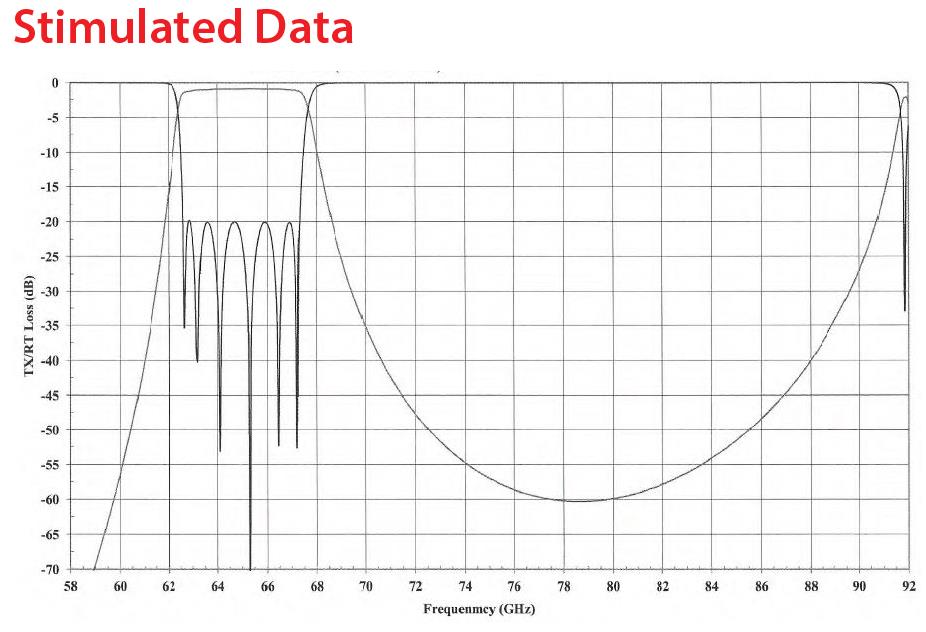

Plot

63GHz to 67GHz Passive Bandpass Filter Rejection Frequency 73GHz to 95GHz E Band Waveguide Bandpass Filter

Additional information

Filter Type

RF Filter Bandpass

Min Pass Band Freq. (GHz)

63

Max Pass Band Freq. (GHz)

67

Insertion Loss (dB)

2.0-2.5

Rejection (dB)

40

Max Rejection Freq. Lowside

57

Min Rejection Freq. Highside

73

Waveguide Port

WR-12
