71GHz to 76GHz RF Microwave Bandpass Filter Rejection Frequency 81GHz to 105GHz W Band RF Waveguide Bandpass Filter

71GHz to 76GHz RF Microwave Bandpass Filter Rejection Frequency 81GHz to 105GHz W Band RF Waveguide Bandpass Filter

0 out of 5

71GHz to 76GHz RF RF Microwave Bandpass Filter model OWBP-71007600-10 is W Band Waveguide Bandpass filter with a passband frequency from 71GHz to 76GHz and a rejection frequency 81GHz to 105GHz. Due to the waveguide cut off nature of W Band Waveguide filter, the low side of this RF filter has rejection range of DC to 67GHz. Our 71GHz to 76GHz RF Microwave Bandpass Filter provides a nominal insertion loss of 2.0 to 2.5dB across its passband and a typical rejection of 40-45dB. Since the high end cutoff frequency of W Band RF waveguide filter can be changed by modifying the design, custom designs can be offered under different model numbers. This 71GHz to 76GHz RF Passive Bandpass Filter has Passband return loss of 14dB and power handling of 10W.
71GHz to 76GHz Ocean Bandpass filter from RFecho is just one part in a large selection of our RF Components. Our 71GHz to 76GHz RF Microwave Bandpass filter is ready for shipping worldwide after purchase. RFecho also stocks a wide array of other RF components that ship from our warehouse for all your RF components needs.

SKU: OWBP-71007600-10 Categories: Passive Devices, RF Filter Bandpass, RF Filters

Description

PDF

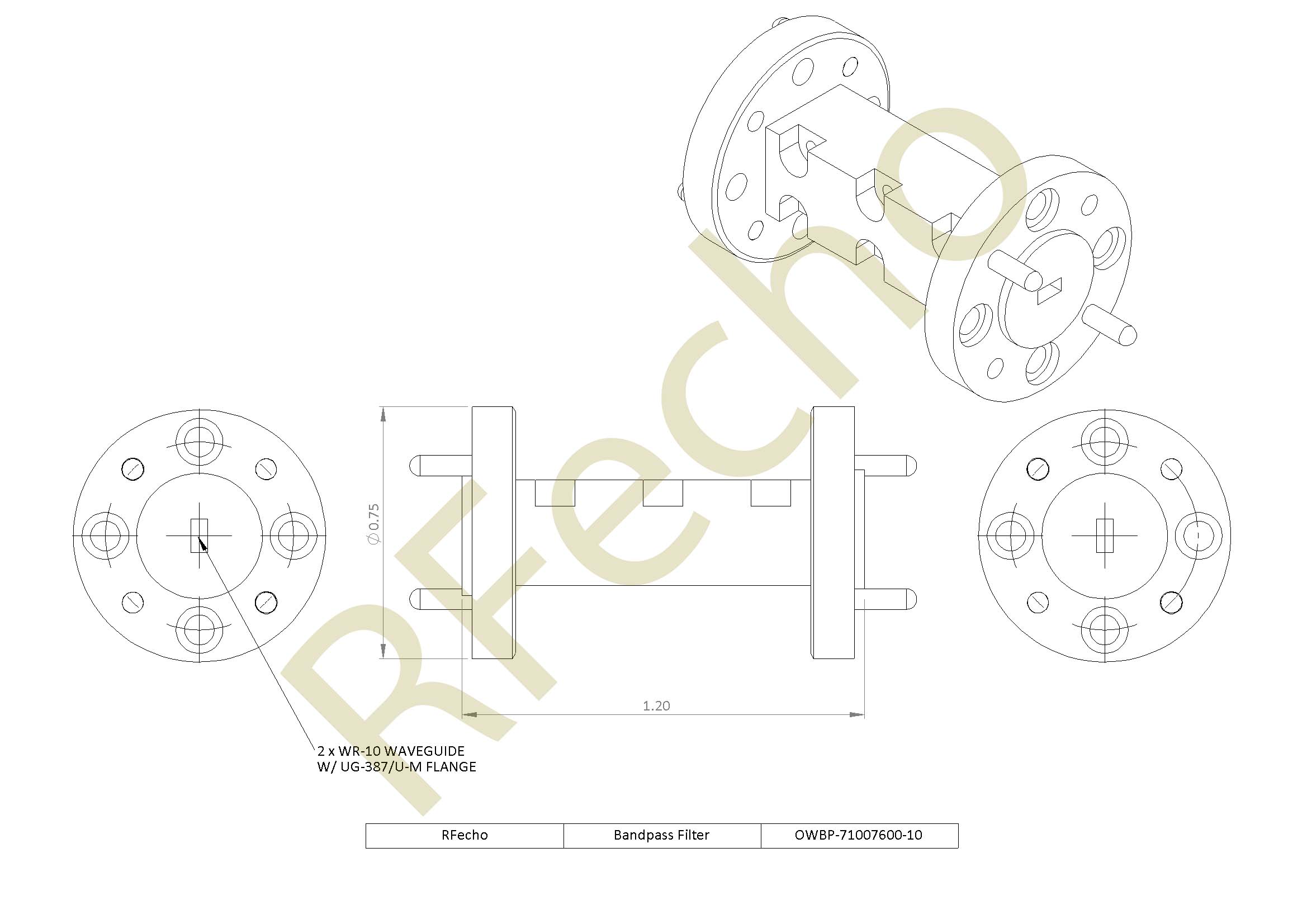

Outline

71GHz to 76GHz RF Microwave Bandpass Filter Rejection Frequency 81GHz to 105GHz W Band RF Waveguide Bandpass Filter

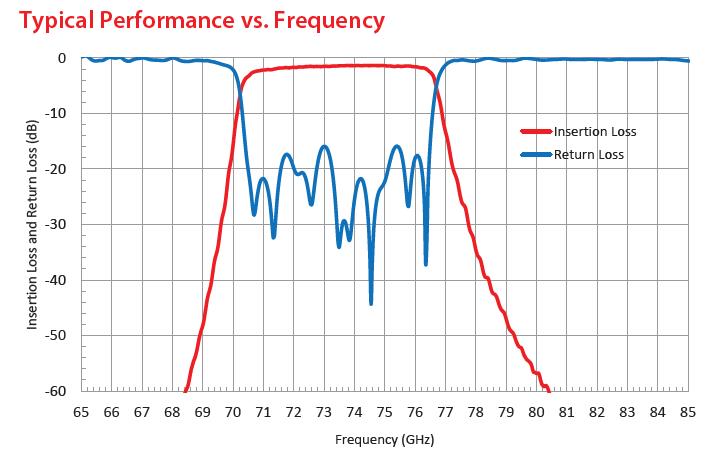

Plot

71GHz to 76GHz RF Microwave Bandpass Filter Rejection Frequency 81GHz to 105GHz W Band RF Waveguide Bandpass Filter

Additional information

Filter Type

RF Filter Bandpass

Min Pass Band Freq. (GHz)

71

Max Pass Band Freq. (GHz)

76

Insertion Loss (dB)

2.0-2.5

Rejection (dB)

40-50

Max Rejection Freq. Lowside

67

Min Rejection Freq. Highside

81

Waveguide Port

WR-10
