75GHz to 78GHz Waveguide Passive Bandpass Filter Rejection Frequency 82GHz to 100GHz RF Bandpass Filter

75GHz to 78GHz Waveguide Passive Bandpass Filter Rejection Frequency 82GHz to 100GHz RF Bandpass Filter

0 out of 5

75GHz to 78Hz Waveguide Passive Bandpass Filter model OWBP-75007800-12 is E Band Waveguide Bandpass filter with a passband frequency from 75GHz to 78GHz and a rejection frequency 82GHz to 100GHz. Due to the waveguide cut off nature of RF Bandpass filter, the low side of this RF filter has rejection range of DC to 71GHz. Our 75GHz to 78GHz Waveguide Passive Bandpass Filter provides a nominal insertion loss of 1.5 to 2.0dB across its passband and a typical rejection of 50dB. Since the high end cutoff frequency of RF Bandpass Filter can be changed by modifying the design, custom designs can be offered under different model numbers. This 75GHz to 78GHz Waveguide Passive Bandpass Filter has VSWR of 1.5:1 and Specification temperature of +25C. 75GHz to 78GHz Ocean Bandpass filter from RFecho is just one part in a large selection of our RF Components. Our 75GHz to 78GHz Waveguide Passive Bandpass filter is ready for shipping worldwide after purchase. RFecho also stocks a wide array of other RF components that ship from our warehouse for all your RF components needs.

SKU: OWBP-75007800-12 Categories: Passive Devices, RF Filter Bandpass, RF Filters

Description

PDF

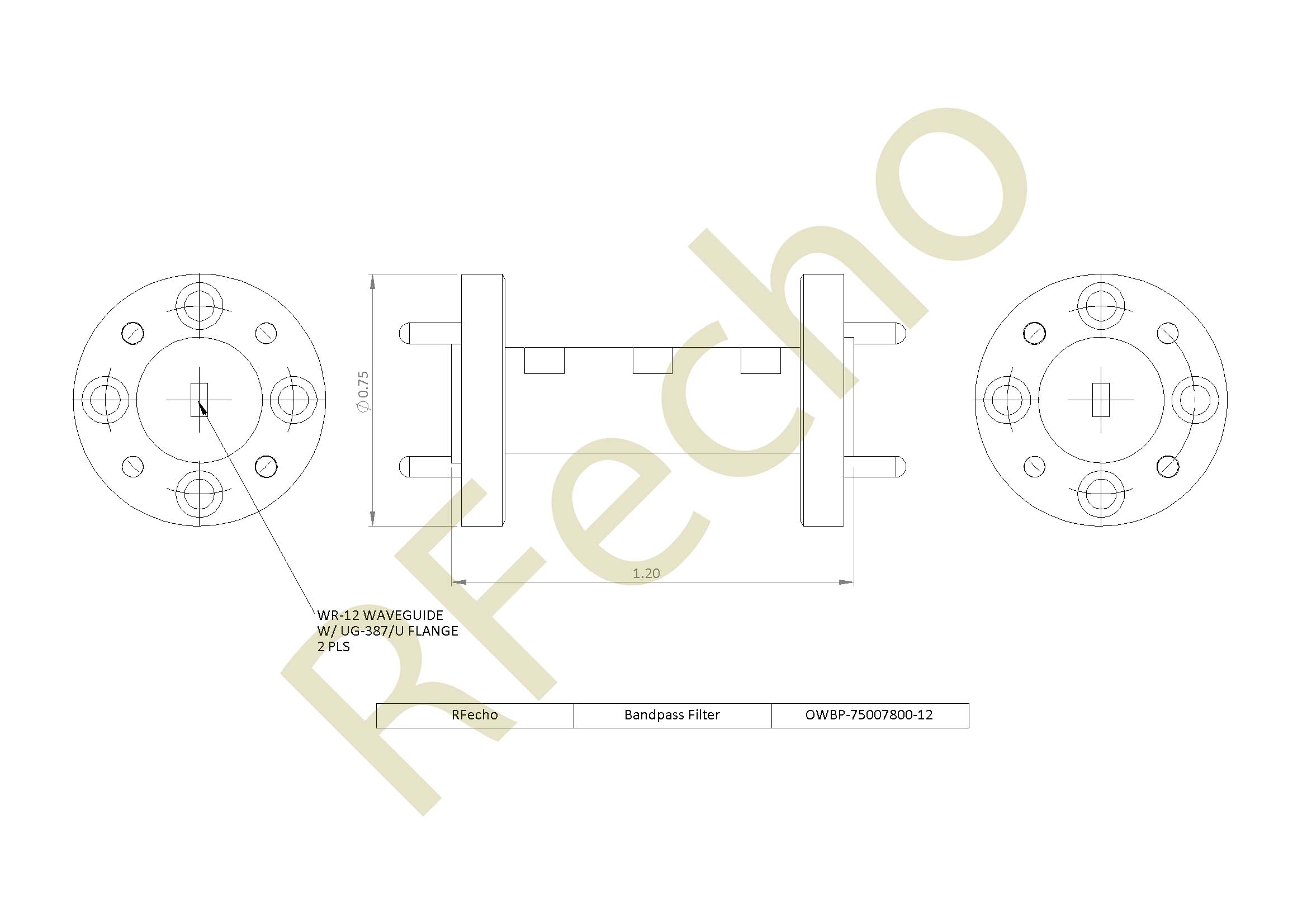

Outline

75GHz to 78GHz Waveguide Passive Bandpass Filter Rejection Frequency 82GHz to 100GHz RF Bandpass Filter

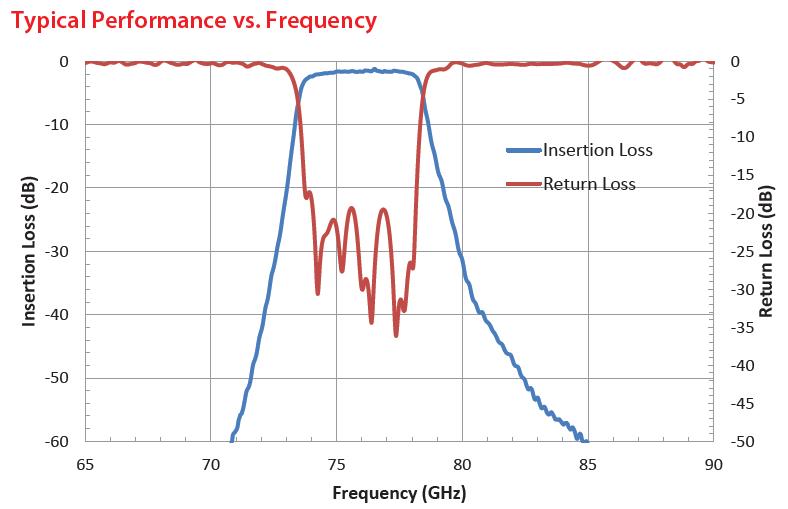

Plot

75GHz to 78GHz Waveguide Passive Bandpass Filter Rejection Frequency 82GHz to 100GHz RF Bandpass Filter

Additional information

Filter Type

RF Filter Bandpass

Min Pass Band Freq. (GHz)

75

Max Pass Band Freq. (GHz)

78

Insertion Loss (dB)

1.5-2.5

Rejection (dB)

50

Max Rejection Freq. Lowside

71

Min Rejection Freq. Highside

82

Waveguide Port

WR-12
